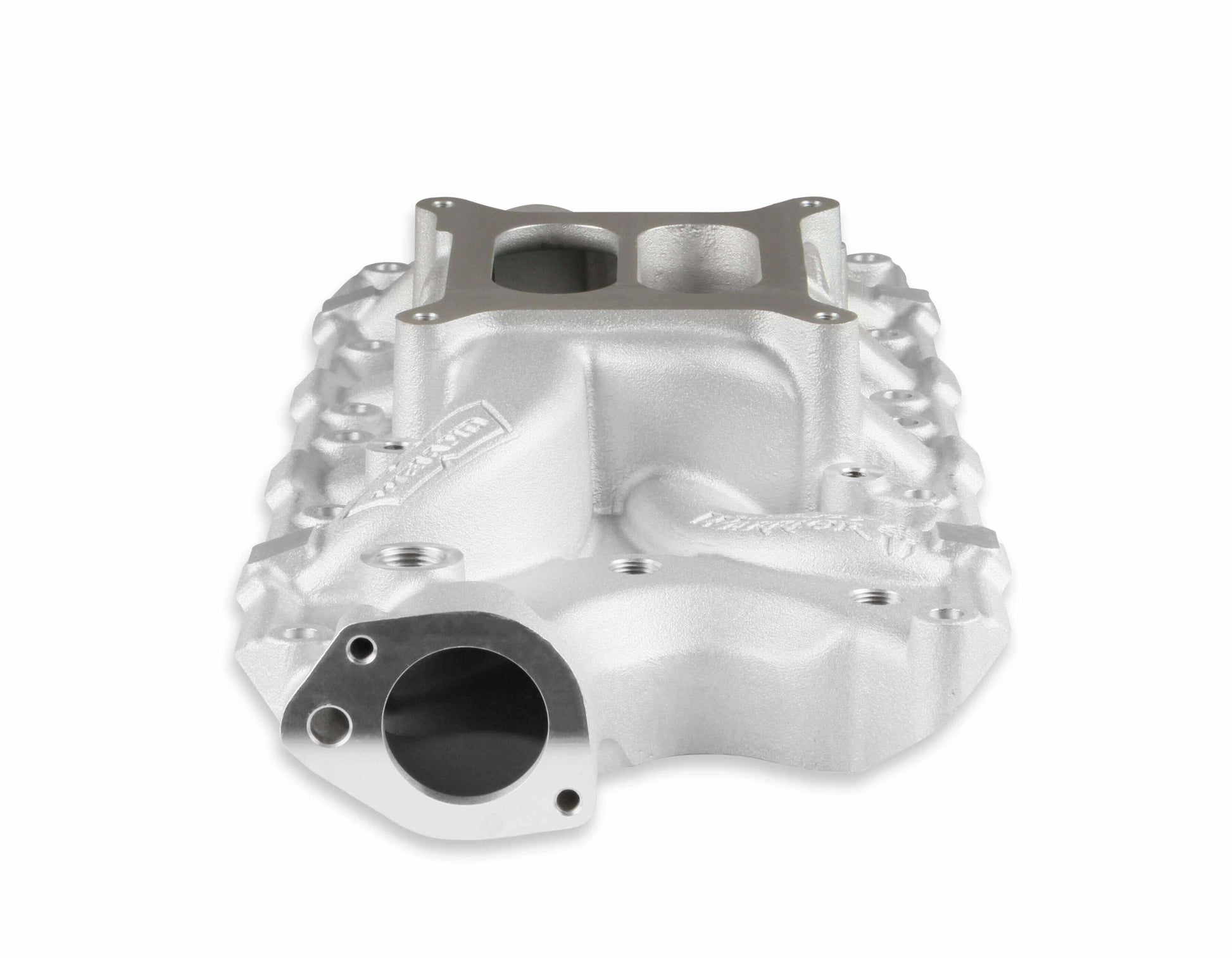

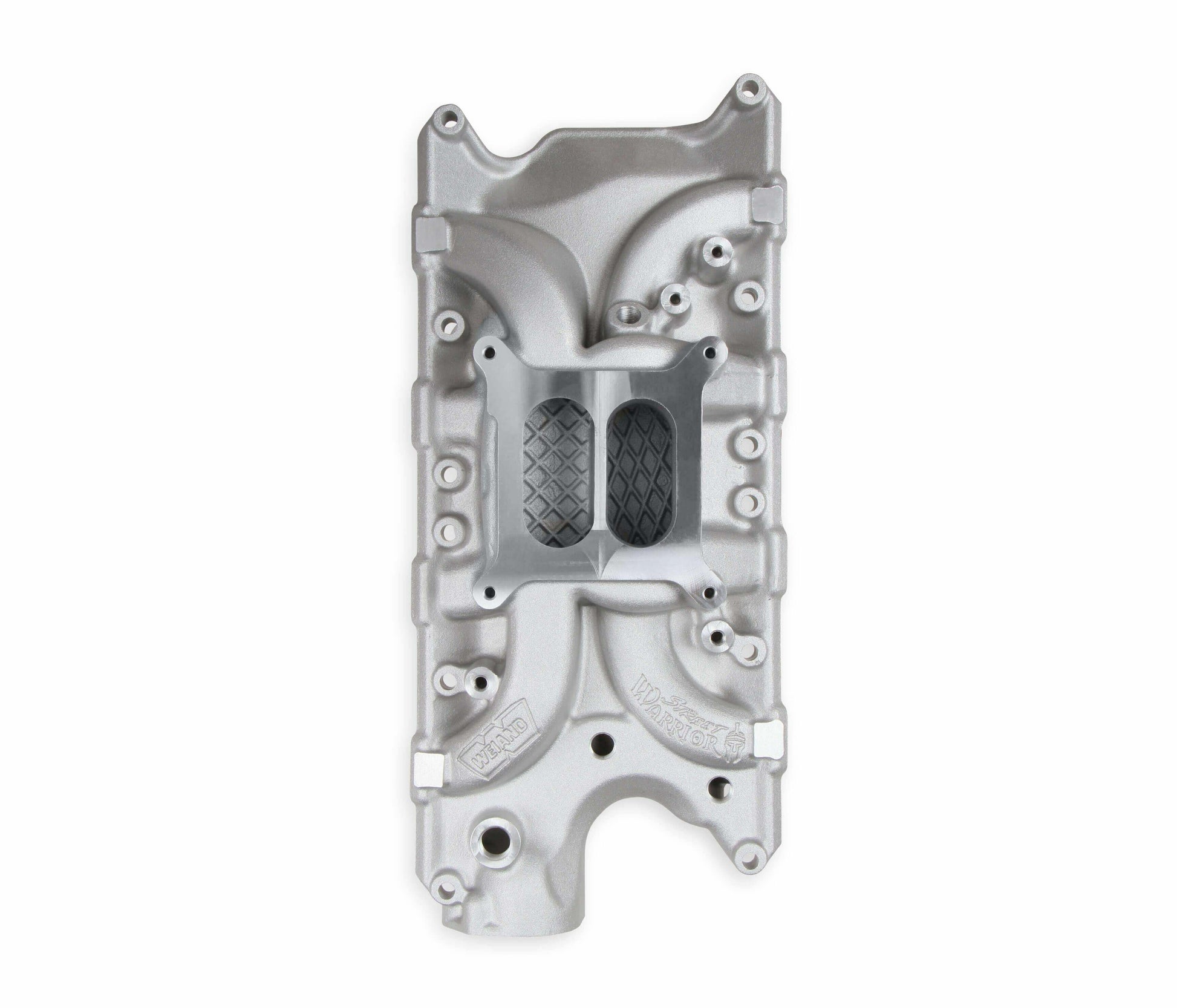

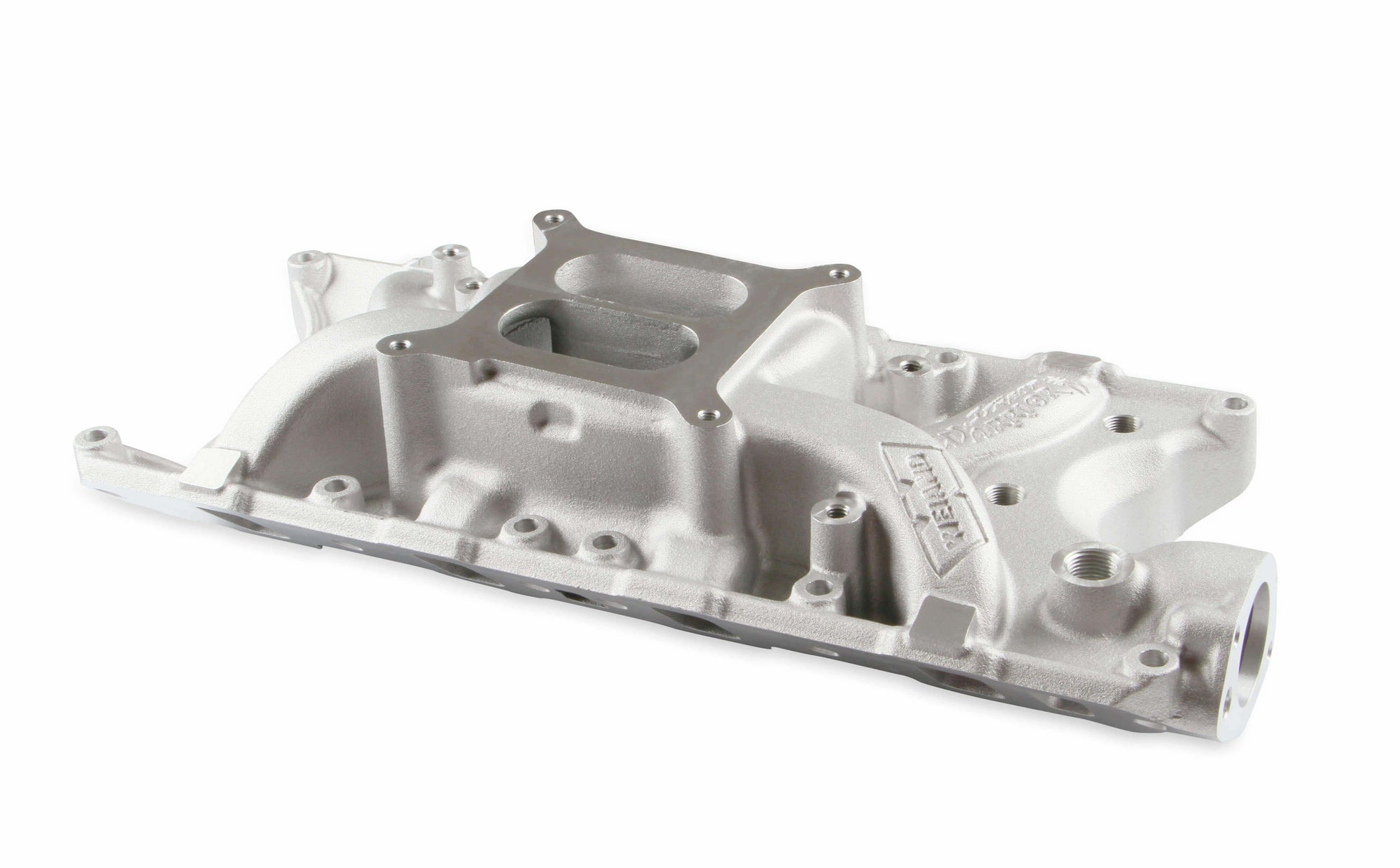

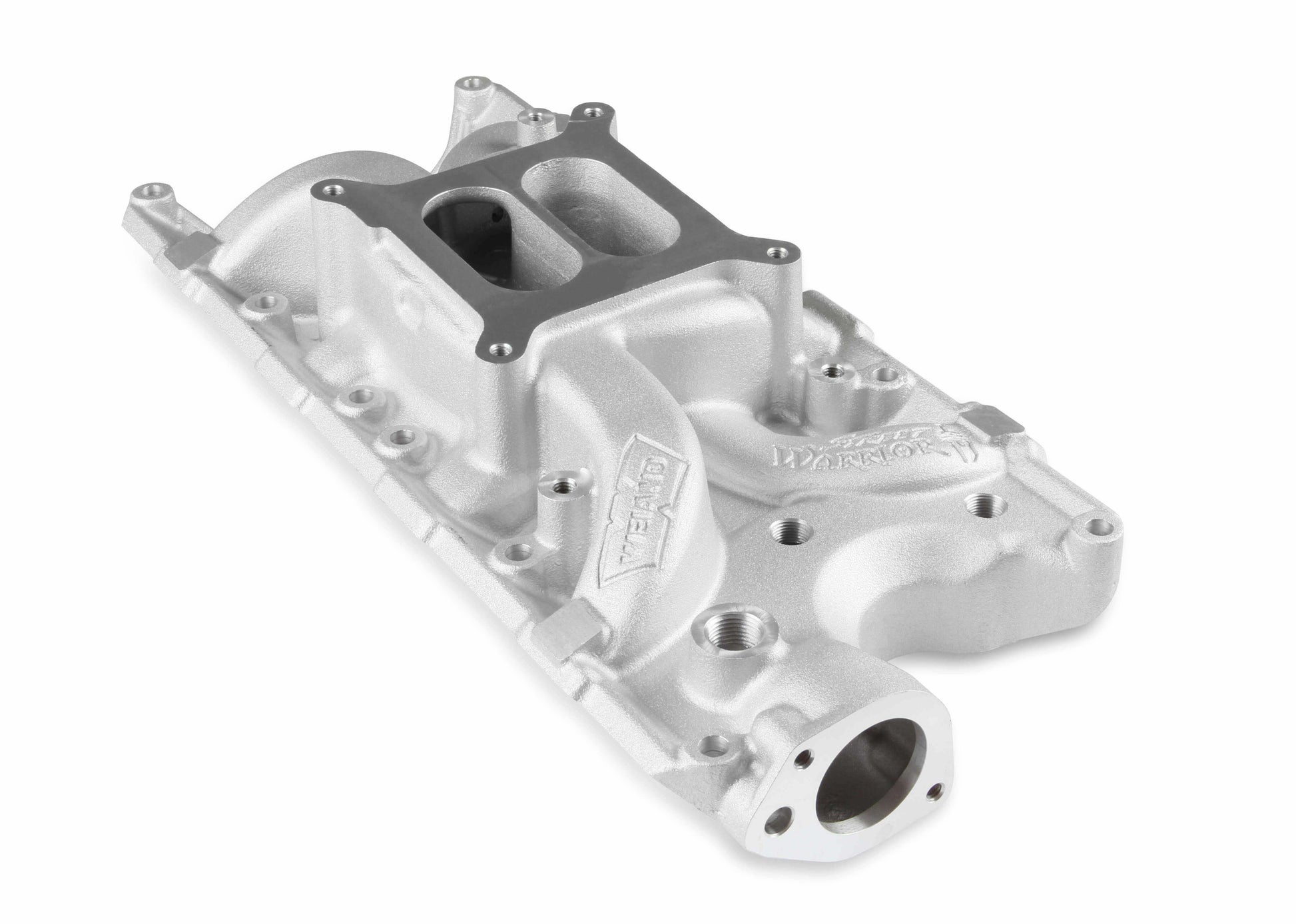

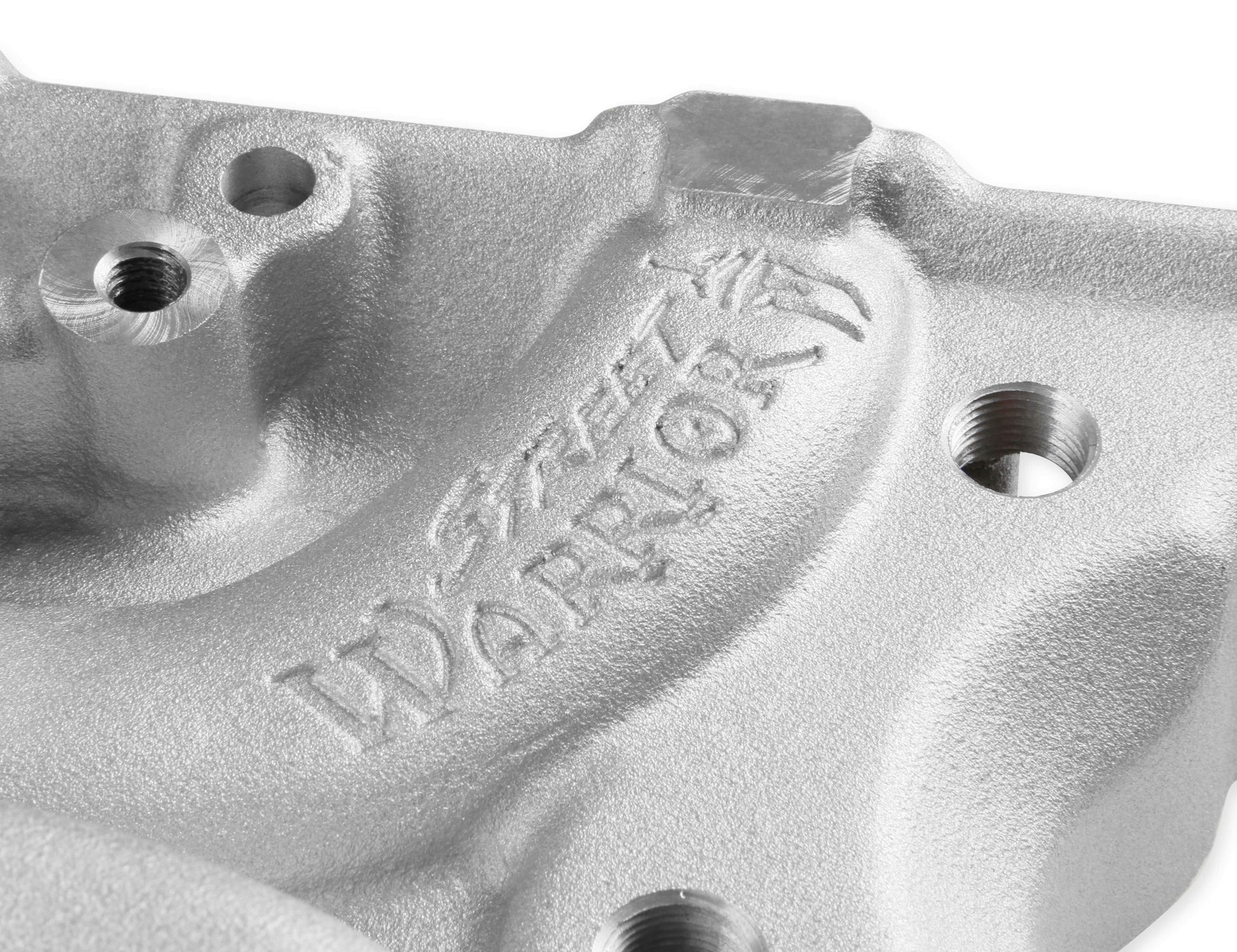

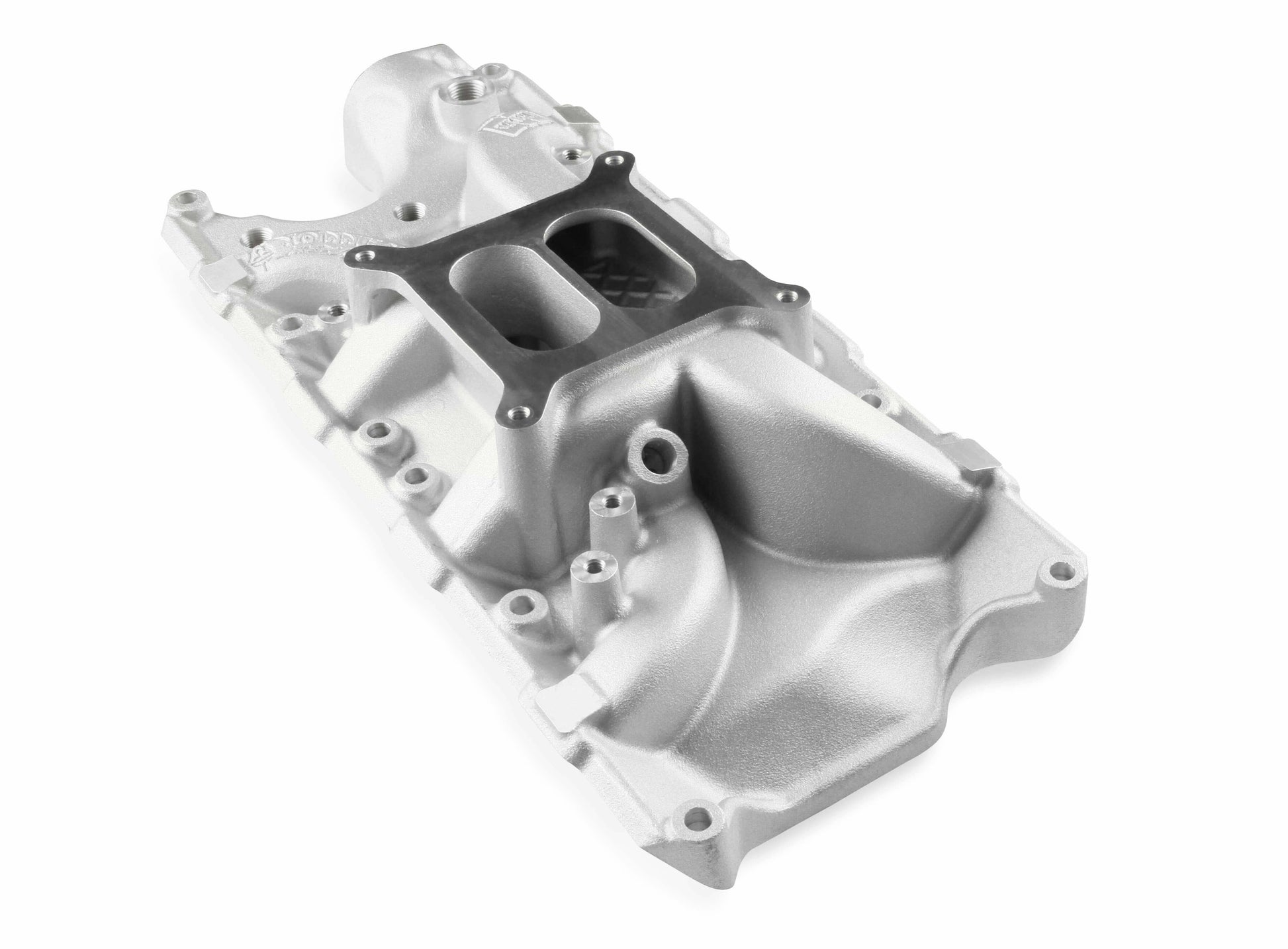

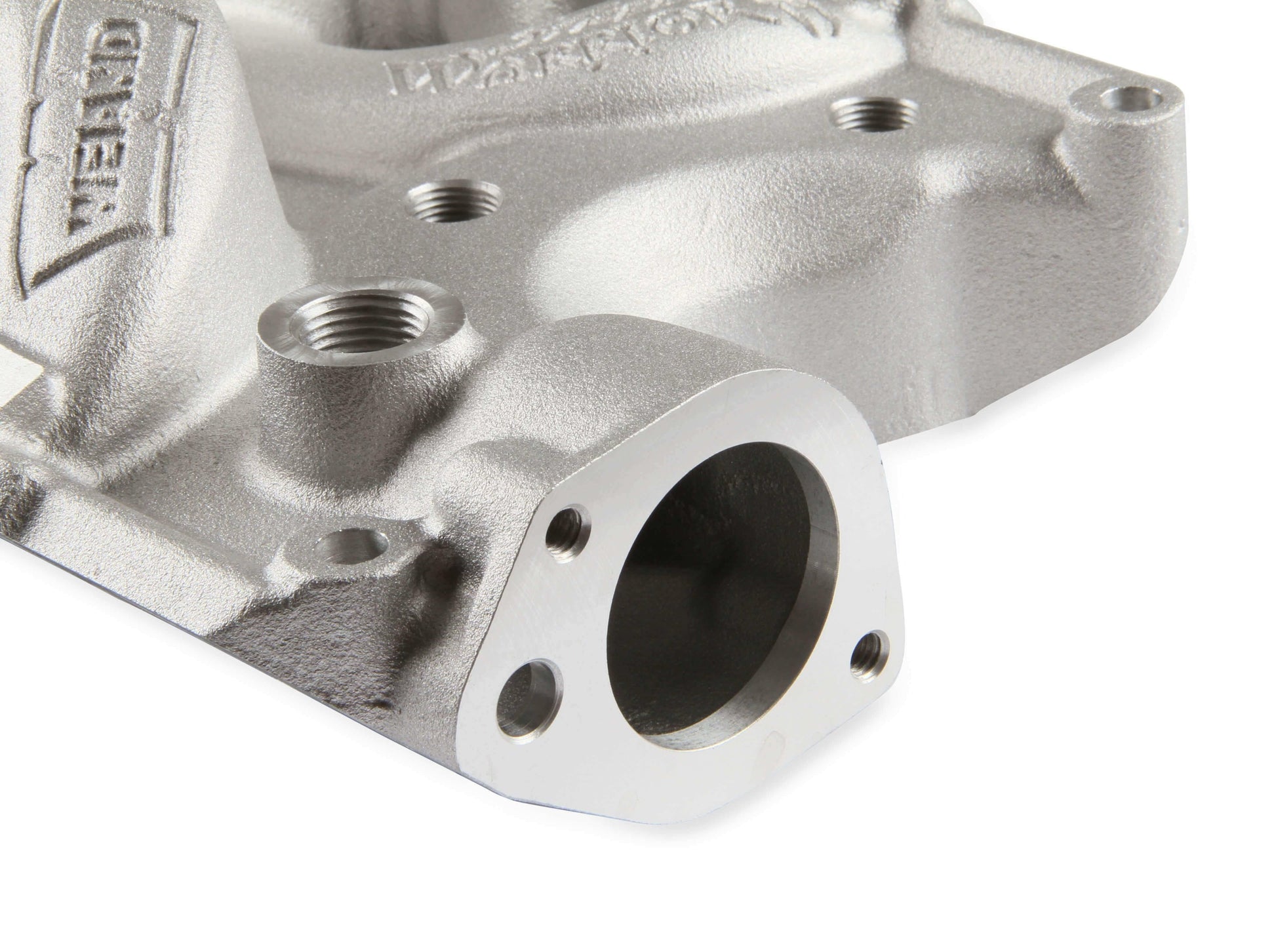

Weiand Street Warrior Intake Manifold - Ford Small Block V8 - 8124WND
Weiand Street Warrior Intake Manifold - Ford Small Block V8 - 8124WND
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Overview:
Looking for the ultimate in a high-performance street intake manifold?
A lot has changed in the performance world since the time many of the intake manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for intake manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ intake manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines.
Dyno testing of the new Weiand 8124 intake manifold found an additional 14 peak HP and 13lb/ft torque over brand E - p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers.
Features:

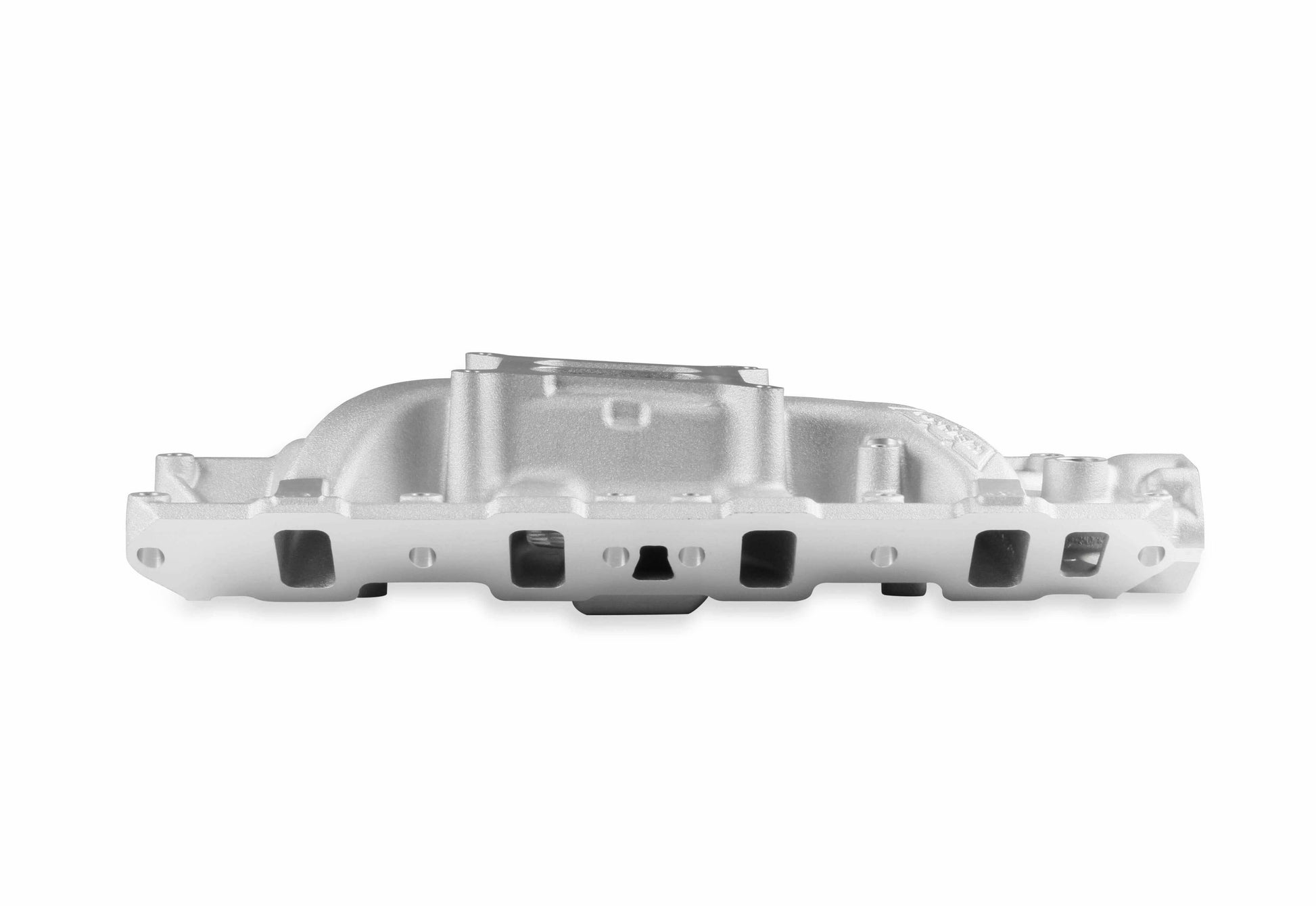

- Port Size: 1.82” height 1.02" width
- Height: Front 3.82", Rear 4.75"
- Power band: Idle-5500 RPM
- Exhaust crossover for improved street drivability
- Permanent mold casting process for lighter, smoother & better looks
- Square Bore Carburetor Mounting Flange
- Low Rise Dual Plane Design builds maximum torque for street performance engines
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1964 - 1967 | Ford | Falcon | 289/4.7L V8 | |
| 1983 - 1991 | Mercury | Grand Marquis | 302/5L V8 | |
| 1968 - 1993 | Mercury | Cougar | 302/5L V8 | |
| 1985 - 1996 | Ford | E-150 Econoline Club Wagon | 302/5L V8 | |
| 1984 - 1992 | Lincoln | Mark VII | 302/5L V8 | |
| 1980 - 1987 | Lincoln | Continental | 302/5L V8 | |
| 1987 - 1991 | Mercury | Colony Park | 302/5L V8 | |
| 1985 - 1996 | Ford | E-150 Econoline | 302/5L V8 | |
| 1980 - 1983 | Lincoln | Mark VI | 302/5L V8 | |
| 1964 - 1967 | Mercury | Comet | 289/4.7L V8 | |
| 1987 - 1991 | Ford | LTD Crown Victoria | 302/5L V8 | |
| 1963 - 1967 | Ford | Fairlane | 289/4.7L V8 | |
| 1981 - 1990 | Lincoln | Town Car | 302/5L V8 | |
| 1985 - 1996 | Ford | F-250 | 302/5L V8 | |
| 1964 - 1967 | Ford | Galaxie | 289/4.7L V8 | |
| 1985 - 1991 | Ford | E-250 Econoline | 302/5L V8 | |
| 1983 - 1986 | Ford | LTD | 302/5L V8 | |
| 1985 - 1996 | Ford | Bronco | 302/5L V8 | |
| 1964 - 1967 | Ford | Country Squire | 289/4.7L V8 | |
| 1964 - 1967 | Mercury | Cyclone | 289/4.7L V8 | |
| 1965 - 1967 | Ford | Custom | 289/4.7L V8 | |
| 1964 - 1967 | Mercury | Caliente | 289/4.7L V8 | |
| 1968 - 1995 | Ford | Mustang | 302/5L V8 | |
| 1964 - 1967 | Ford | Country Sedan | 289/4.7L V8 | |
| 1987 - 1991 | Ford | Country Squire | 302/5L V8 | |
| 1984 - 1986 | Mercury | Capri | 302/5L V8 | |
| 1968 | Mercury | Comet | 302/5L V8 | |
| 1964 - 1967 | Mercury | Villager | 289/4.7L V8 | |
| 1985 - 1996 | Ford | F-150 | 302/5L V8 | |
| 1996 - 2001 | Ford | Explorer | 302/5L V8 | |
| 1997 - 2001 | Mercury | Mountaineer | 302/5L V8 | |
| 1964 - 1967 | Ford | Mustang | 289/4.7L V8 | |
| 1968 | Mercury | Montego | 302/5L V8 | |
| 1964 - 1967 | Ford | Ranch Wagon | 289/4.7L V8 | |
| 1968 | Mercury | Cyclone | 302/5L V8 | |
| 1967 | Mercury | Cougar | 289/4.7L V8 | |
| 1965 - 1967 | Ford | Ranchero | 289/4.7L V8 | |
| 1983 - 1993 | Ford | Thunderbird | 302/5L V8 | |
| 1965 - 1967 | Ford | LTD | 289/4.7L V8 | |
| 1968 | Ford | Falcon | 302/5L V8 | |
| 1965 | Ford | Falcon Sedan Delivery | 289/4.7L V8 | |
| 1966 - 1967 | Mercury | Voyager | 289/4.7L V8 |
Specs:
| Barrels | 4 |
|---|---|
| Brand | Weiand |
| Construction | Cast |
| Emission Code | 3 |
| Engine | Ford Small Block V8 |
| Finish | Satin |
| Front Height | 3.82 inch |
| Fuel System Type | Carb |
| Manifold Type | Low Rise |
| Product Type | Intake Manifold |
| Rear Height | 4.75 inch |
| RPM Power Band | Idle-5500 |
| Warranty | Limited 90 Day |
