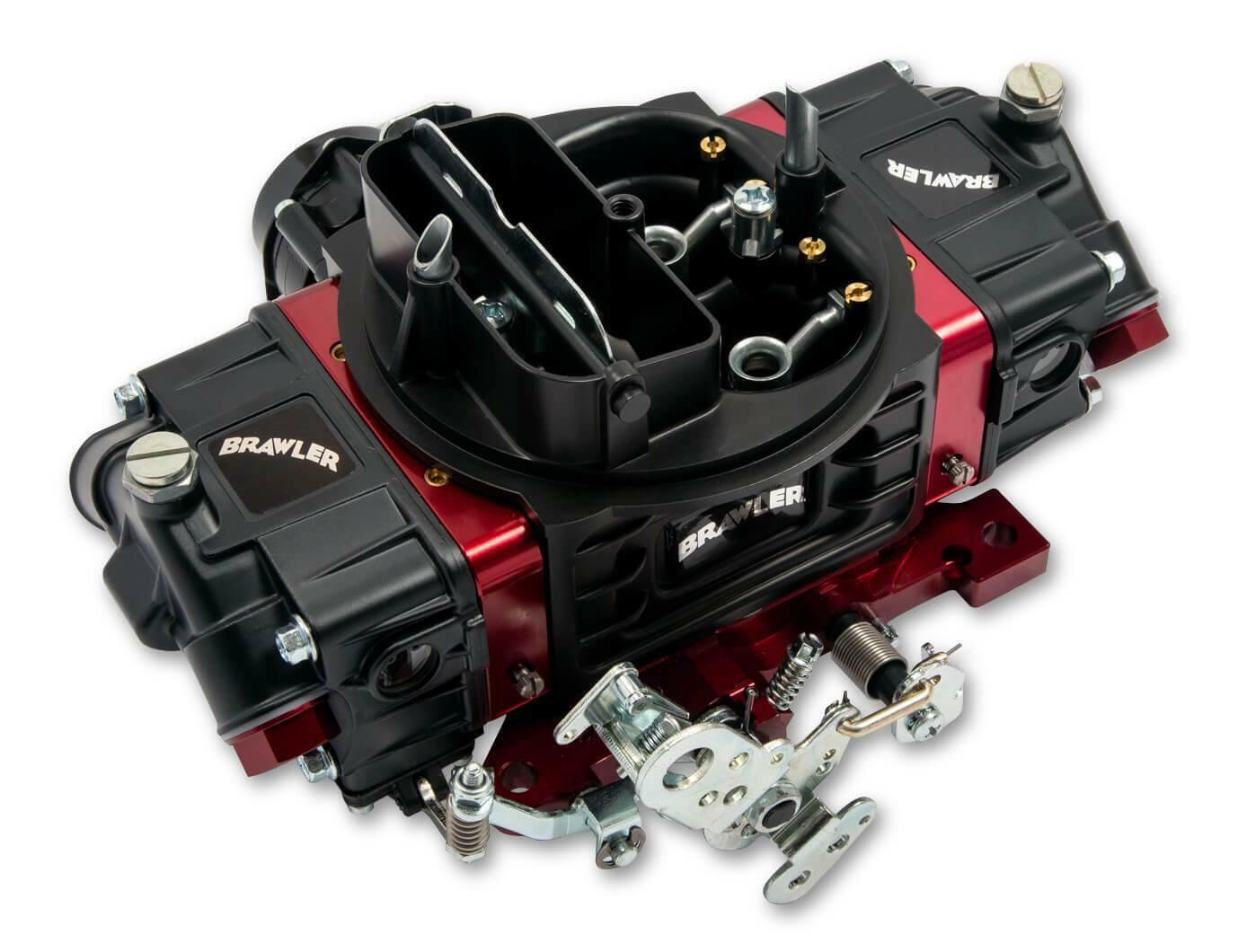

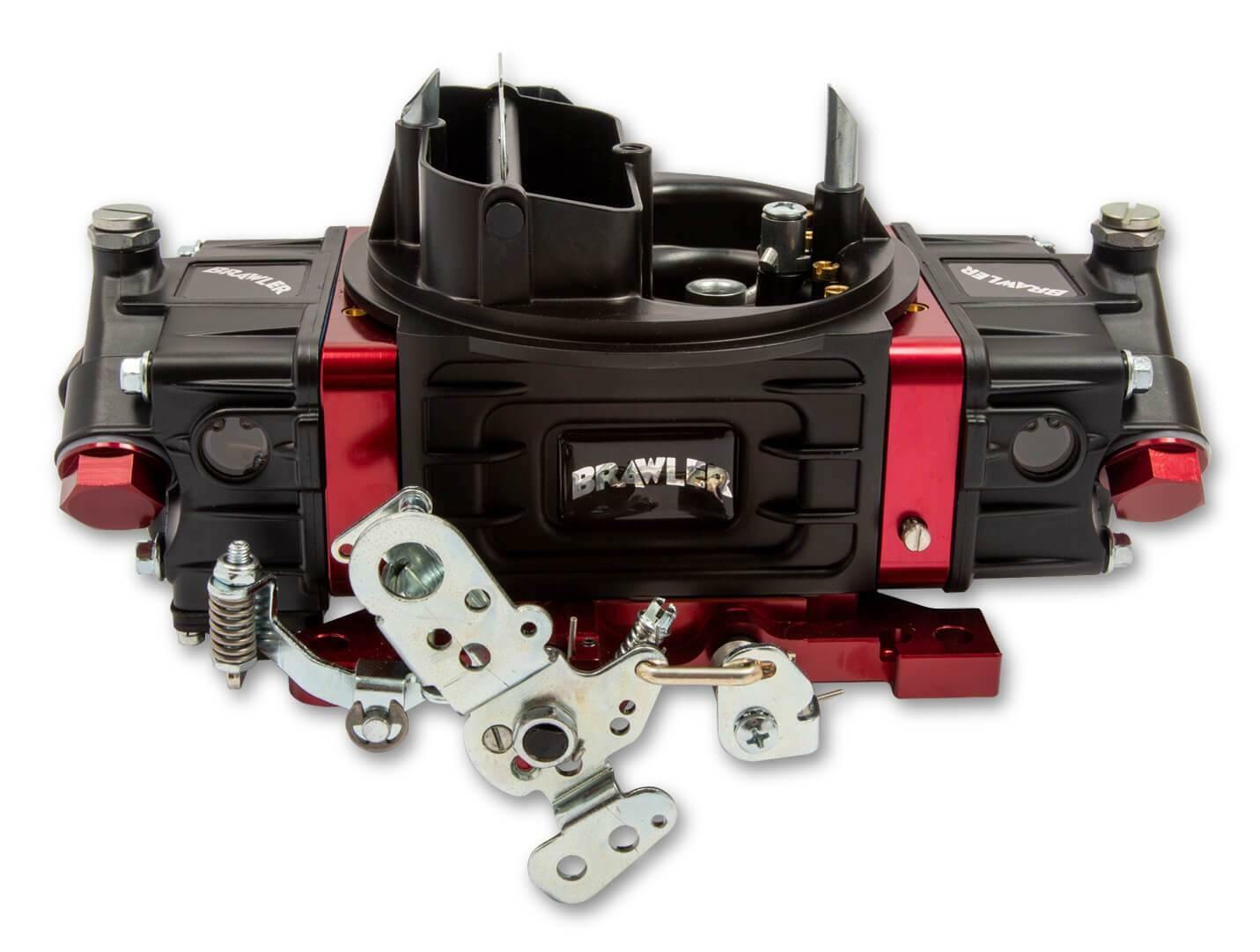

Brawler 750CFM Billet 4 Barrel Double Pumper Carburetor Electric Choke BR-67320

Overview:

Brawler continues to lead the pack with their newest family of carburetors in a black with red billet color combination. While the look is new, the out of the box performance is the same that you have come to expect from Brawler. Brawler Street carburetors are machined and assembled by craftsman right here in the USA. These carburetors work hard just as their name implies- just raw bare knuckled performance that you can rely on. Don't let the budget-friendly price fool you, the Brawler development focused on the performance you want and not the pretty box that it comes in. Brawler Street carburetors come with red billet metering blocks with the latest technology in air/fuel calibrations for today's street or race engine demands. They also come with red billet throttle bodies for superior durability and throttle shaft stability. Brawler Street models offer all of the options and tunability that you would find from more expensive carburetors in the market, including an electric choke, a beautiful finish, and four-corner idle adjustment on all mechanical secondary models.

For drivers who prefer a direct connection, the mechanical-secondary 750 CFM Brawler Street in black with red billet components pairs bold looks with serious performance. Electric choke convenience meets four-corner idle precision and contemporary calibrations, yielding crisp off-idle, muscular mid-range, and a clean high-rpm charge. USA-assembled and highly tunable, it’s a durable step-up carb for strong street/strip combinations.


Features:

• Available sizes from 650 to 850 CFM to match your needs.
• All models have dual inlet fuel bowls with sight glass windows for safe and easy float adjustments
• Brawler Street models include red billet metering blocks and throttle bodies with precision throttle shafts to ensure long term performance
• Changeable idle and high speed air bleeds for easy tuning along with four-corner idle adjustment on mechanical secondary models
• Performance models include billet metering blocks and throttle bodies with precision throttle shafts to ensure long term performance
• Now available in a black coated finish with red billet metering blocks and throttle body.

Applications:

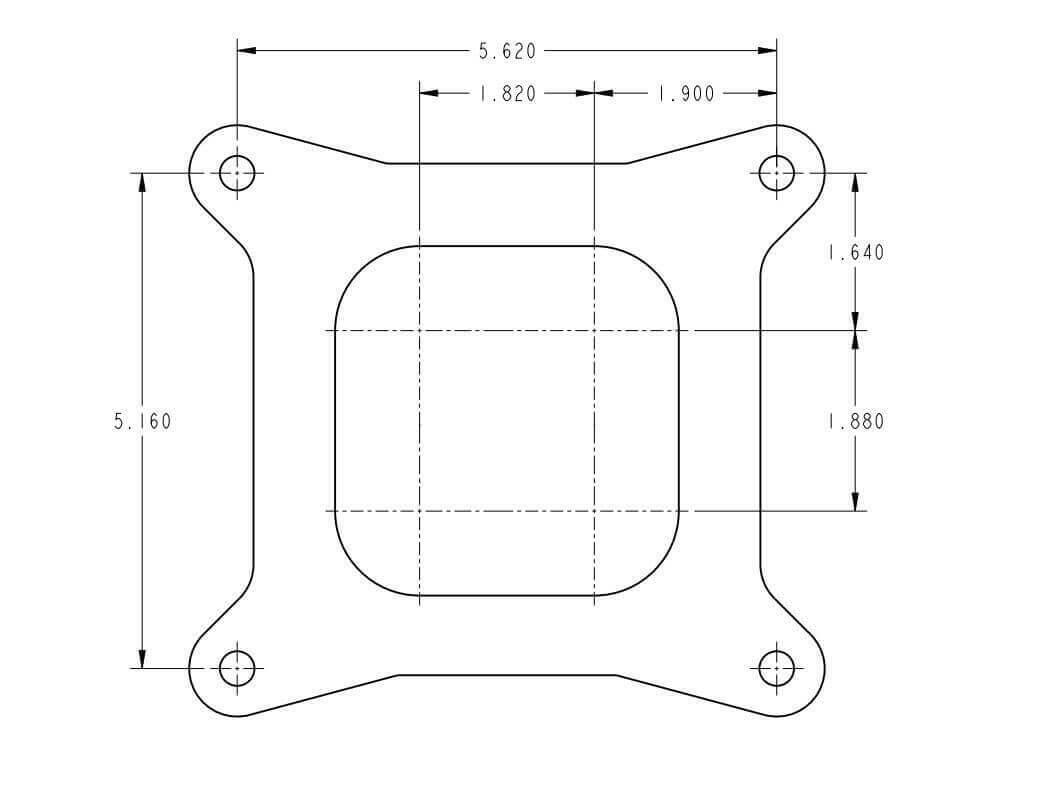

• This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5-3/16" x 5-5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket Part Number 1932.

Specs:

• Barrel Quantity: 4
• Billet Color: Red
• Body Color: Black
• Body Material: Aluminum
• Booster Design: Down Leg
• Brand: Brawler
• CFM: 750
• Choke Type: Electric
• Circuit Count: 2
• Color: Black/Red
• Condition: New
• Flange Shape: Square
• Flange Type: Square/4150
• Fuel Type: Gasoline
• Fuel Inlet: Dual
• Grade Type: Performance
• High Speed Air Bleed: 31;31
• Idle Air Bleed Size: 70;70
• Linkage Attached: Yes
• Marine Approved: No
• Material: Aluminum
• Mounting Hardware Included: No
• Primary Main Jet: 72
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Primary Venturii Diameter: 1.380"
• Secondaries Barrel Type: Mechanical
• Secondary Main Jet: 80
• Secondary Pump Nozzle Size: 31
• Secondary Venturii Size: 1.380"
• Supercharger Compatible: No
• Throttle Bore: 1-11/16 in
• Manufactrurer's Warranty: Limited 90 Day
• Part Number: BR-67320

Emissions:

• This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
• The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle
• WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
• The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle

Service Parts:

• Brawler Rebuild Kit 4150 (650-750 cfm), Part Number BR-67223
