NOS Plate Wet Nitrous System - GM - 05164NOS

05164NOS-CP

$1,449.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Estimated Shipping Widget will be displayed here!

Overview:

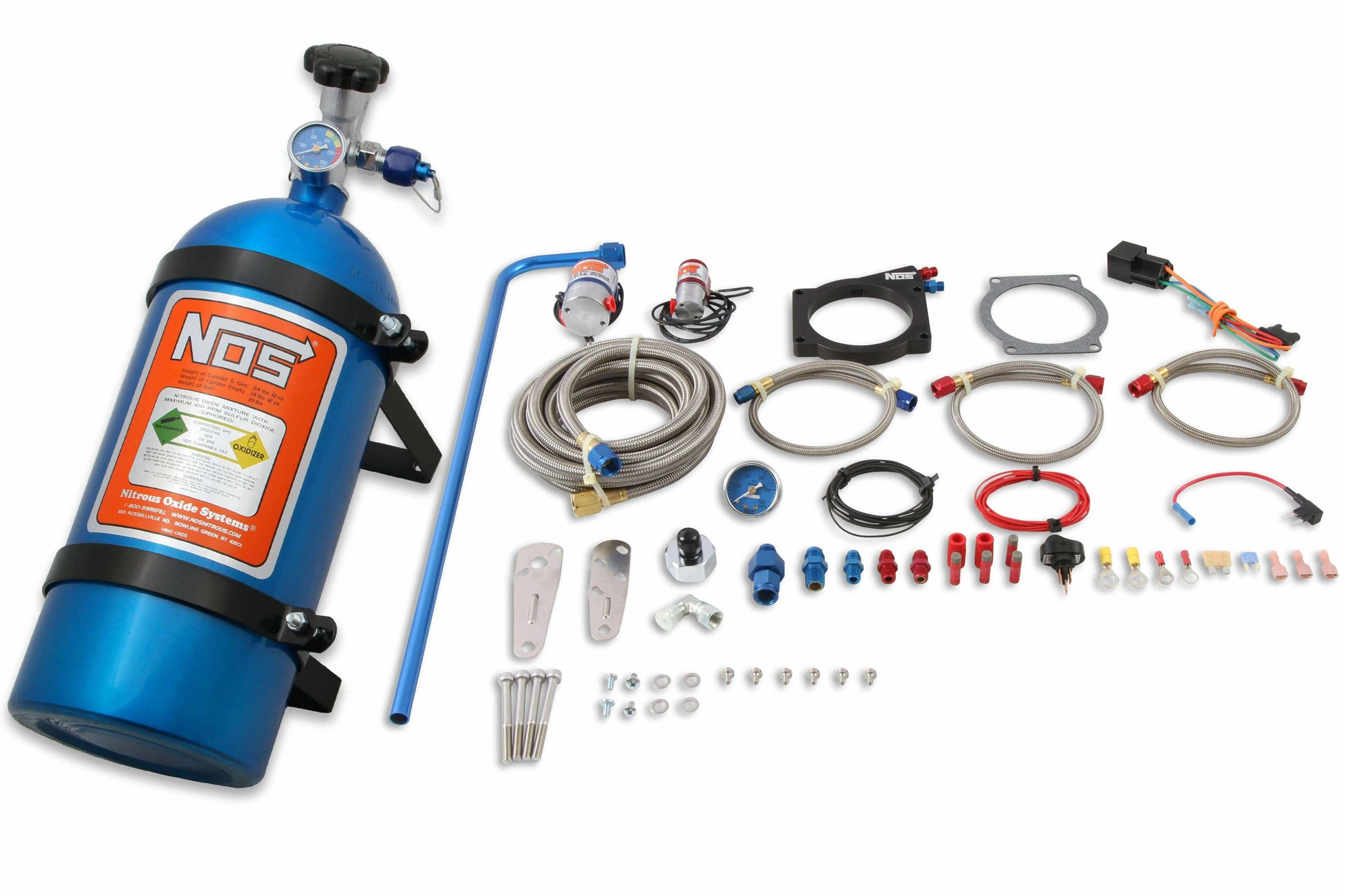

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.

Features:

For use with 90mm or 92mm drive-by-wire Throttle Bodies
Single ½” plate between the throttle body and manifold
Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
Supports up to 250 RWHP (Rear Wheel Horse Power)
Plate outlet design maximizes distribution
Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
6061 Billet Aluminum, CNC Machined Plate

Application:

Year	Make	Model	Engine Size
2014 - 2017	Chevrolet	SS	4.06/8 V
2010 - 2015	Chevrolet	Camaro	4.06/8 V
2006 - 2013	Chevrolet	Corvette	4.13/8 V
2006 - 2007	Cadillac	CTS	4/8 V
2008 - 2013	Chevrolet	Corvette	4.06/8 V
2009 - 2015	Cadillac	CTS	4.06/8 V
2005 - 2006	Chevrolet	SSR	4/8 V
1998 - 2002	Pontiac	Firebird	3.9/8 V
1998 - 2002	Chevrolet	Camaro	3.9/8 V
2005 - 2006	Pontiac	GTO	4/8 V
1997 - 2004	Chevrolet	Corvette	3.9/8 V
2008 - 2009	Buick	LaCrosse	3.78/8 V
2009	Pontiac	G8	4.06/8 V
2004	Pontiac	GTO	3.9/8 V
2004 - 2005	Cadillac	CTS	3.9/8 V
2008 - 2009	Buick	Allure	3.78/8 V
2005 - 2008	Pontiac	Grand Prix	3.78/8 V
2006 - 2009	Chevrolet	Trailblazer	4/8 V
2014 - 2015	Chevrolet	Camaro	4.13/8 V
2005 - 2007	Chevrolet	Corvette	4/8 V
2006 - 2009	Chevrolet	Impala	3.78/8 V
2006 - 2007	Chevrolet	Monte Carlo	3.78/8 V
2008 - 2009	Saab	9-7x	4/8 V

Specs:

Adjustable	Yes
Bottle Color	Blue
Bottle Included	Yes
Bottle Material	6061 T-6 Aluminum
Bottle Size	10 lb
Bottle Valve	Super Hi-Flo
Bracket Material	Steel
Brackets Included	Yes
Brand	NOS
Color	Blue
Delivery Style	EFI Spacer Plate
Emission Code	4
Feed Line Size	6AN

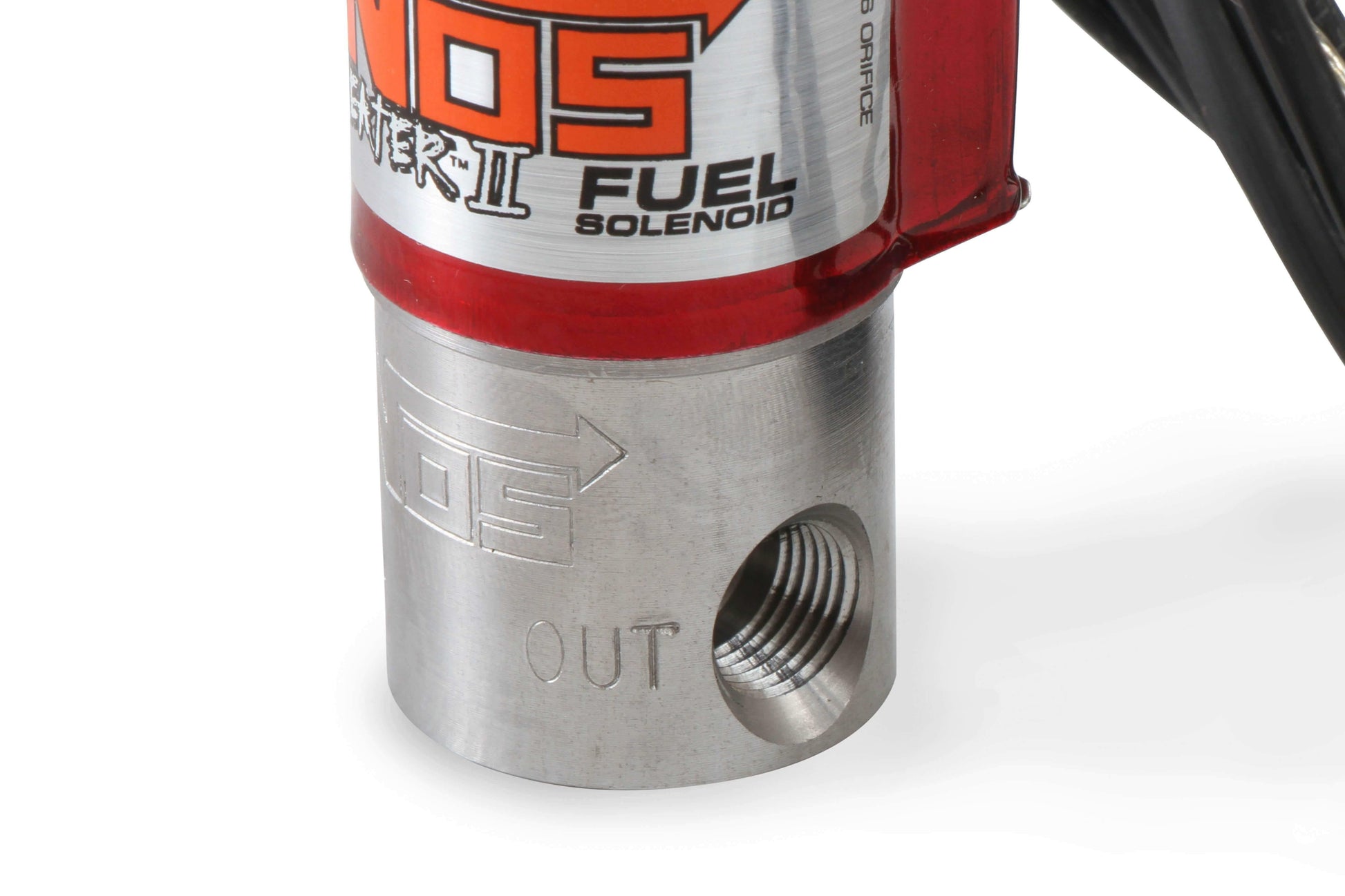

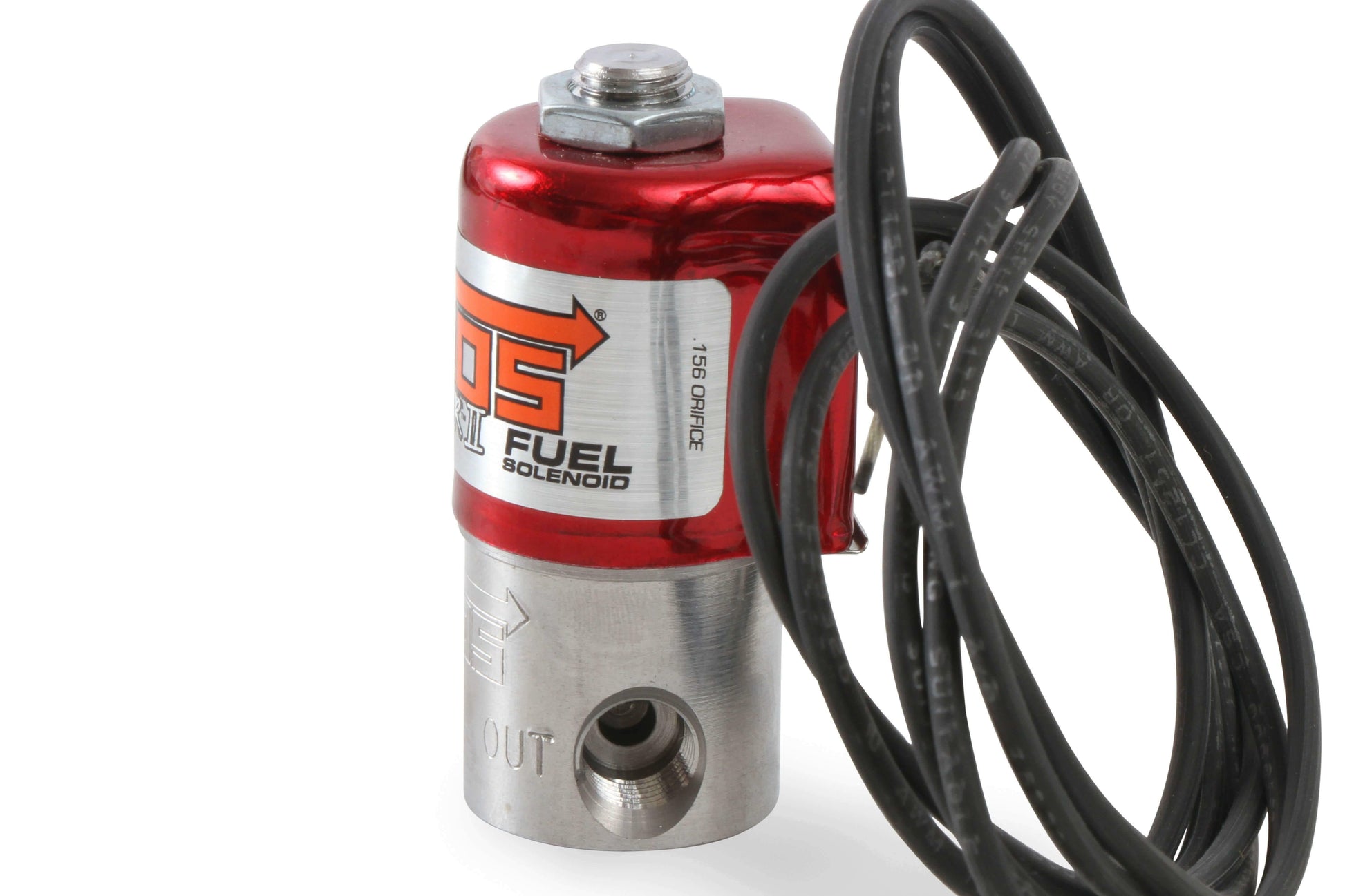

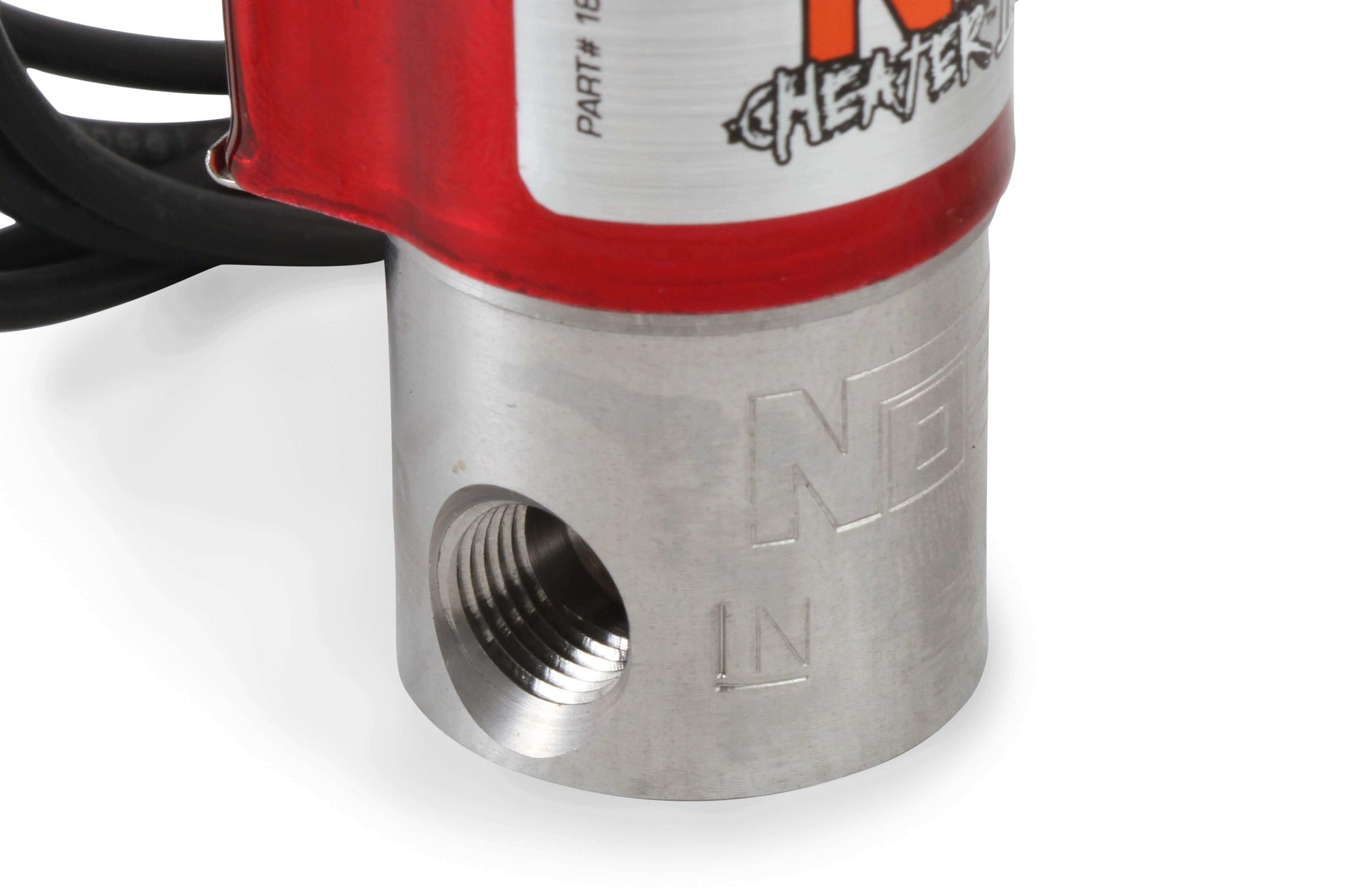

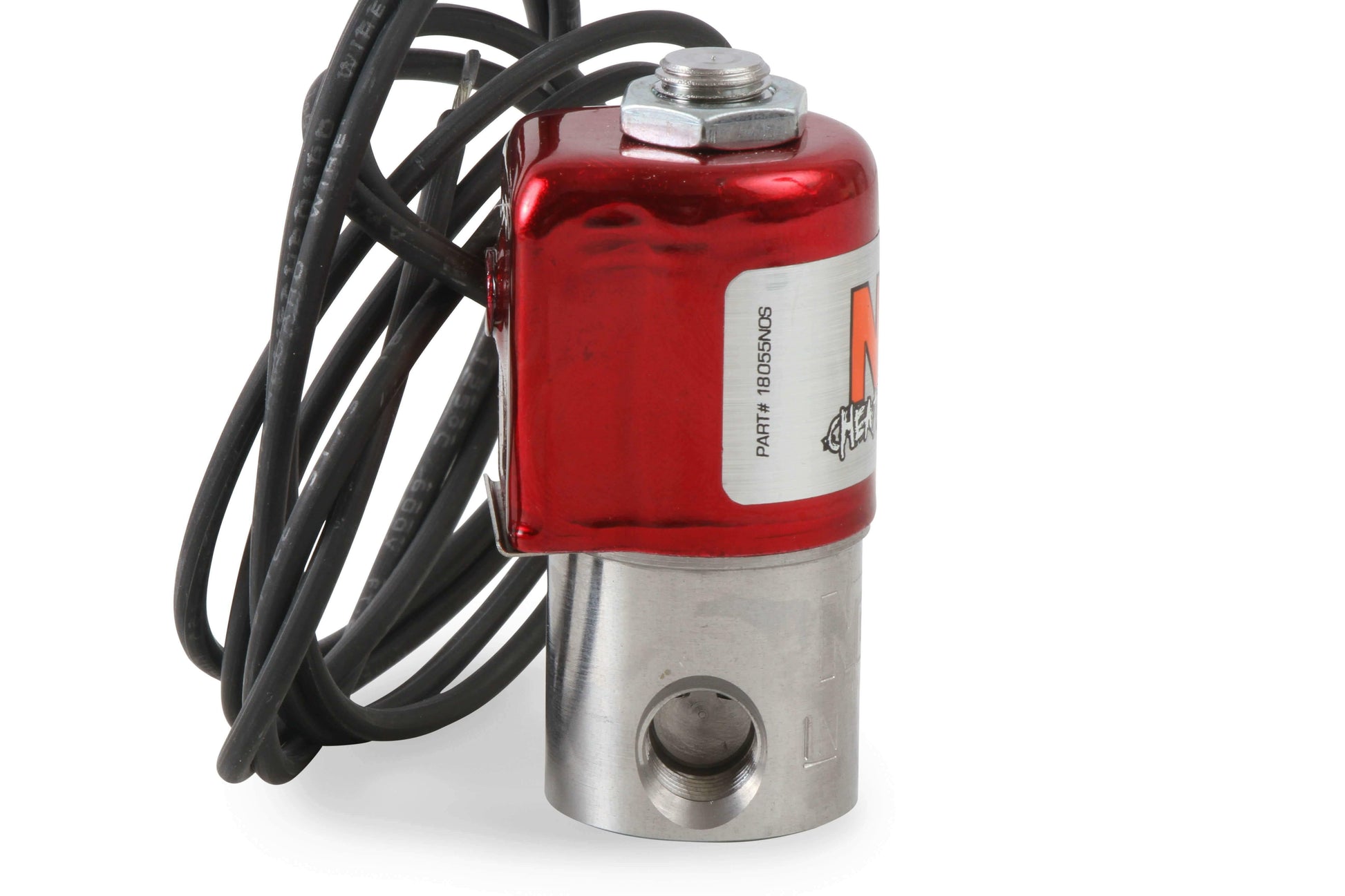

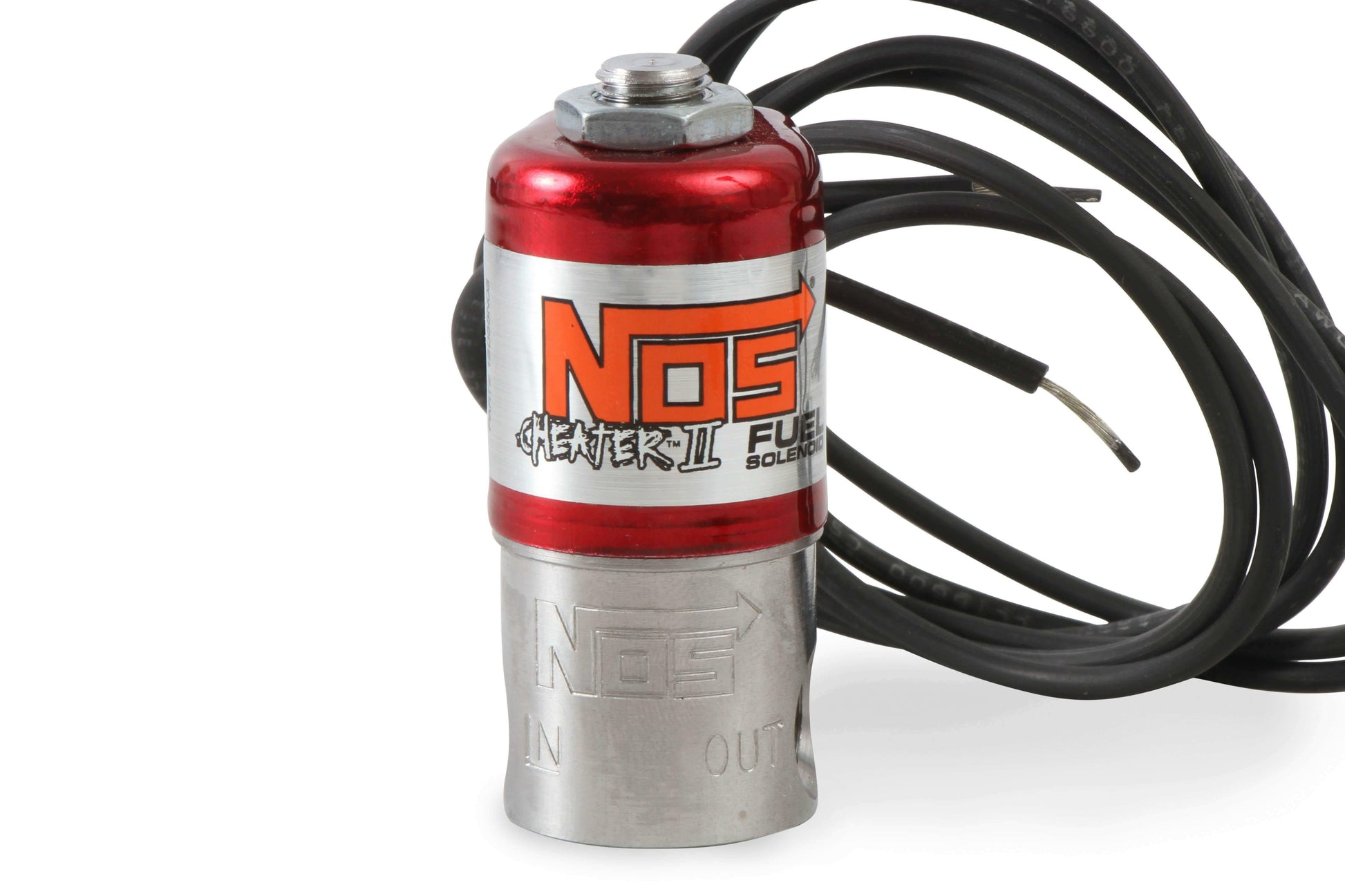

Fuel Solenoid	Cheater ll
Included Jetting Horsepower	100, 125, 150
Jet Sizes Included	100, 125, 150 hp
Jet Style	Flare
Material	6061 T-6 Aluminum
Max Horsepower	250
Nitrous Bottle Capacity	10 lbs

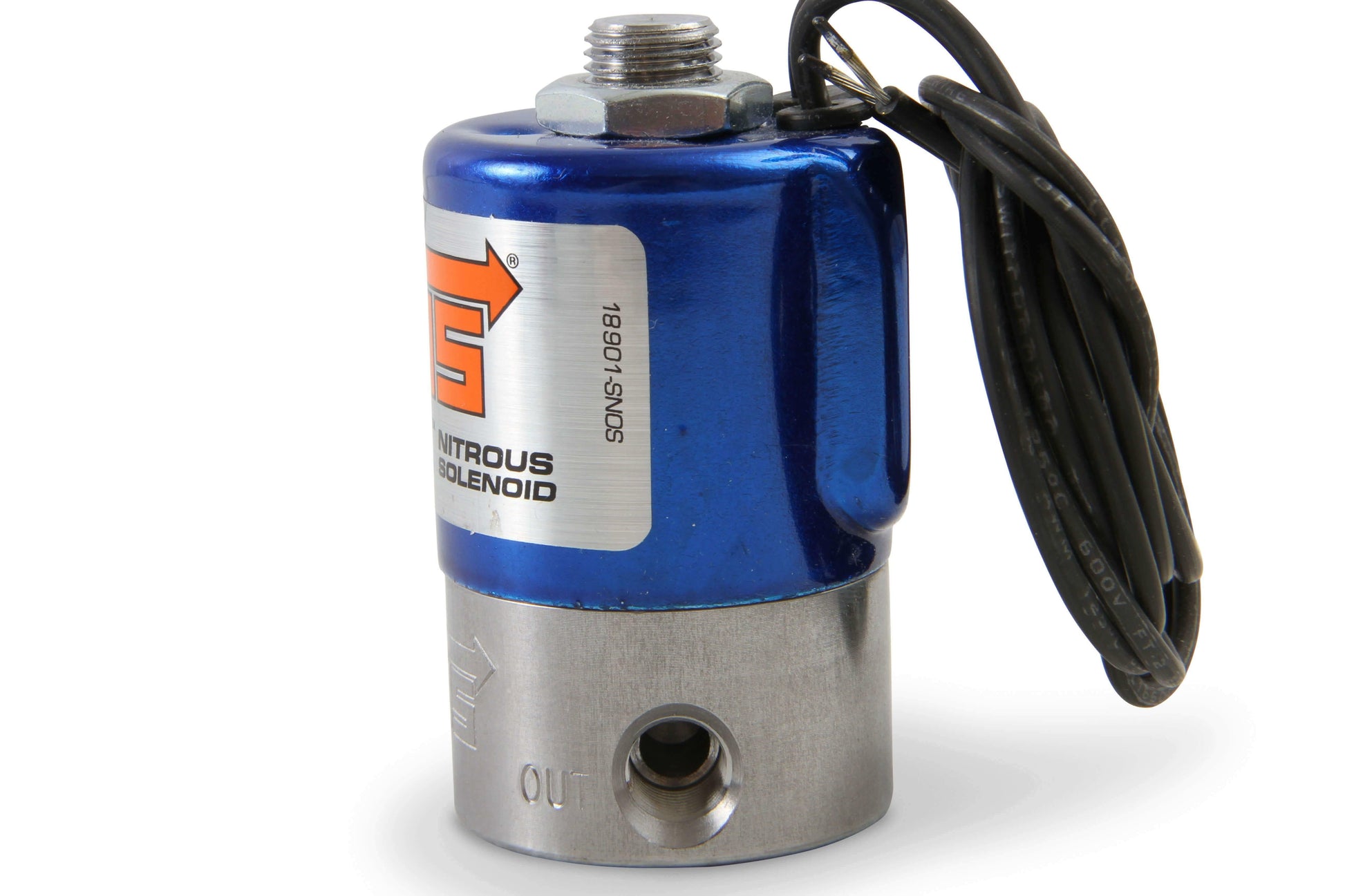

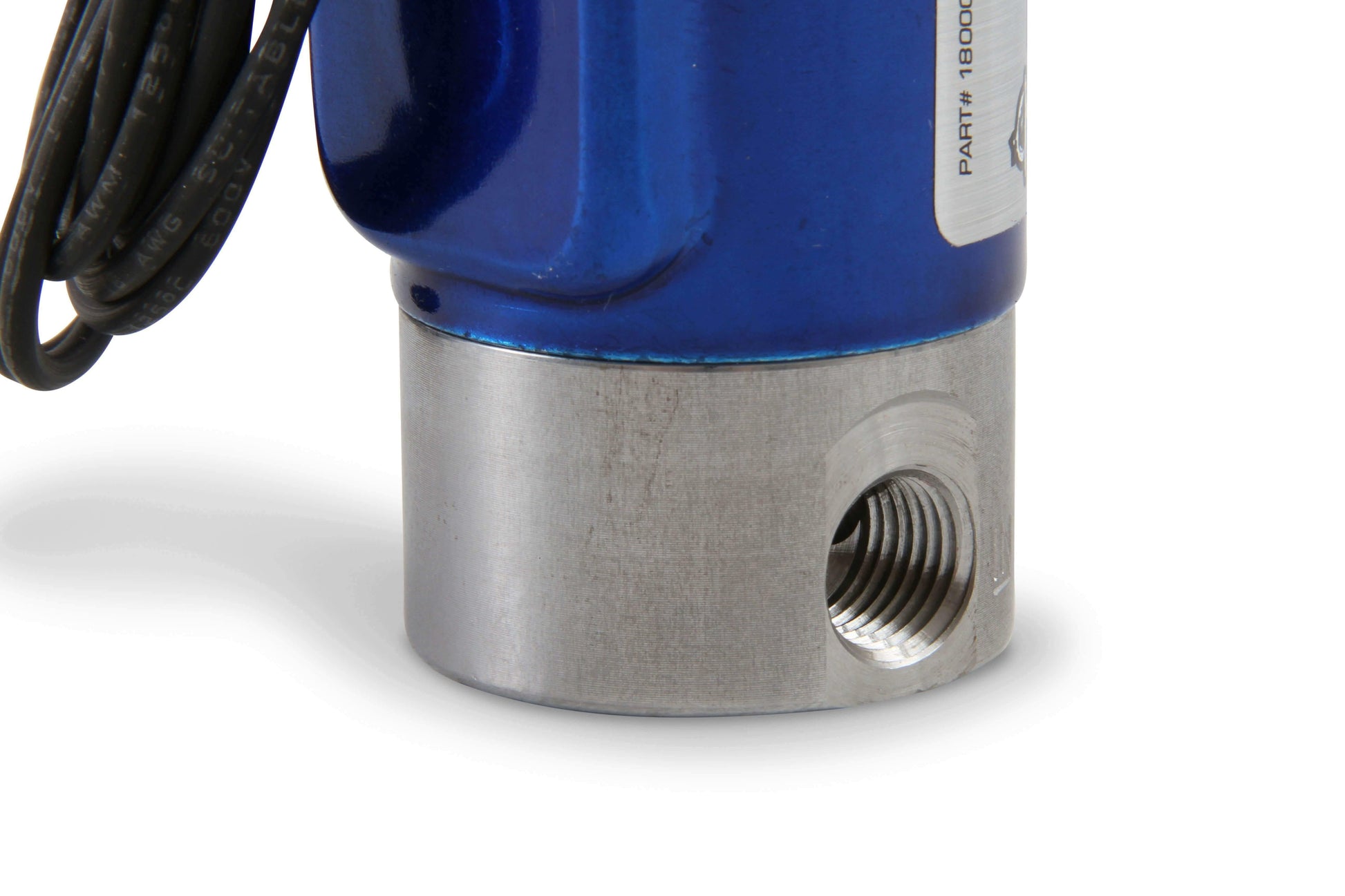

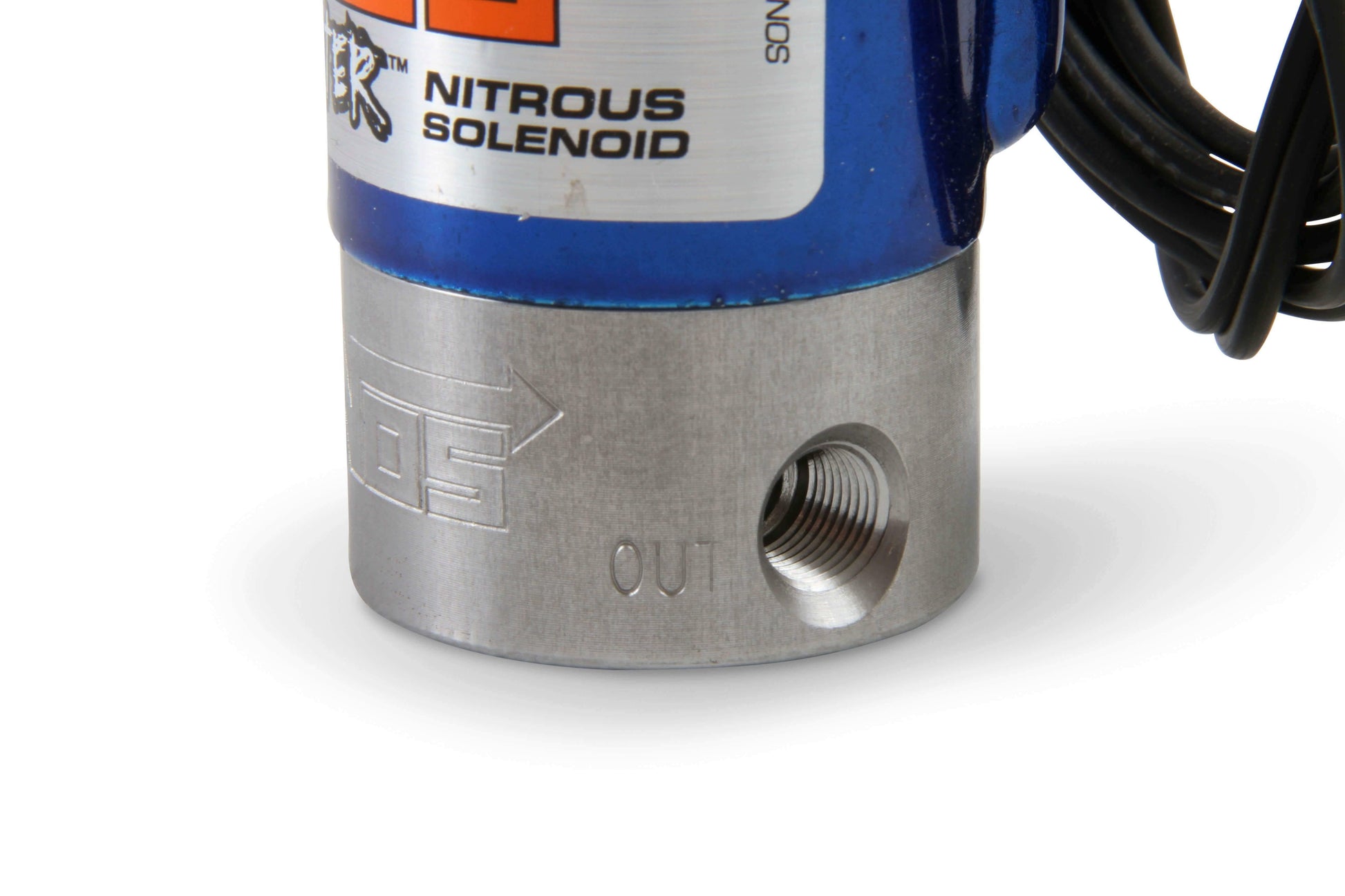

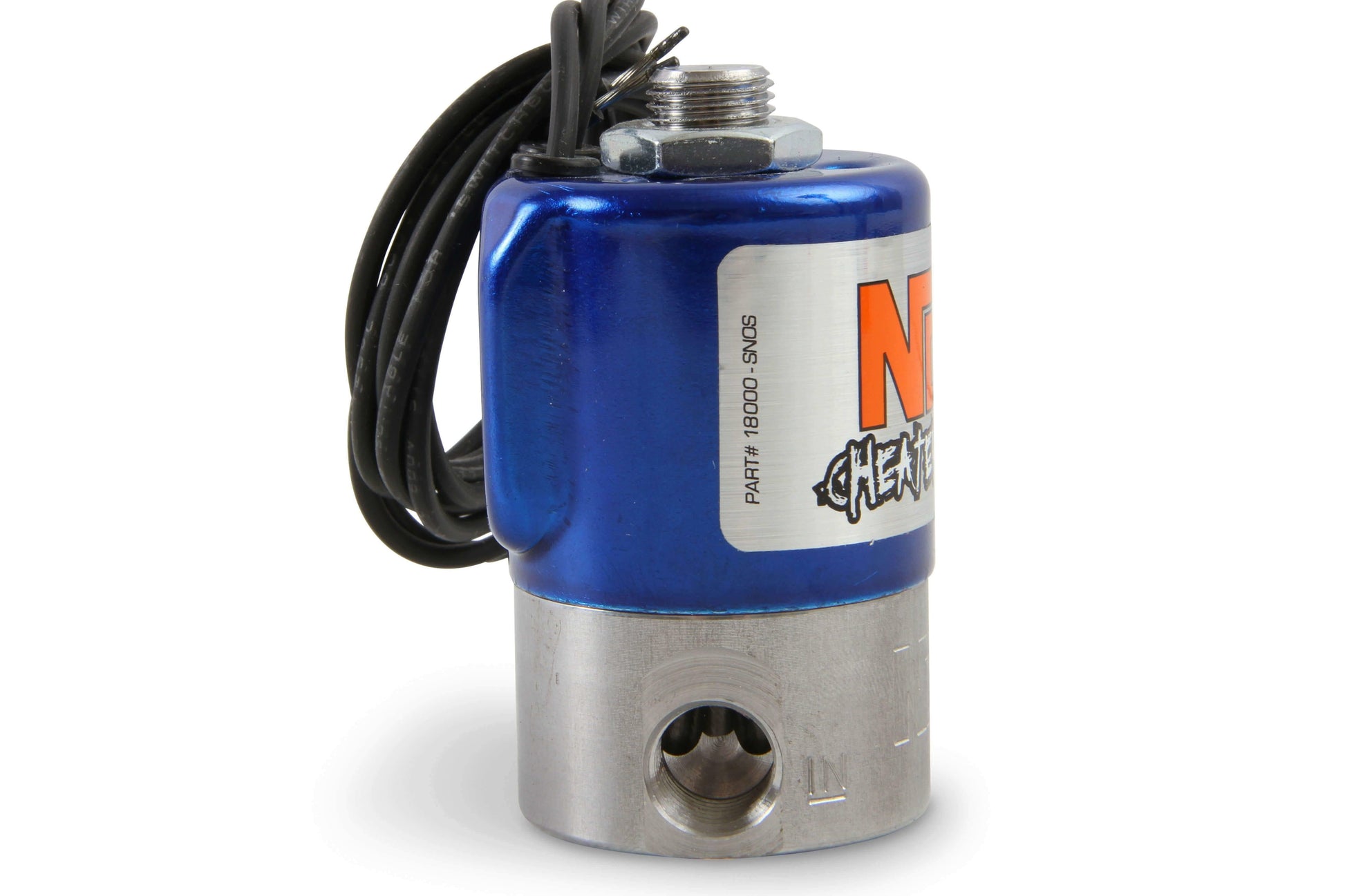

Nitrous Solenoid	Cheater
Number of Solenoids	2
Plate Bolt Pattern	4 bolt
Plate Diameter	90 mm
Plate Flange	GM 90mm LS 4 bolt
Plate Height	1/2 inch
Plate Included	Yes
Plate Thickness	1/2 inch
Product Type	Nitrous System
Solenoid Top Cover Color	Blue/Red
Style	Wet
System Style	Wet
Warning	California Proposition 65
