NOS Plate Wet Nitrous System - GM - 05163NOS

NOS Plate Wet Nitrous System - GM - 05163NOS

05163NOS-CP

$1,249.95 USD
$1,249.95 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.

Features:

  • Fits 90mm or 92mm cable actuated throttle body
  • For use with drive-by-wire or cable operated Throttle Bodies
  • Single ½” plate between the throttle body and manifold
  • Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
  • Supports up to 250 RWHP (Rear Wheel Horse Power)
  • Plate outlet design maximizes distribution

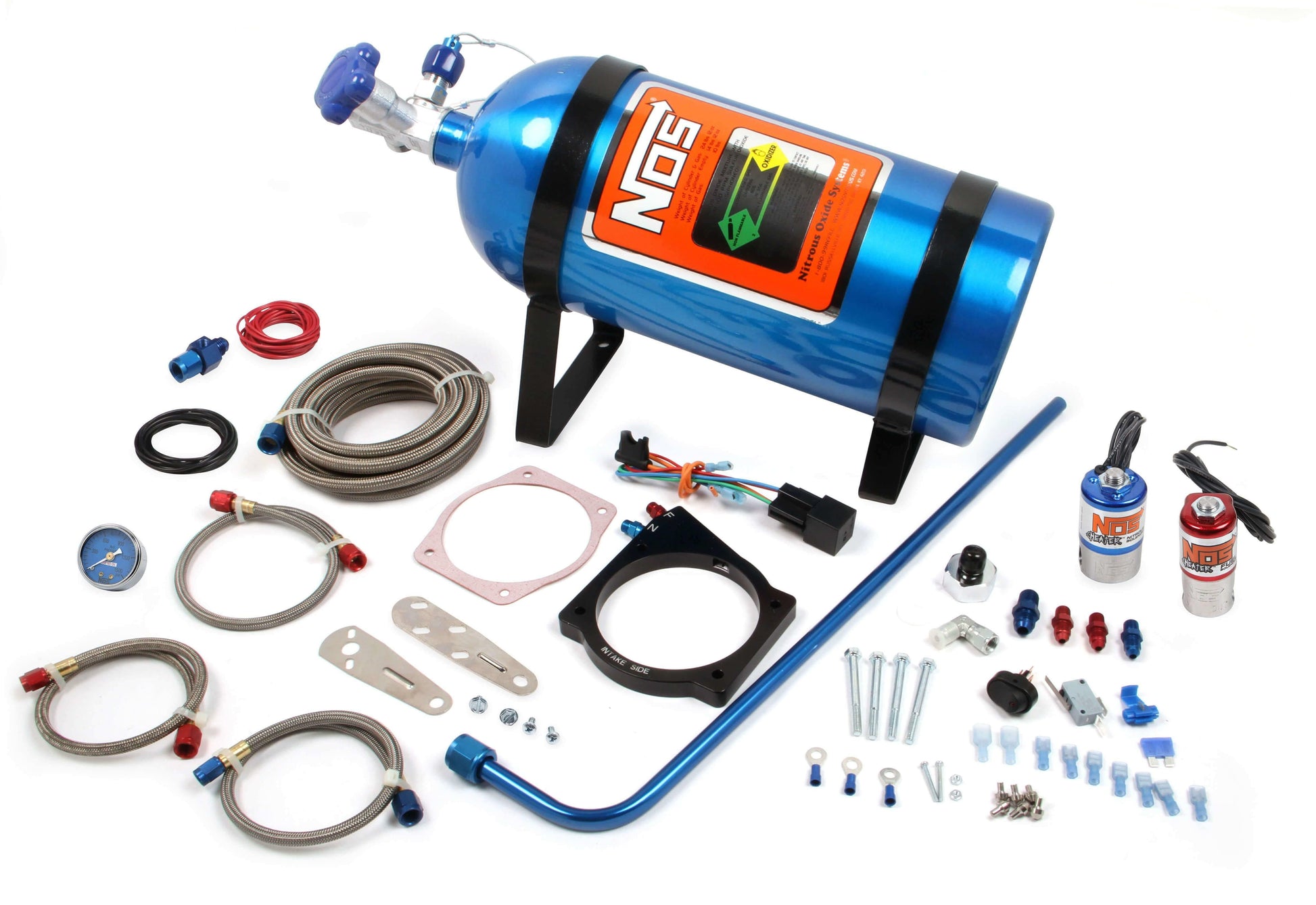

  • Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
  • 6061 Billet Aluminum, CNC Machined Plate

Application:

Year Make Model Submodel Engine Size
2005 - 2007 Chevrolet Corvette 4/8 V
2006 - 2013 Chevrolet Corvette 4.13/8 V
2008 - 2013 Chevrolet Corvette 4.06/8 V
2005 - 2006 Chevrolet SSR 4/8 V
2009 - 2015 Cadillac CTS 4.06/8 V
2005 - 2006 Pontiac GTO 4/8 V
2010 - 2015 Chevrolet Camaro 4.06/8 V
1997 - 2004 Chevrolet Corvette 3.9/8 V
2006 - 2009 Chevrolet Impala 3.78/8 V
2014 - 2017 Chevrolet SS 4.06/8 V
1998 - 2002 Chevrolet Camaro 3.9/8 V
2005 - 2008 Pontiac Grand Prix 3.78/8 V
1998 - 2002 Pontiac Firebird 3.9/8 V
2008 - 2009 Buick LaCrosse 3.78/8 V
2008 - 2009 Saab 9-7x 4/8 V
2014 - 2015 Chevrolet Camaro 4.13/8 V
2006 - 2009 Chevrolet Trailblazer 4/8 V
2006 - 2007 Chevrolet Monte Carlo 3.78/8 V
2004 - 2005 Cadillac CTS 3.9/8 V
2008 - 2009 Buick Allure 3.78/8 V
2006 - 2007 Cadillac CTS 4/8 V
2009 Pontiac G8 4.06/8 V
2004 Pontiac GTO 3.9/8 V

Specs:

Adjustable Yes
Bottle Color Blue
Bottle Included Yes
Bottle Material 6061 T-6 Aluminum
Bottle Size 10 lb
Bottle Valve Super Hi-Flo
Bracket Material Steel
Brackets Included Yes
Brand NOS
Color Blue
Delivery Style EFI Spacer Plate
Emission Code 4
Feed Line Size 6AN
Fuel Solenoid Cheater ll
Included Jetting Horsepower 100, 125, 150
Jet Sizes Included 100, 125, 150 hp
Jet Style Flare
Material 6061 T-6 Aluminum
Max Horsepower 250
Nitrous Bottle Capacity 10 lbs
Nitrous Solenoid Cheater
Number of Solenoids 2
Plate Bolt Pattern 4 bolt
Plate Diameter 90 mm
Plate Flange GM 90mm LS 4 bolt
Plate Height 1/2 inch
Plate Included Yes
Plate Thickness 1/2 inch
Product Type Nitrous System
Solenoid Top Cover Color Blue/Red
Style Wet
System Style Wet
Warning California Proposition 65
