NOS Dry Nitrous Plate for Holley LS Hi-Ram EFI Intake Manifolds-Black 12535BNOS

NOS Dry Nitrous Plate for Holley LS Hi-Ram EFI Intake Manifolds-Black 12535BNOS

12535BNOS-CP

$849.95 USD
$849.95 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

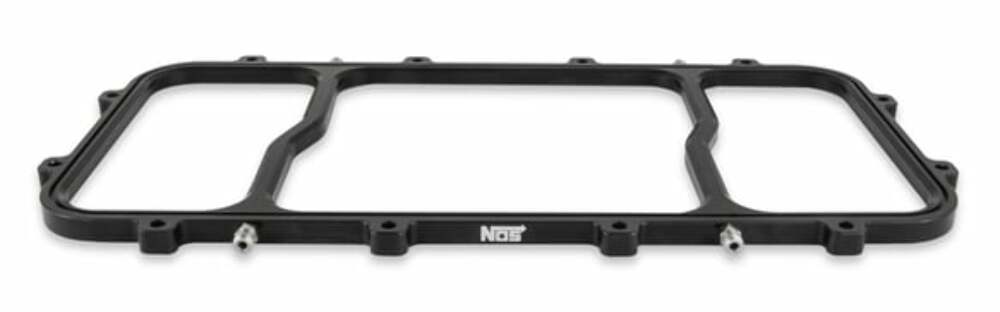

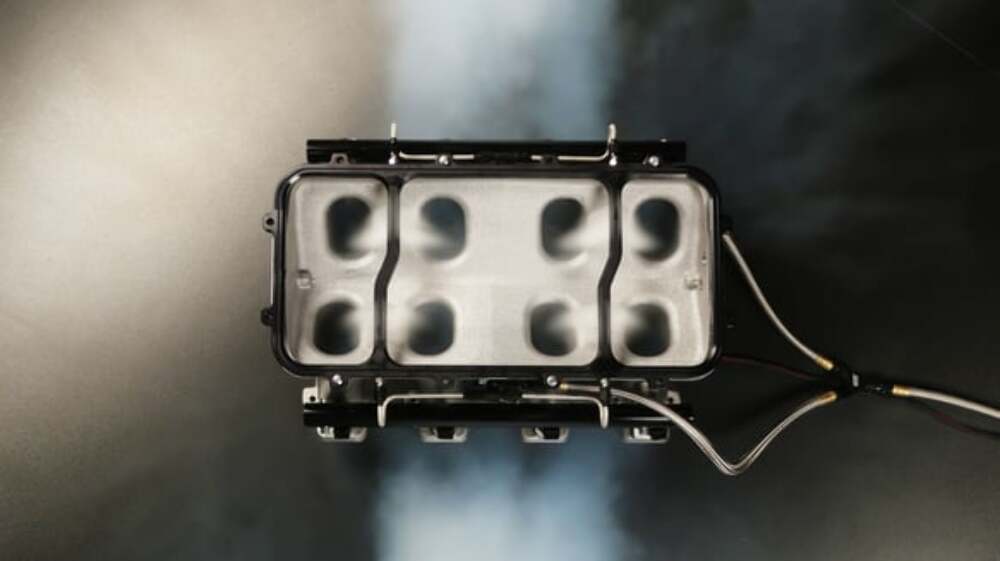

This NOS plate designed to bolt between the upper and lower intake manifold on Holley Hi-Ram LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Hi-Ram equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets.

Features:

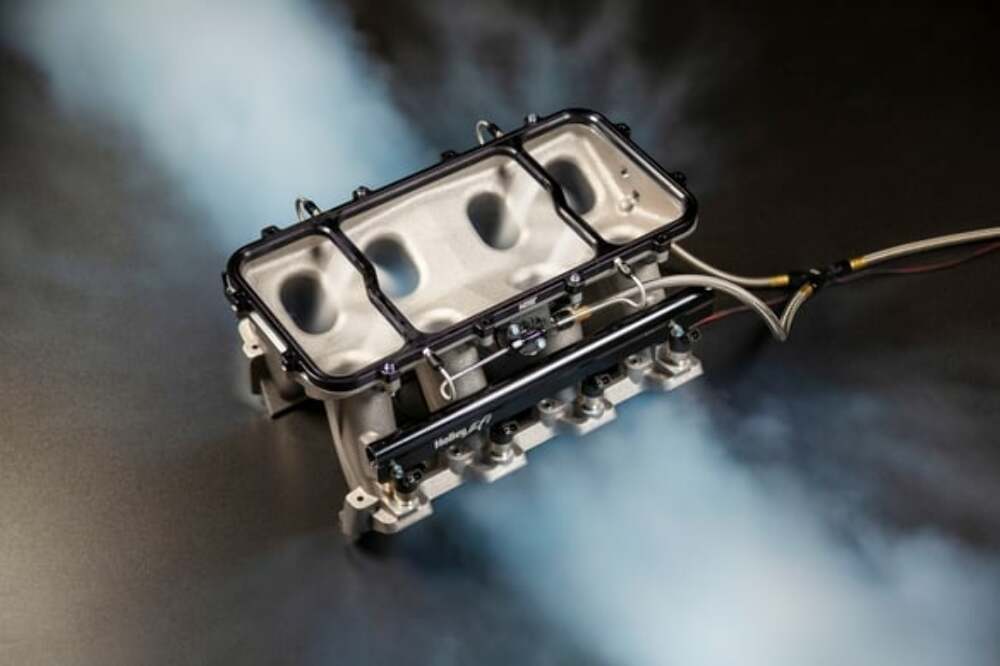

  • This dry single stage plate sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
  • Designed specifically for optimum nitrous distribution on LS-based engines

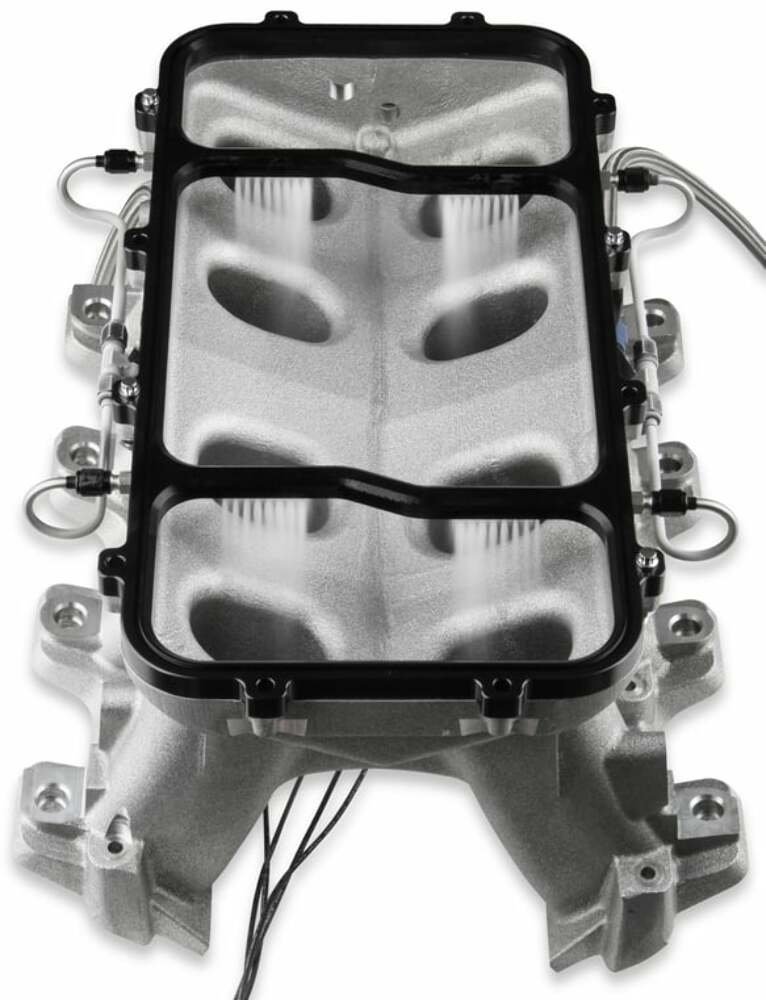

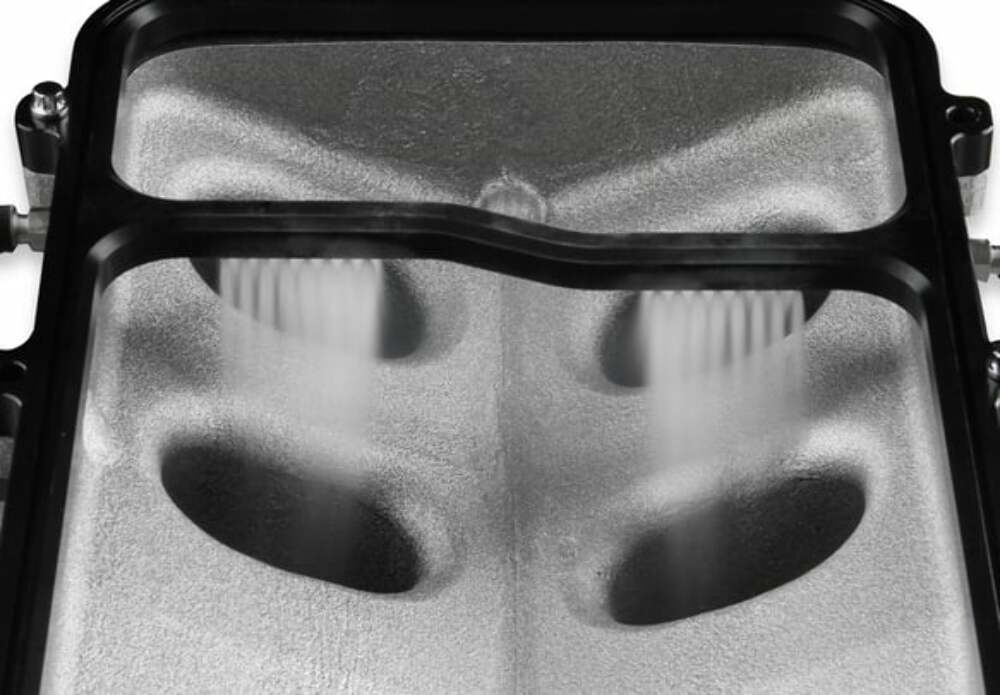

  • Sprays nitrous directly into each cylinder runner for proper nitrous distribution

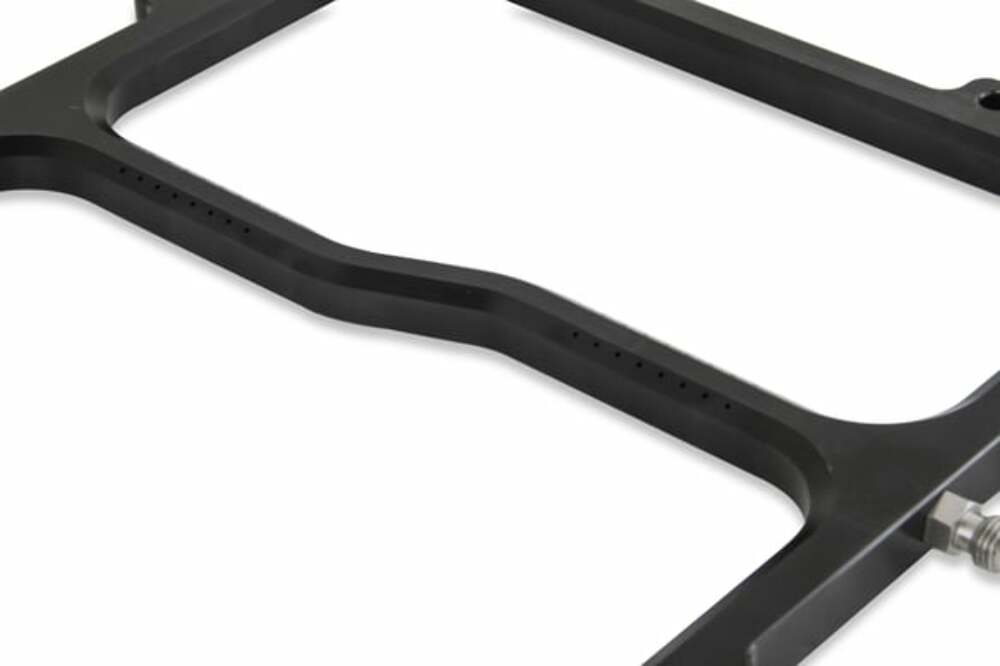

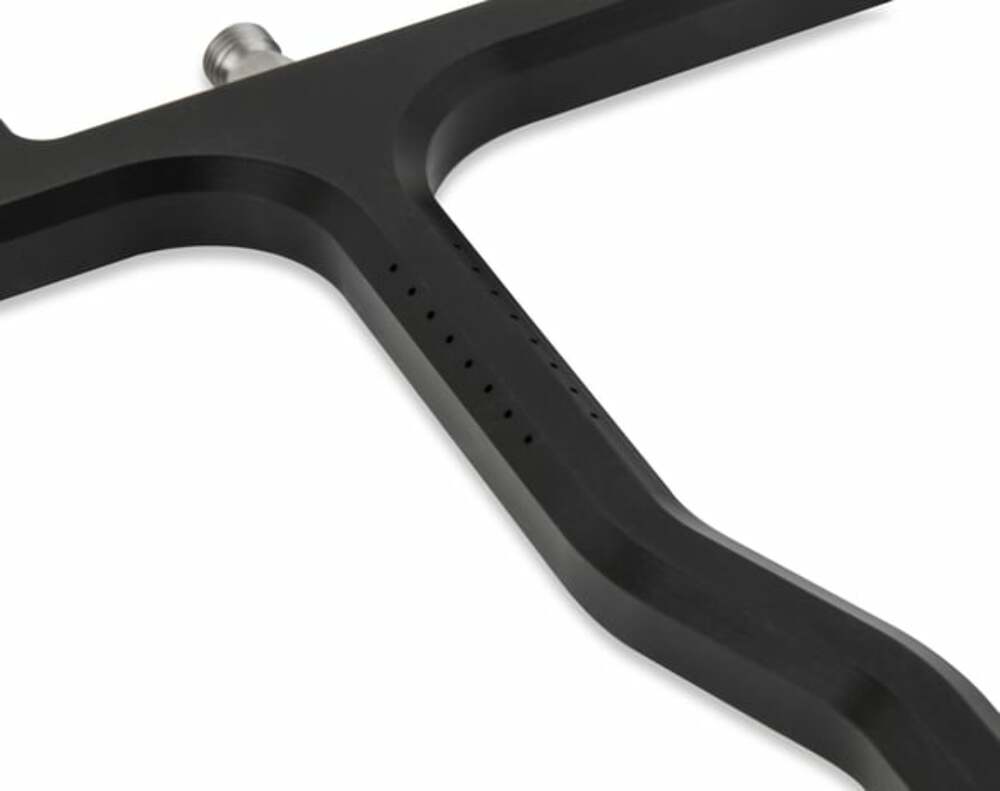

  • Features a machined 0.103” passage that feeds eight 0.040” openings per intake runner
  • Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
  • Anodized Black for corrosion resistance and high quality appearance

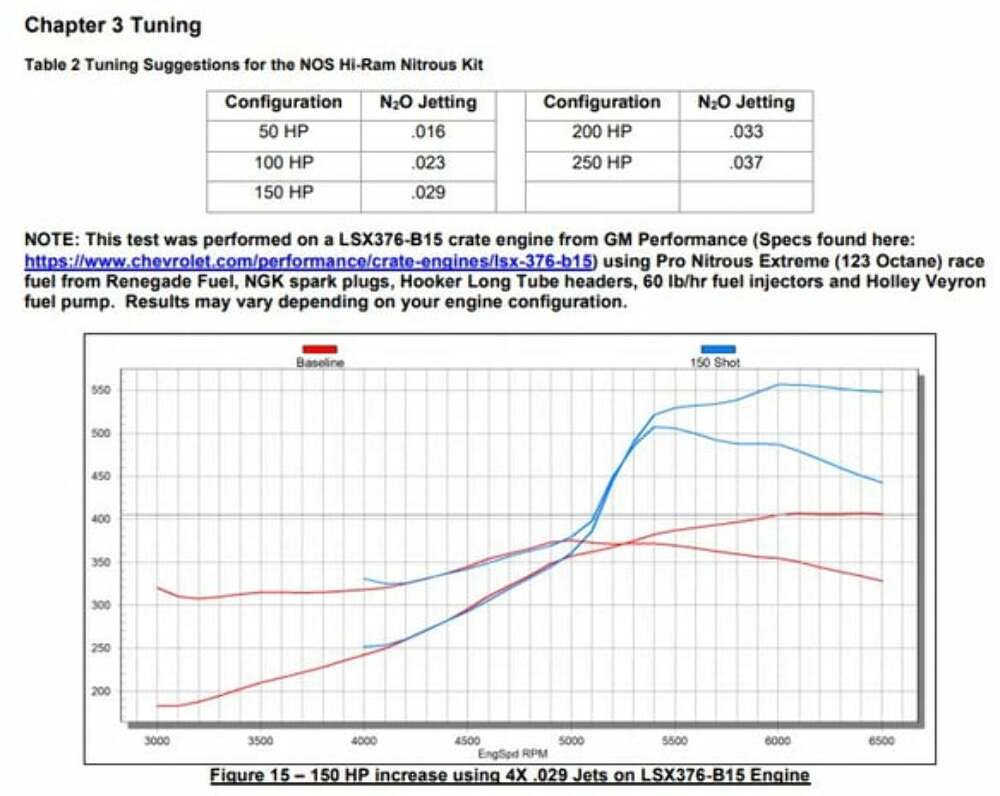

  • Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
  • Supports up to 1000+ horsepower (jets purchased separately)

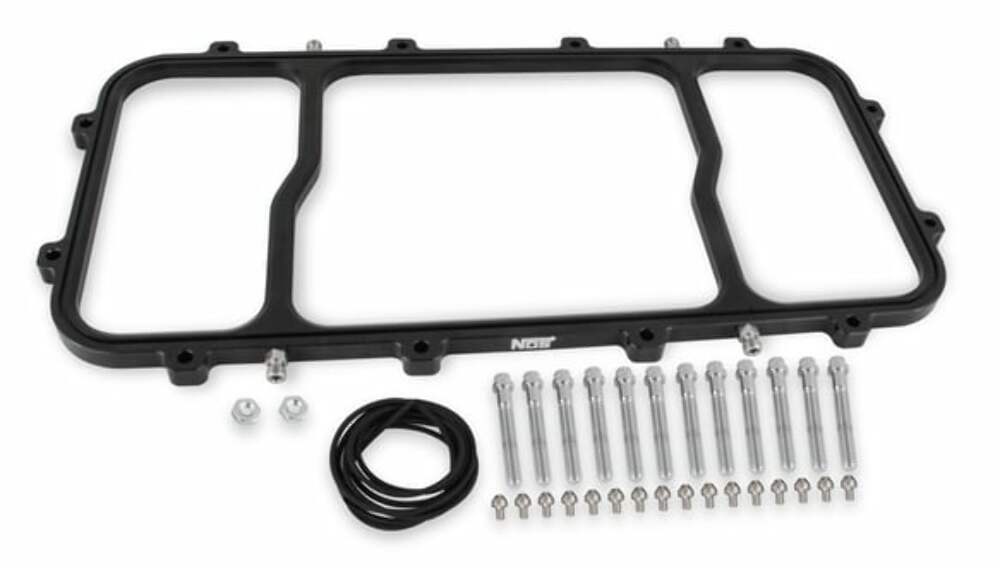

  • Includes Plate, Gasket, Hardware, Jet Holders, and Jetting for up to 250 horsepower

Application:

Year Make Model Submodel Engine Size
1997 - 2004 Chevrolet Corvette 3.9/8 V
2004 - 2005 Cadillac CTS 3.9/8 V
2010 - 2015 Chevrolet Camaro 4.06/8 V
2014 - 2017 Chevrolet SS 4.06/8 V
2008 - 2013 Chevrolet Corvette 4.06/8 V
1998 - 2002 Pontiac Firebird 3.9/8 V
2005 - 2007 Chevrolet Corvette 4/8 V
2009 Pontiac G8 4.06/8 V
1998 - 2002 Chevrolet Camaro 3.9/8 V
2004 Pontiac GTO 3.9/8 V

Specs:

Adjustable Yes
Bottle Included No
Brackets Included No
Brand NOS
Color Black
Delivery Style Hi-Ram Plate
Emission Code 4
Included Jetting Horsepower 50, 100, 150, 200, 250
Jet Style Flare
Material Aluminum
Max Horsepower 1000
Plate Flange Holley Hi-Ram
Plate Height 1/2 inch
Plate Included Yes
Product Type Nitrous Plate
System Style Dry
