Long Tube Headers for 64-67 GTO 455 W/HO/SD/Ram Air Heads only D567-B

Long Tube Headers for 64-67 GTO 455 W/HO/SD/Ram Air Heads only D567-B

D567-B-BKLK

$1,020.65 USD
$1,020.65 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

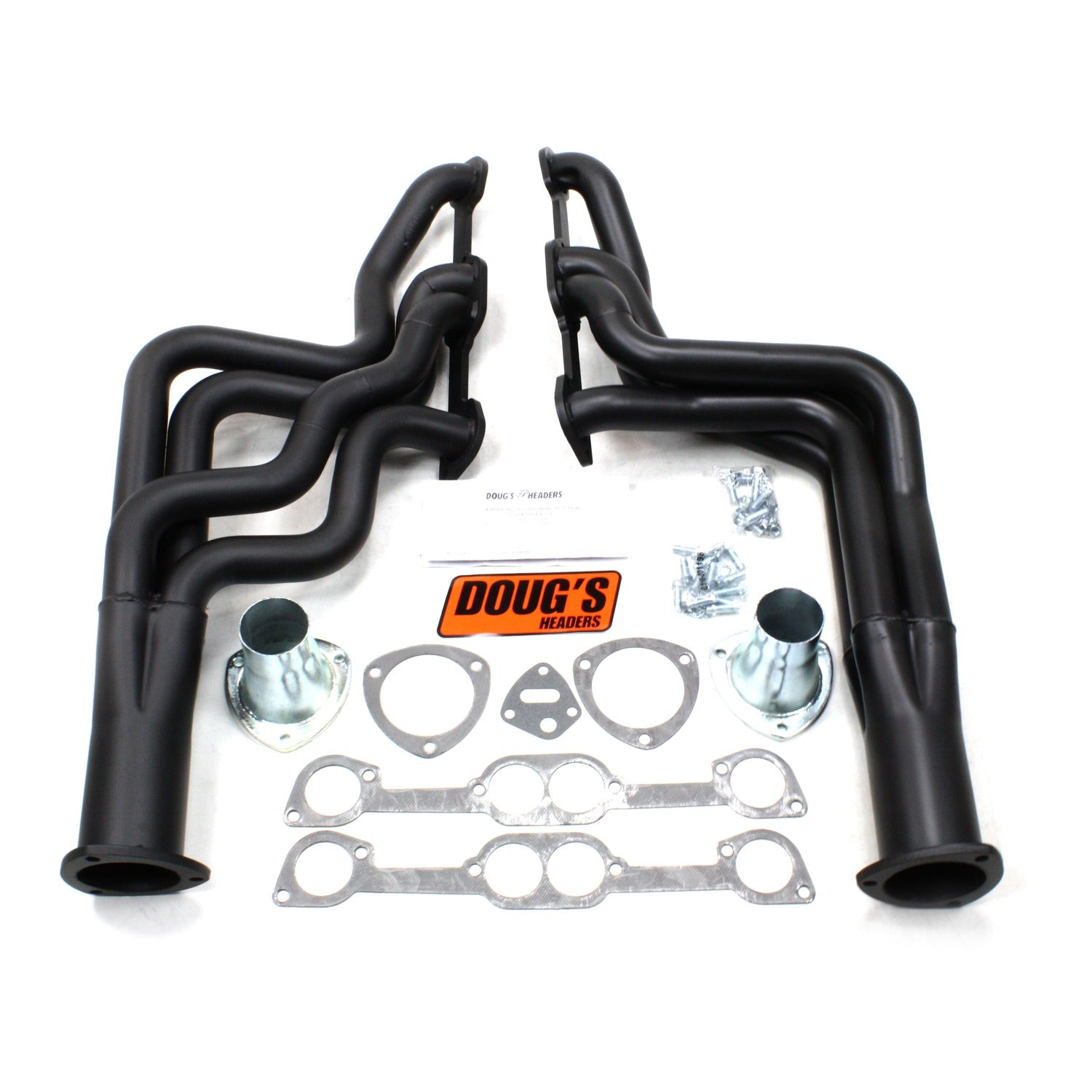

64-67 GTO 455 HO Long Tube Black Ctd

Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.

Features:

  • 3/8" Thick machined flanges to prevent warping
  • Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating

Specs:

  • Brand: Doug's Headers
  • Collector Attachment: 3-Bolt Flange
  • Collector Diameter: 3.5 IN
  • Collector Port Diameter: 3.5 IN
  • Color: Black
  • Cylinder Head Port Shape: Round
  • Design: Full-length
  • EGT Port: No
  • Finish: Hi-Temp Black Coating
  • Flange Thickness: 0.375 IN
  • Gasket Or Seal Included: Yes
  • Gaskets Included: Yes
  • Grade Type: Performance
  • Header Material: Steel
  • Header Style: Full-length
  • Material: Steel
  • Mounting Hardware Included: Yes
  • Oxygen Sensor Port: No
  • Port Shape: Round
  • Primary Tube Outside Diameter: 1.75 IN
  • Primary Tubing Diameter: 1.75 IN
  • Prop 65 (C, R or CR): CR
  • Prop 65 Yes/No: Yes
  • Sheen Level: Matte
  • Title: Doug's Long Tube Header 64-67 GTO 455 W/HO/SD/Ram Air Heads only 1 7/8" Primary 3 1/2" Collector Black Hi Temp Coated D567-B
  • Tube Wall Thickness: 16 GU
  • Part Number: D567-B

Applications:

  • 1964-1966 Pontiac GTO 389 CID
  • 1967-1972 Pontiac GTO 400 CID
  • 1970-1972 Pontiac GTO 455 CID
  • 1964-1967 Pontiac LeMans 326 CID
  • 1968-1972 Pontiac LeMans 400 CID
  • 1968-1972 Pontiac LeMans 350 CID
  • 1970-1972 Pontiac LeMans 455 CID
  • 1964-1967 Pontiac Tempest 326 CID
  • 1968-1970 Pontiac Tempest 400 CID
  • 1968-1970 Pontiac Tempest 350 CID

Emissions:

  • This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
    • 1965 and Older US Manufactured California Certified Vehicles
    • 1967 and Older US Manufactured Federally Certified Vehicles
    • 1967 and Older Foreign Manufactured Vehicles

Instructions:

Fitment Notes:

  • Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
  • Requires removal or modification of locking steering columns if equipped.
  • 4 speed applications must modify the Z-Bar to clear the headers.
  • Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
