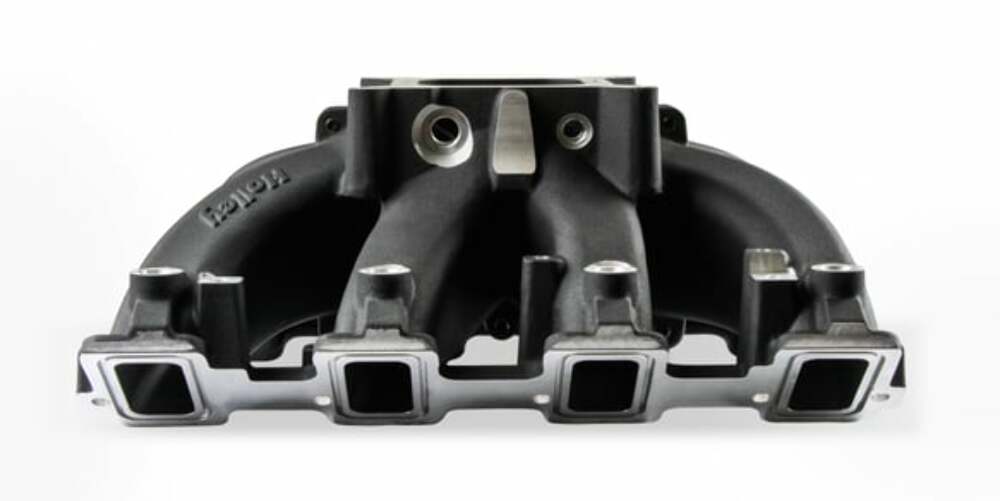

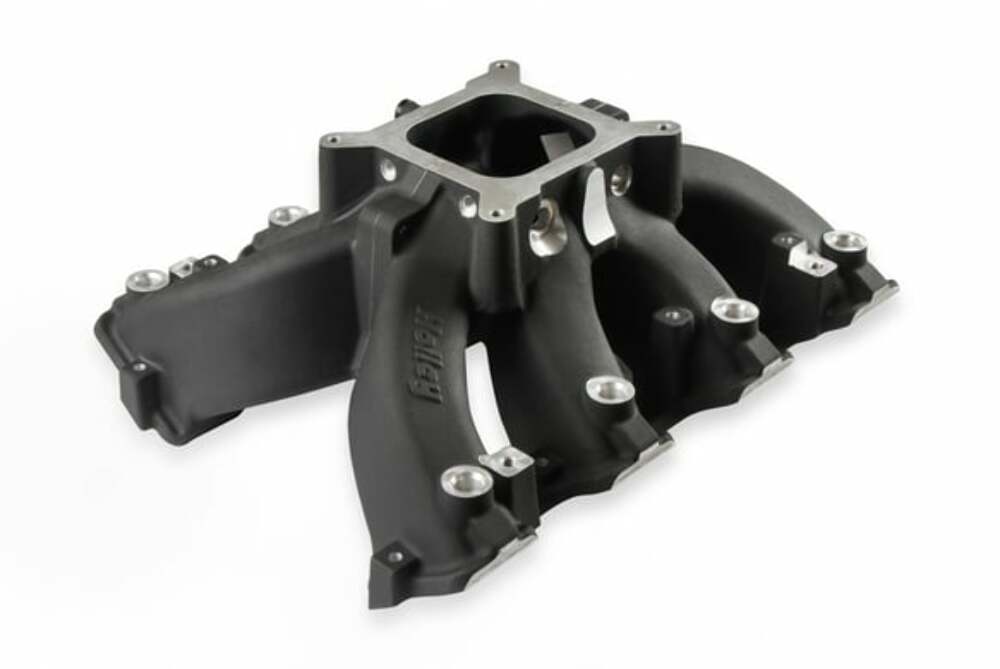

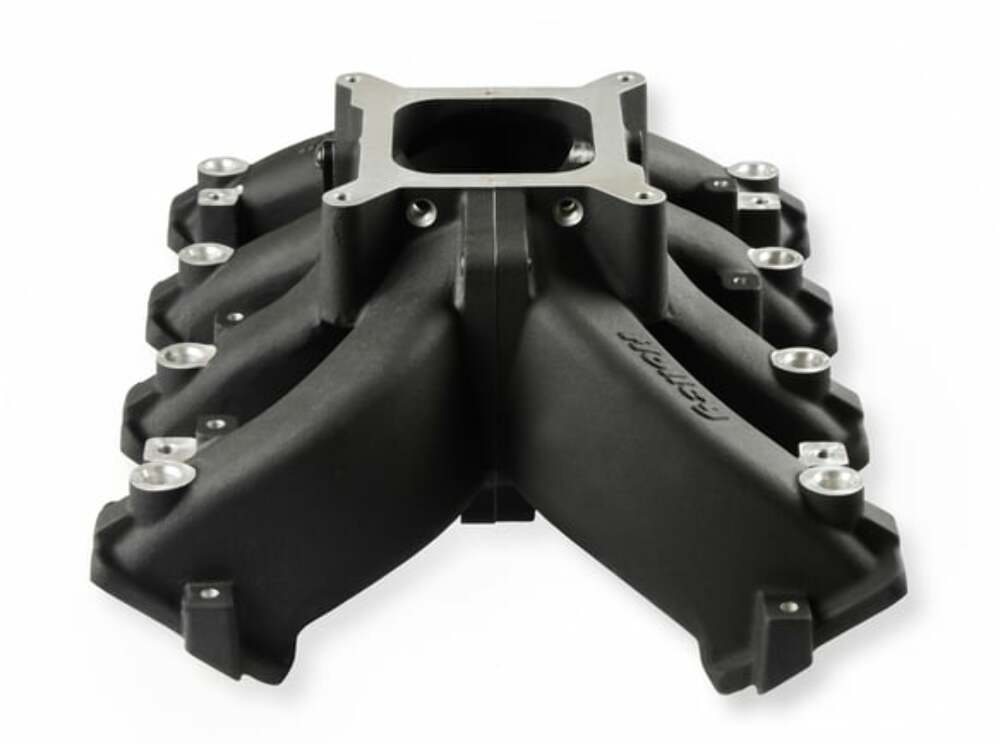

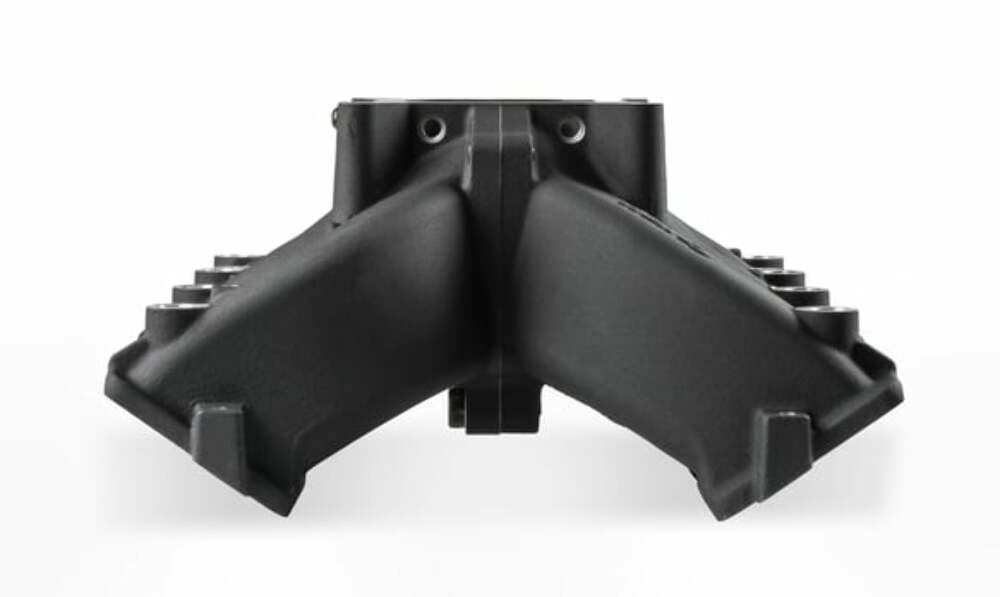

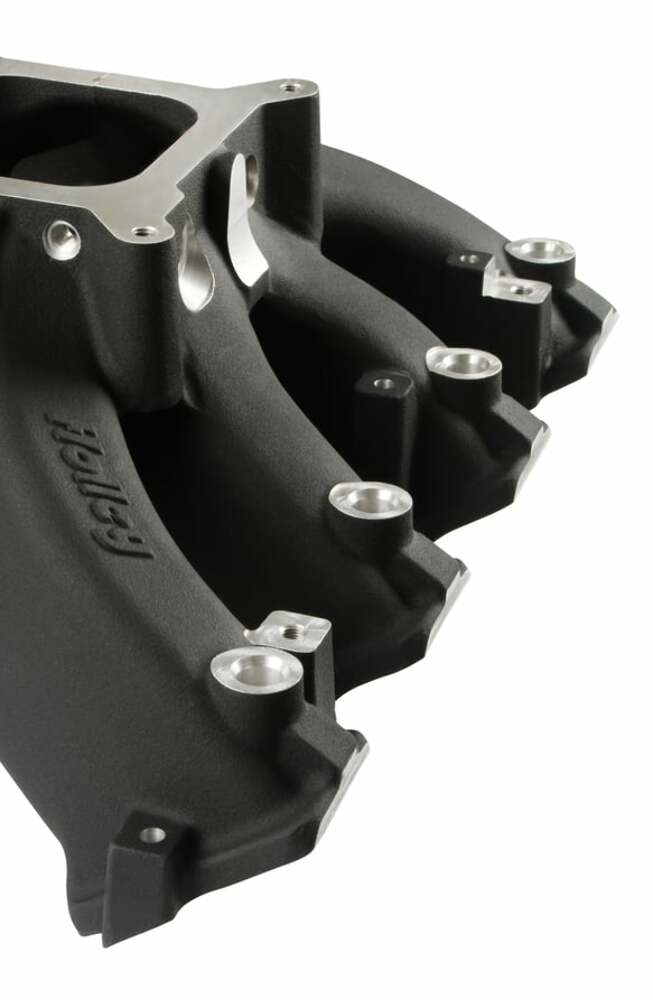

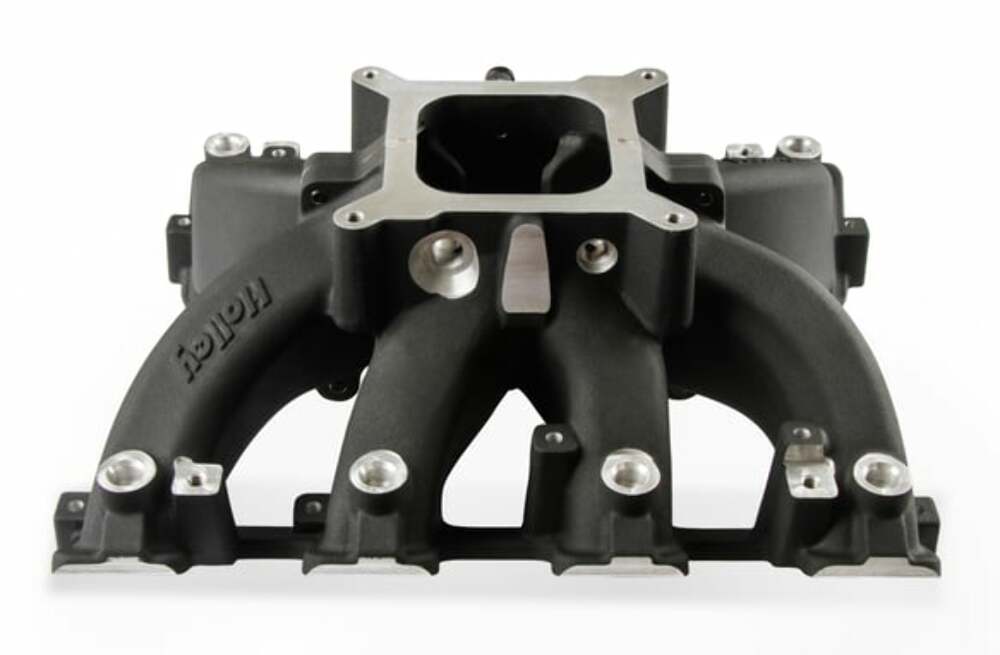

Holley Single Plane EFI Split-Design Intake Manifold GM LS3/L92 Black 300-290BK
Holley Single Plane EFI Split-Design Intake Manifold GM LS3/L92 Black 300-290BK
Regular price
$799.95 USD
Regular price
Sale price
$799.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Overview:

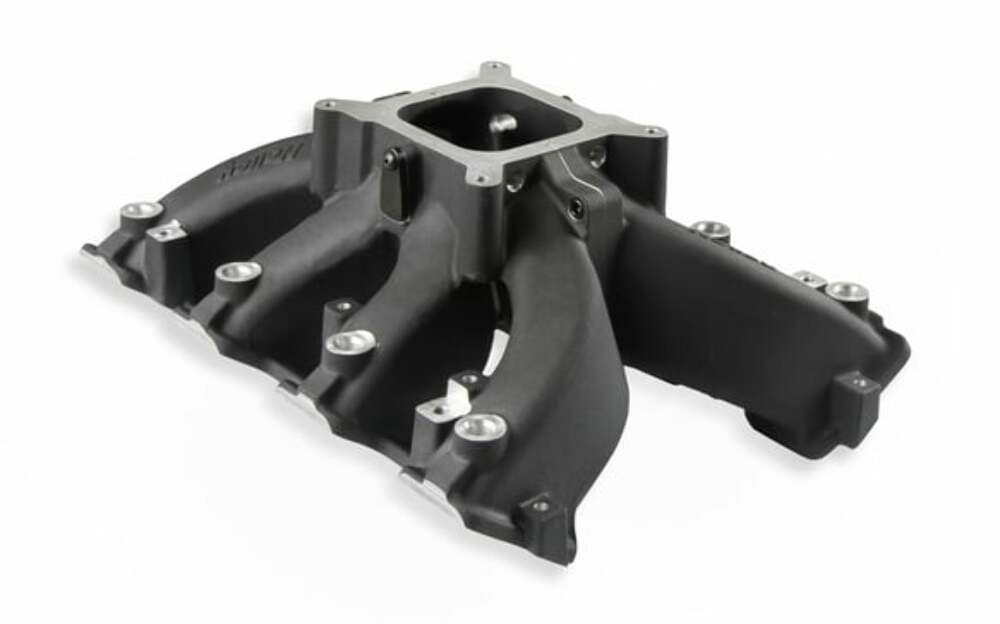

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.
The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.
The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.
Technical Data:
? A-B Height - 7.20" (0° carb flange angle)
? Port Size- 2.59" Height x 1.28" Wide

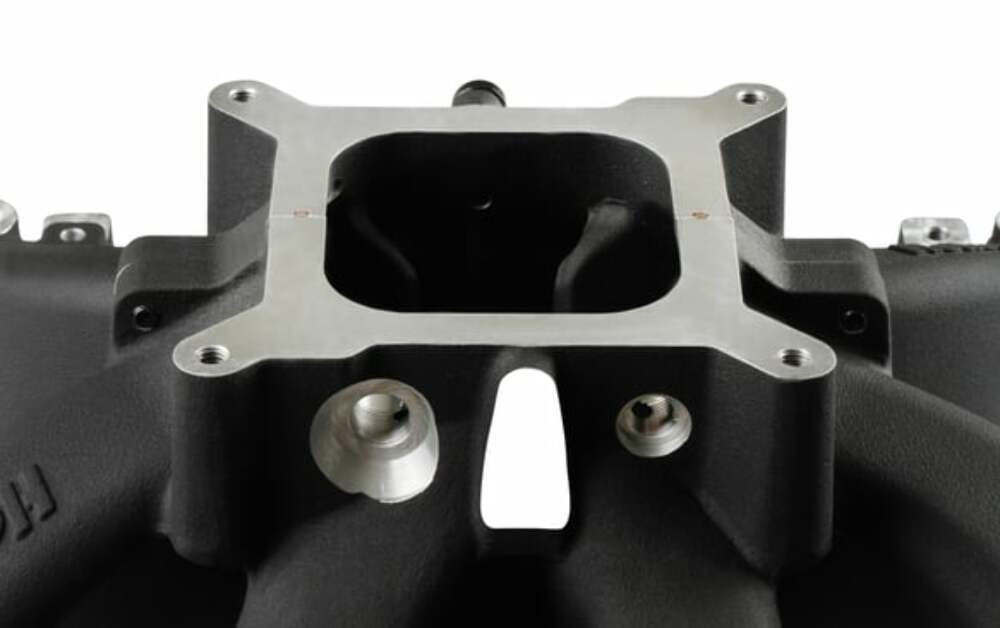

? Throttle Body Flange - Standard 4150 for up to 1-3/4" diameter throttle bores
? As-Cast Runner Cross-Sectional Area - 4.5 in² at the runner entry tapered to 3.2 in² at the flange exit
Features:
- Maximum performance race design with hood clearance consideration
- Lighter than other split race intakes
- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes
- Captured O-ring seals at head ports and split
- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

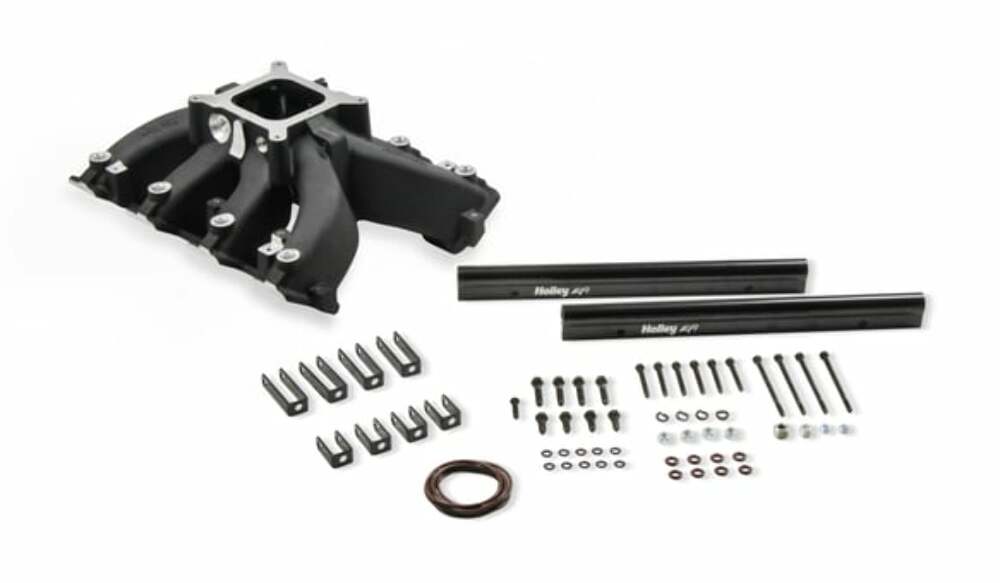

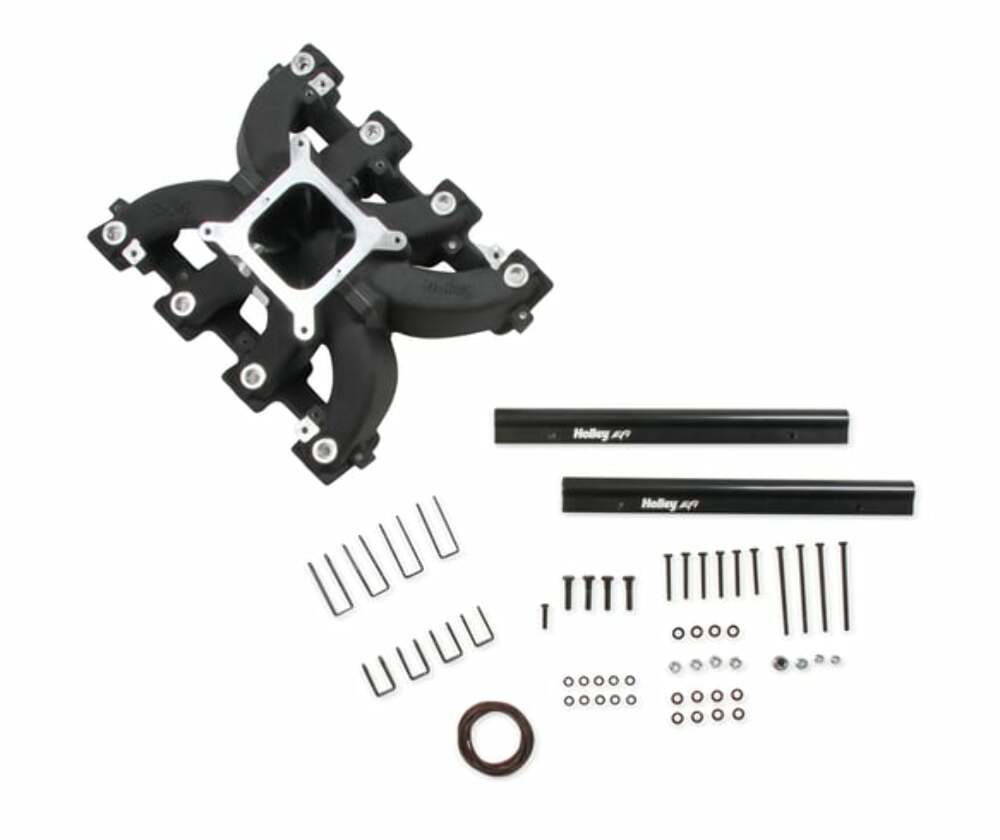

- Billet Fuel Rails and rail mounting hardware included.
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2008 - 2013 | Chevrolet | Corvette | 376/6.2L V8 | |
| 2010 - 2015 | Chevrolet | Camaro | 376/6.2L V8 | |
| 2014 - 2017 | Chevrolet | SS | 376/6.2L V8 | |
| 2007 - 2008 | Cadillac | Escalade | 376/6.2L V8 | |
| 2007 - 2008 | GMC | Yukon | 376/6.2L V8 | |
| 2007 - 2008 | GMC | Yukon XL 1500 | 376/6.2L V8 | |
| 2007 - 2008 | GMC | Sierra 1500 | 376/6.2L V8 | |
| 2007 - 2008 | Cadillac | Escalade ESV | 376/6.2L V8 | |
| 2007 - 2008 | Cadillac | Escalade EXT | 376/6.2L V8 | |
| 2008 | Chevrolet | Tahoe | 376/6.2L V8 | |
| 2008 | Hummer | H2 | 376/6.2L V8 | |
| 2009 | Pontiac | G8 | 376/6.2L V8 |
Specs:
| Barrels | 4 |
|---|---|
| Brand | Holley |
| Color | Black |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Black |
| Flange Style | 4150 Square Bore |
| Front Height | 7.32" |
| Fuel System Type | EFI |
| Manifold Type | Split Single Plane |
| Product Type | Manifold |
| Rear Height | 7.32" |
| RPM Power Band | 2500-7000 |
| Warranty | Limited 90 Day |
