Holley In-Tank RetroFit Fuel Module 525 LPH Returnless Style 12-135
Holley In-Tank RetroFit Fuel Module 525 LPH Returnless Style 12-135
Regular price
$855.95 USD
Regular price
Sale price
$855.95 USD
Unit price
per
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:
525 LPH Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump.
NOTES: It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
Features:
- Retrofit Fuel Module 525 LPH-Returnless Style
- Installs in any fuel tank from 8? to 12? deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

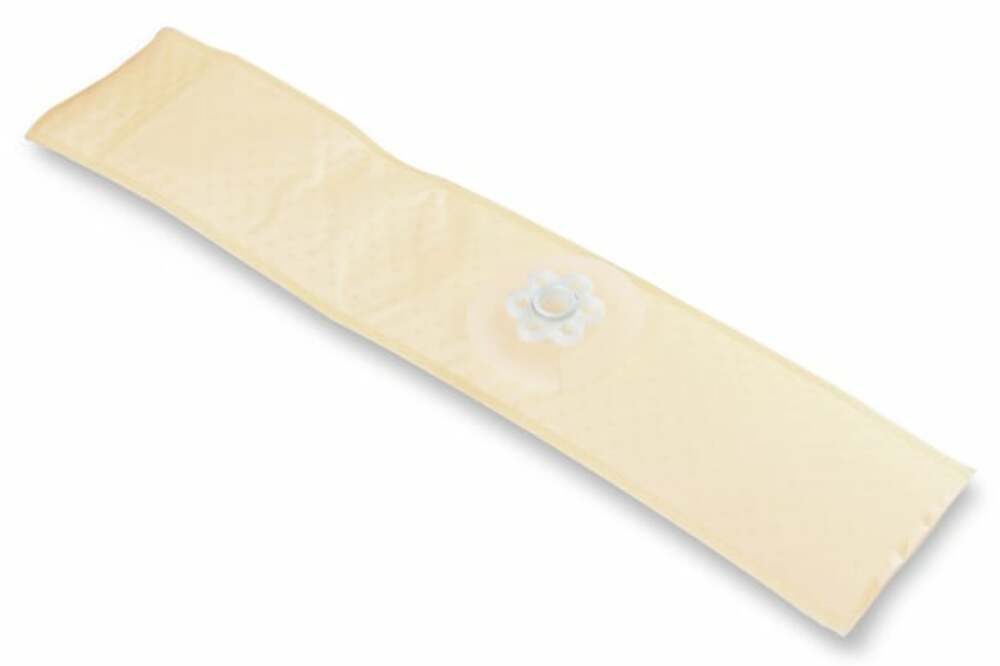

- Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3? x 15? HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ?? NPT ports for a wide variety of plumbing options
- Optional roll over valve available
Specs:
| Application | Universal |
|---|---|
| Average Current Draw | 16.9Ampere |
| Average Flow Rating | 525Liters per Hour |
| Brand | Holley |
| Clearance Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Discount Percentage | 26-50% |
| Emission Code | 5 |
| Free Flow LPH | 525 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | E85, Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Foam |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | 1/4Inch |
| Inlet Quantity | None |
| Inlet Type | NPT |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Material | Billet Aluminum |
| Maximum Pressure | 60Pounds per Square Inch |
| Minimum Fuel Tank Depth | 8 Inches |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| NPT Thread | 1/4 NPT |
| Outlet Fitting Thread Size | 1/4Inch |
| Outlet Quantity | One |
| Outlet Type | NPT |
| Product Type | Fuel Pump Module |
| Pump Type | Electric |
| Regulator Included | Yes |
| Sale Category | Air and Fuel Delivery |
| Top Mount Diameter | 5Inch |
| Universal Or Specific Fit | Universal |
| Voltage | 12Volts DC |
| Warranty | Limited 90 Day |
| Wire Harness Included | Yes |
| Wire Quantity | 2 |
