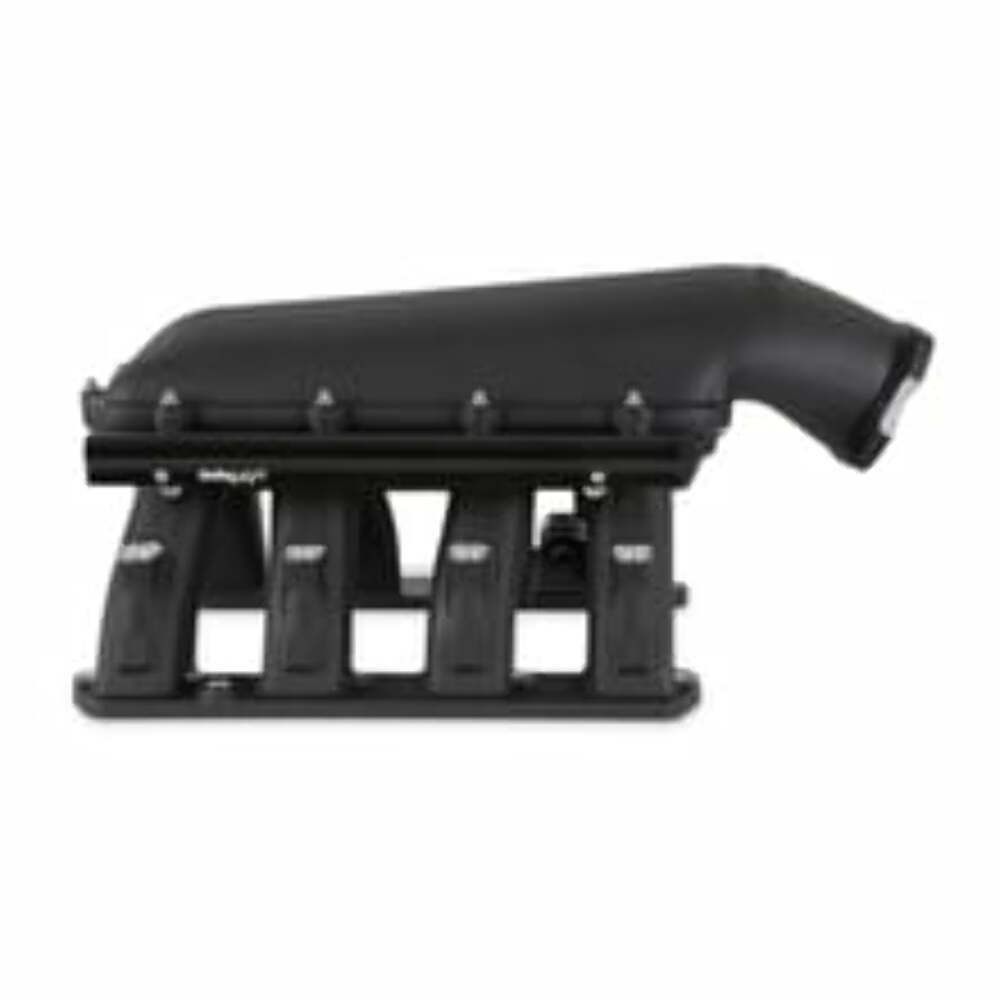

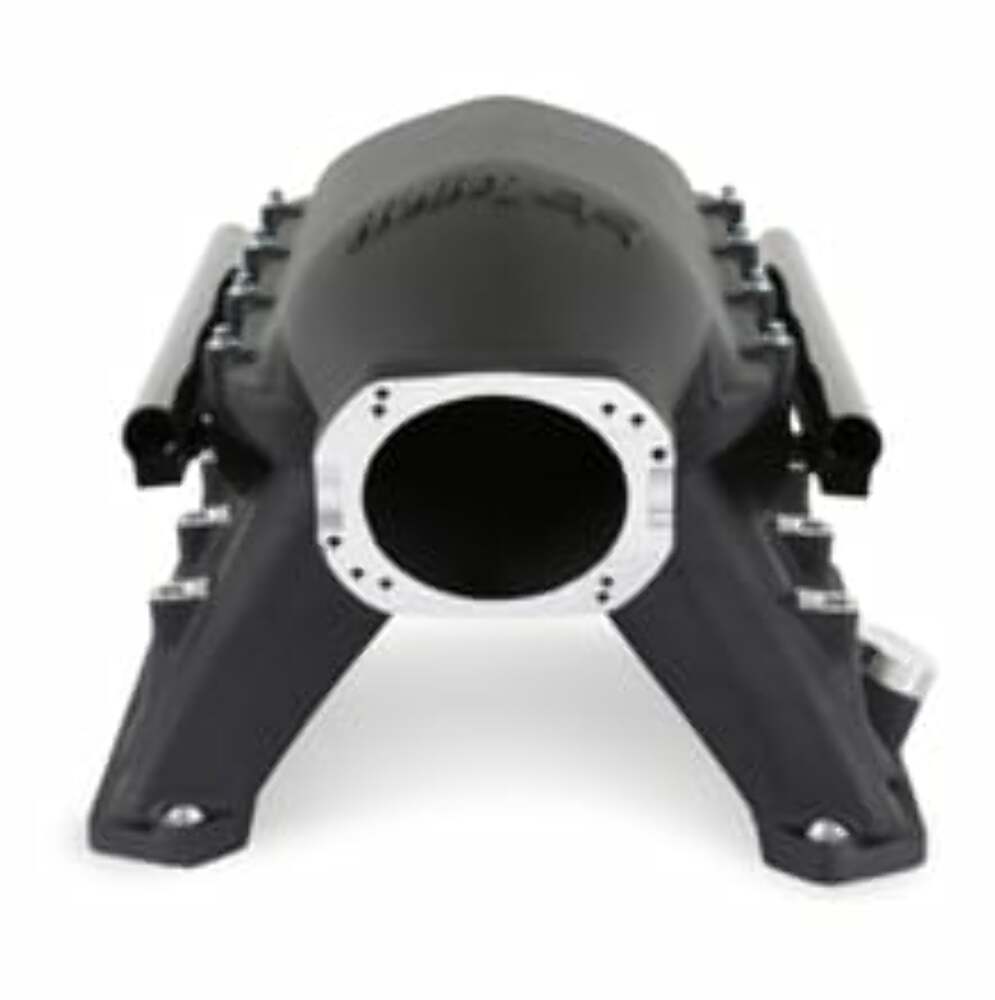

Holley Gen III Hemi Hi-Ram EFI Manifold 300-658BK
Holley Gen III Hemi Hi-Ram EFI Manifold 300-658BK
Regular price
$1,299.95 USD
Regular price
Sale price
$1,299.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!

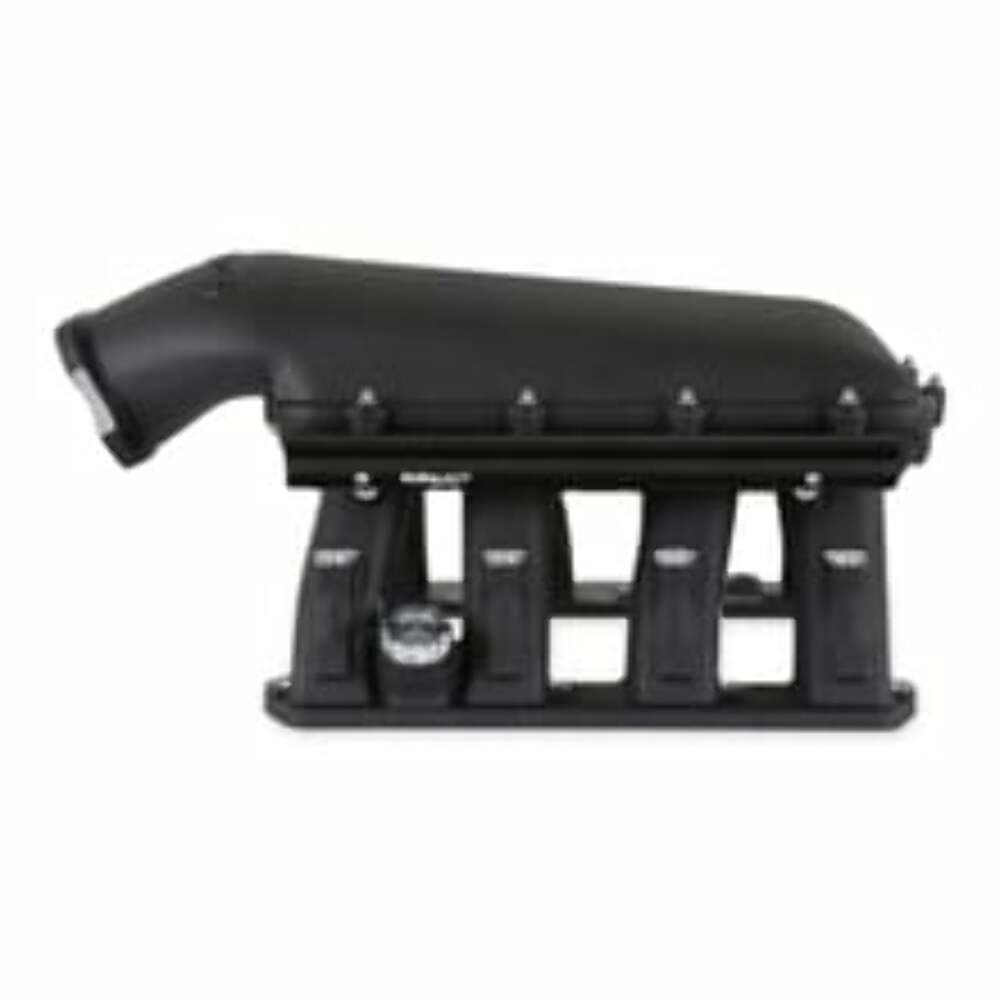

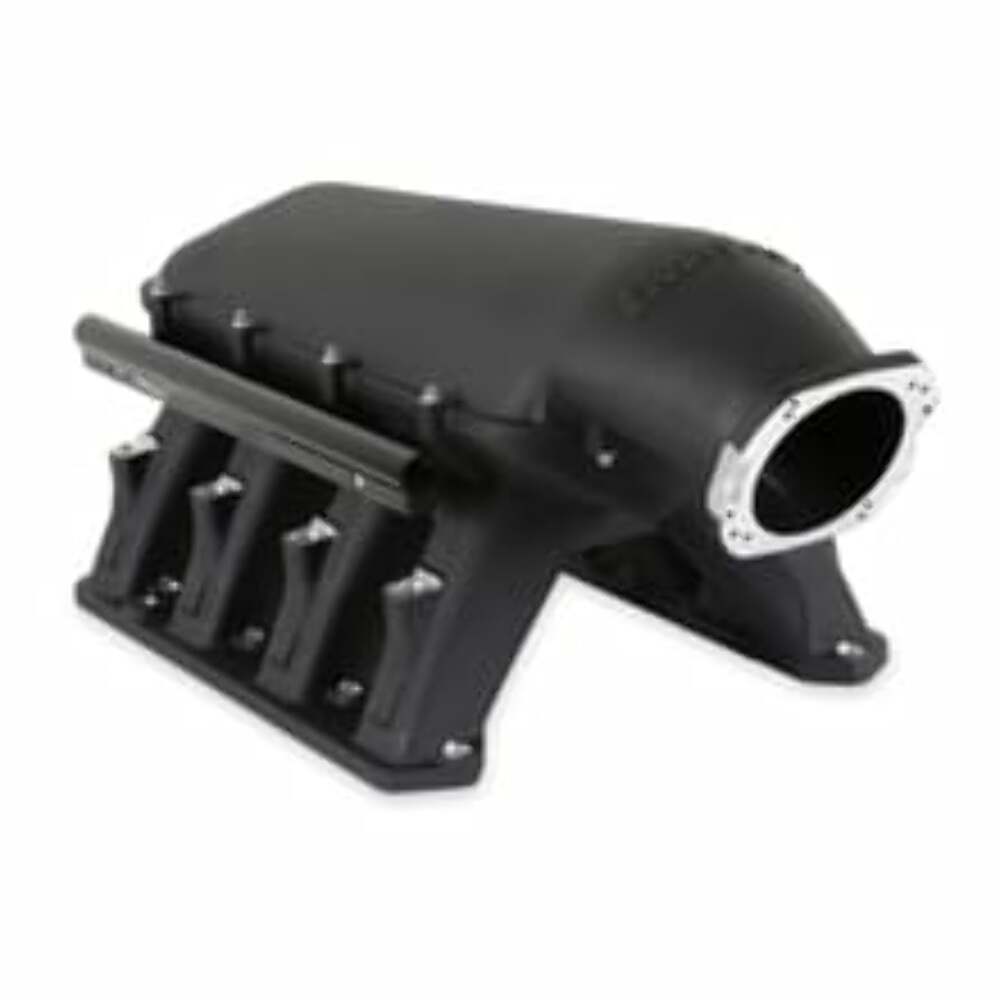

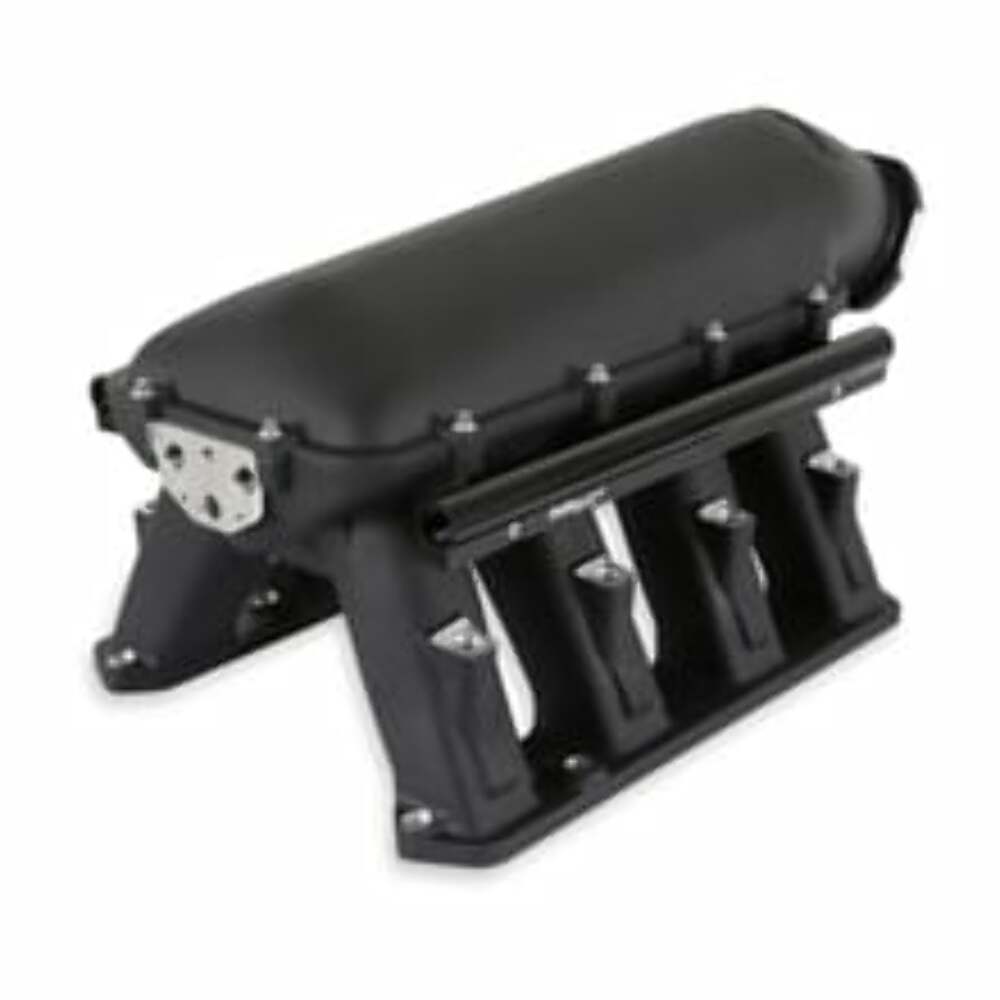

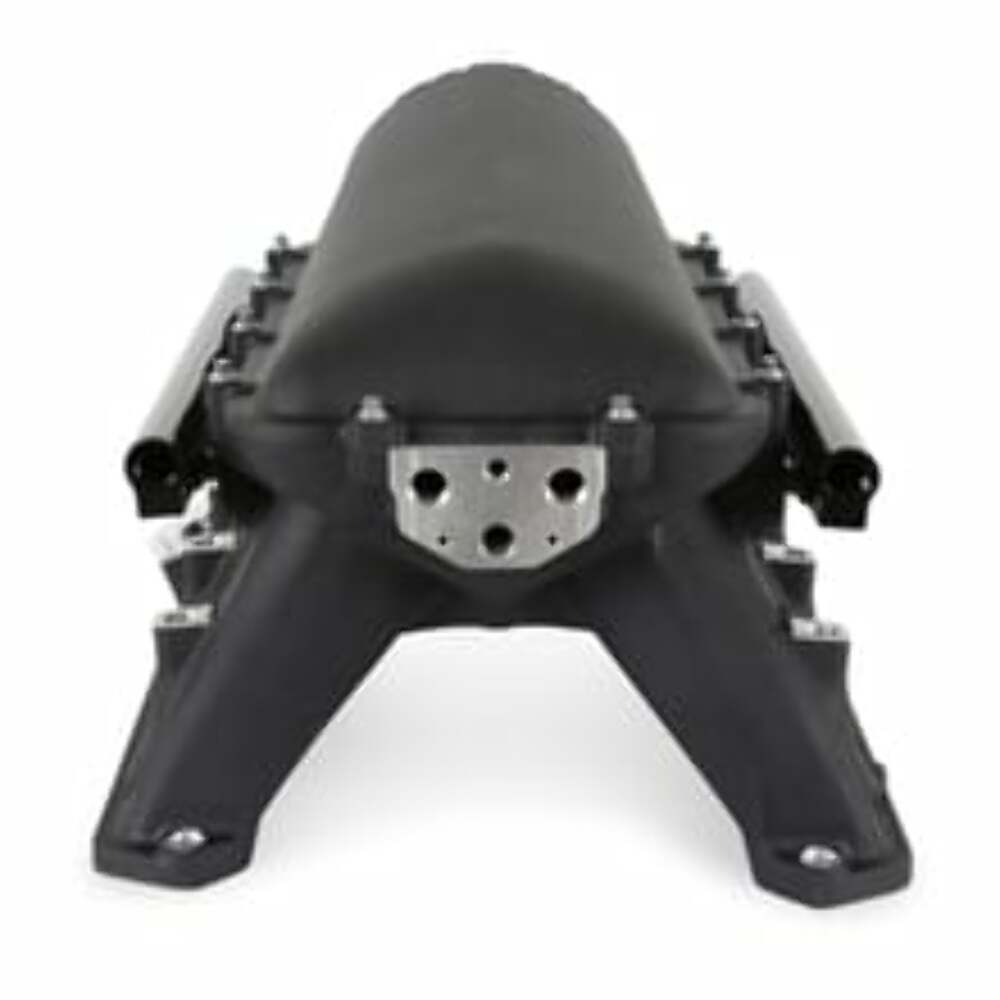

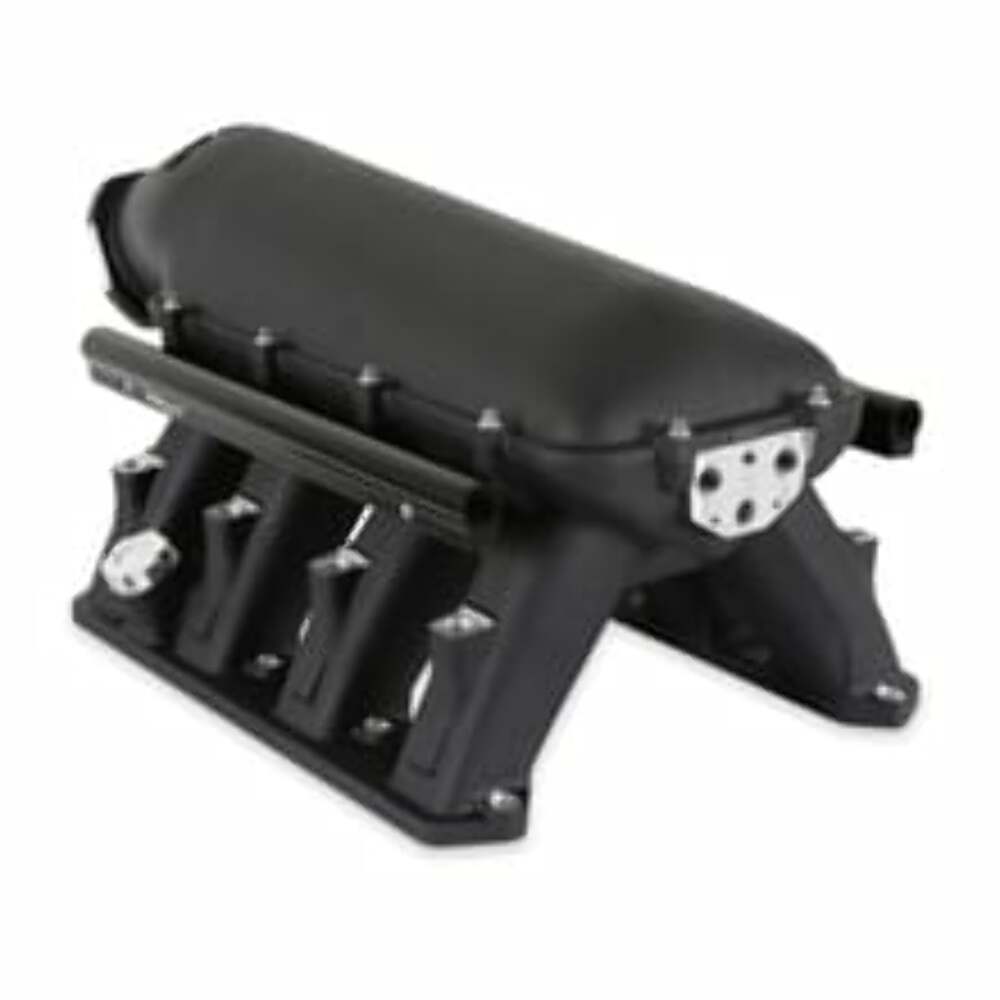

Gen III Hemi EFI for use with 80 and 92mm Mopar Style Throttle Body - Black Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L
Features:
- Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
- Fits Gen III Hemi Engines w/ Large Intake Ports (1.70? Height x 1.88? Wide) ? fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
- Cast Aluminum Construction w/ Natural Satin or Black Finish
- Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations

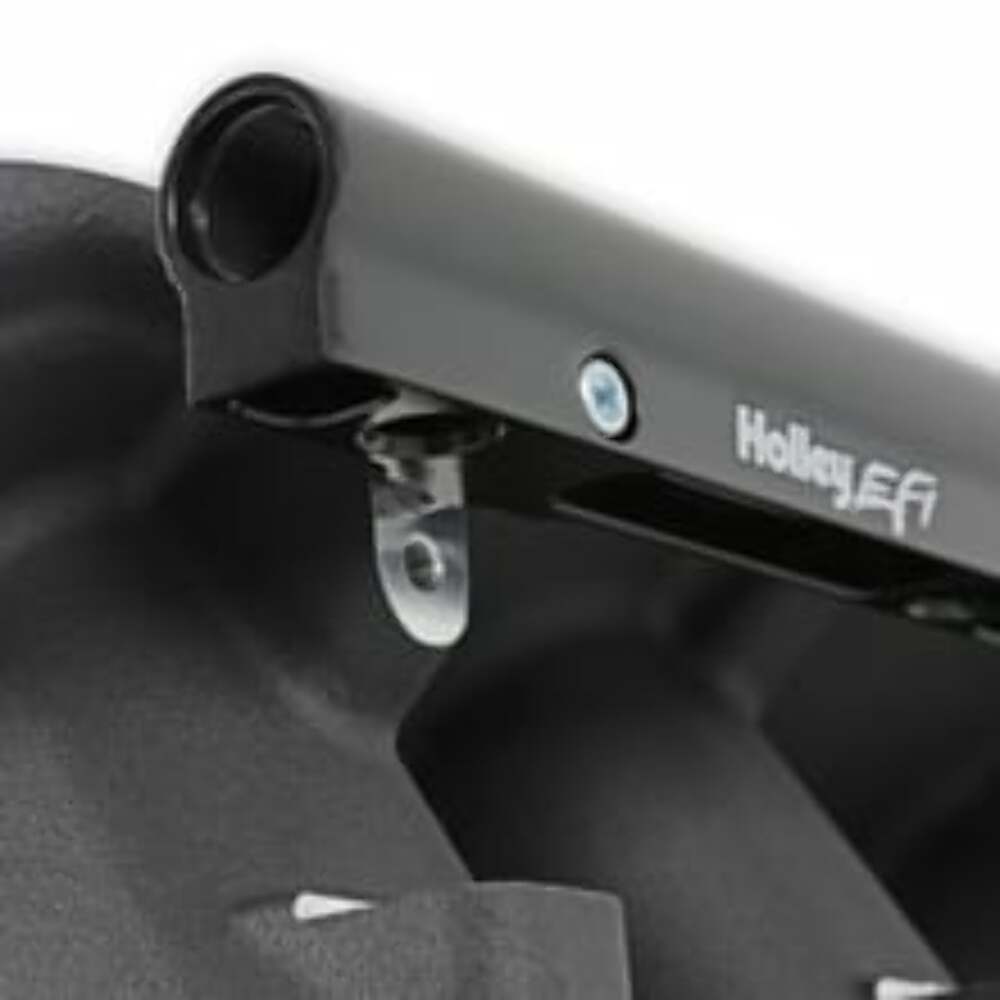

- Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
- Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
- O-Ring Seal to Head ? Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
- Billet Oil Fill Cap ? Attractive Low Profile Design
- Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings

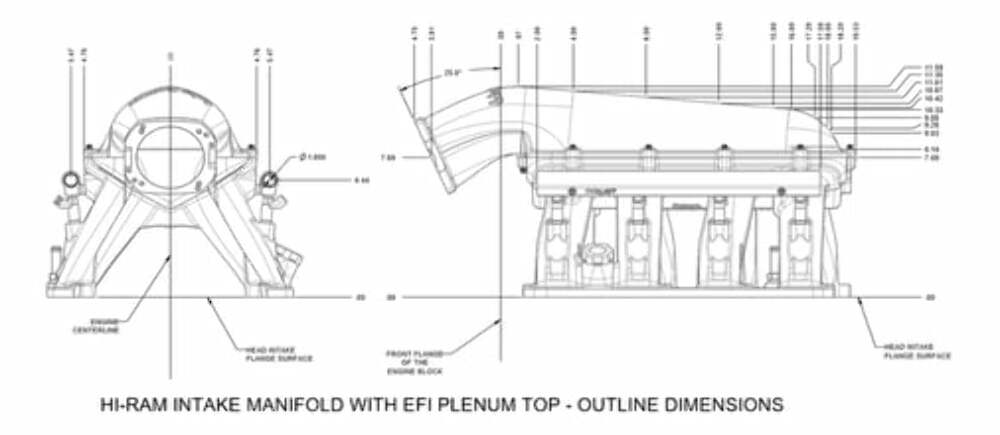

- Overall Height: 11.59?
- Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
- Cast-In Pads for Adding Nitrous Nozzles

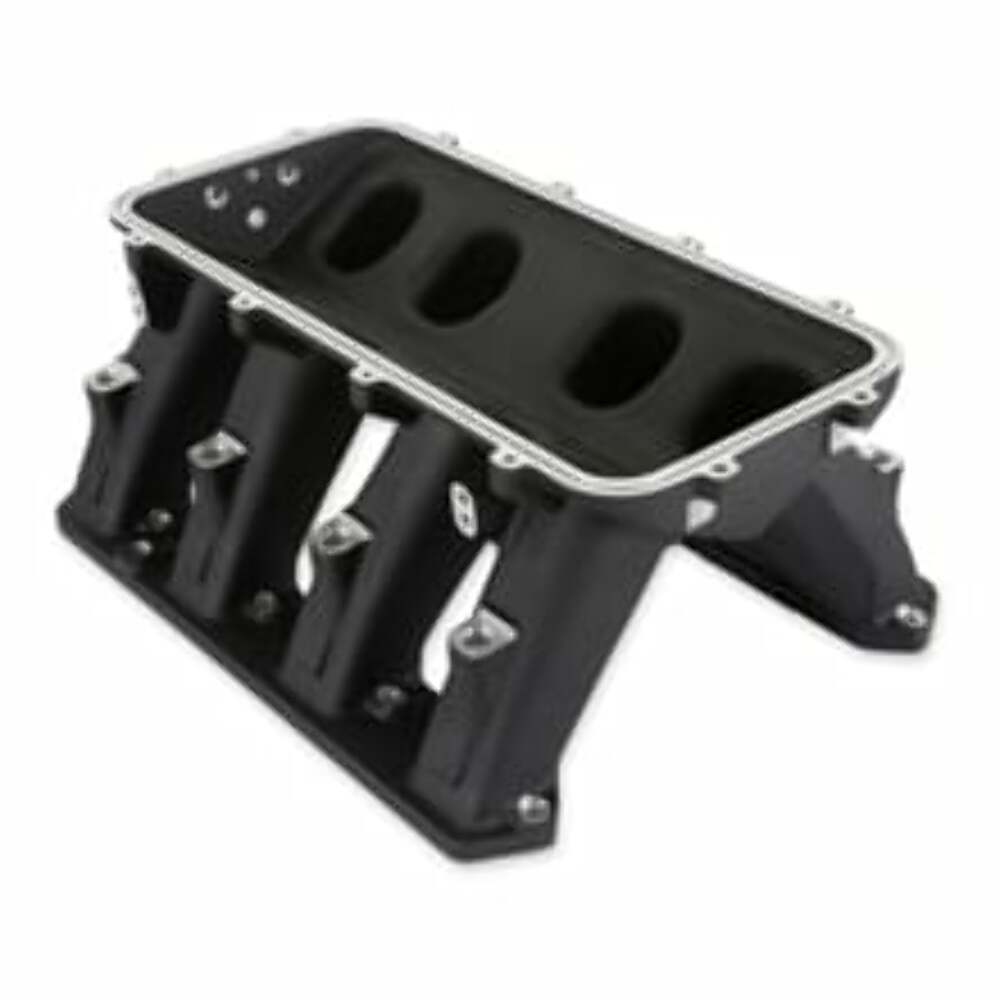

- Manifold Base ? Available Separately for Custom Induction Systems
Specs:
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Color | Black |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GEN 3 HEMI |
| Finish | Black |
| Flange Style | EFI |
| Front Height | 11.59 inch |
| Front Maximum Height | 11.59 IN |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Injector Style Provision | EV-1, Gen III Hemi |
| Inlet Size | 95mm |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Port Size | 1.70" x 1.88" |
| Product Type | Intake Manifold |
| Rear Height | 10.35 inch |
| Rear Maximum Height | 10.35 IN |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| RPM Power Band | 1500-7000 RPM |
| Runner Length | 6.65 inch |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Throttle Body Bore Diameter | 95 MM |
| Throttle Body Included | No |
| Throttle Bore | 95mm |
| Type of Component | Intake Manifold |
| Vacuum Ports | (2) 3/8" NPT & (1) 1/4" NPT |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
Application:
