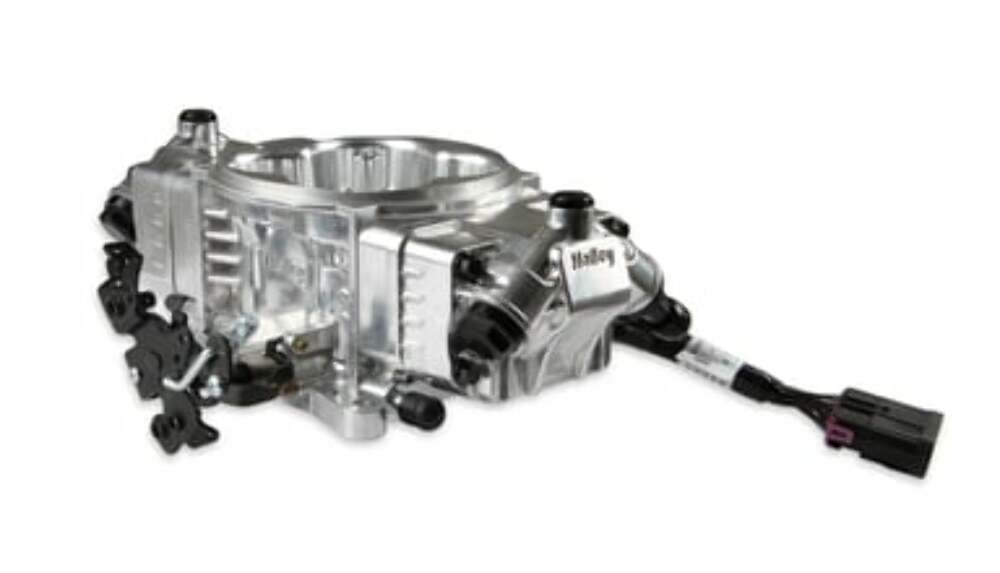

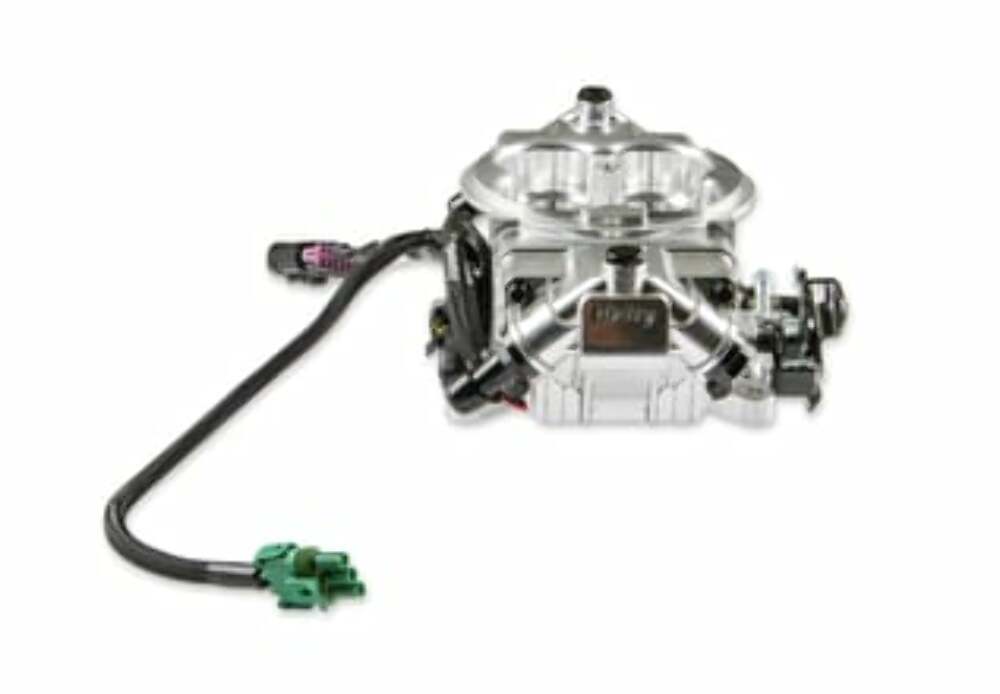

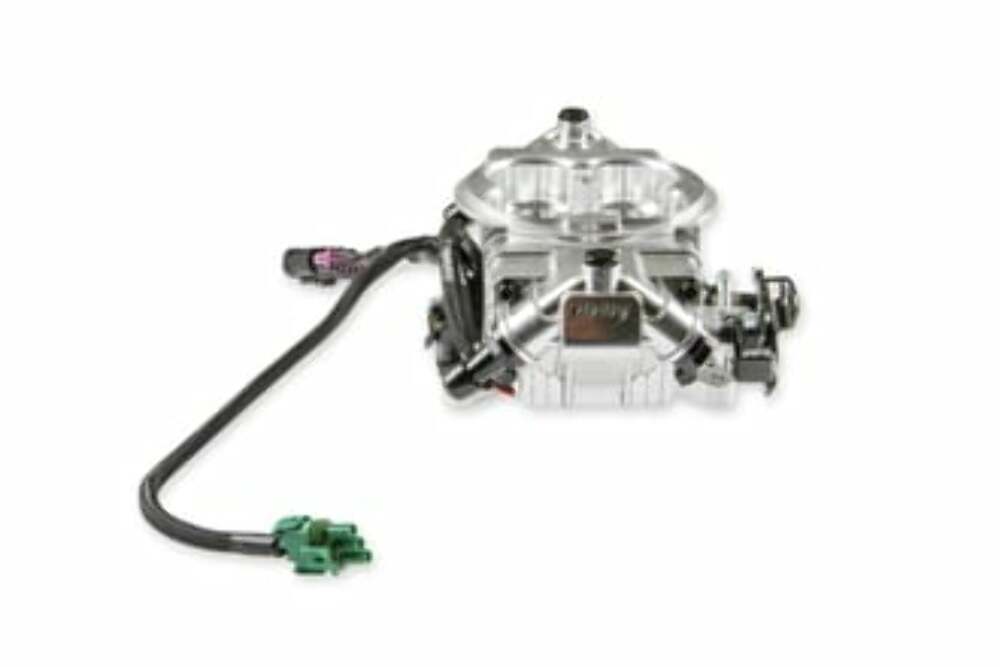

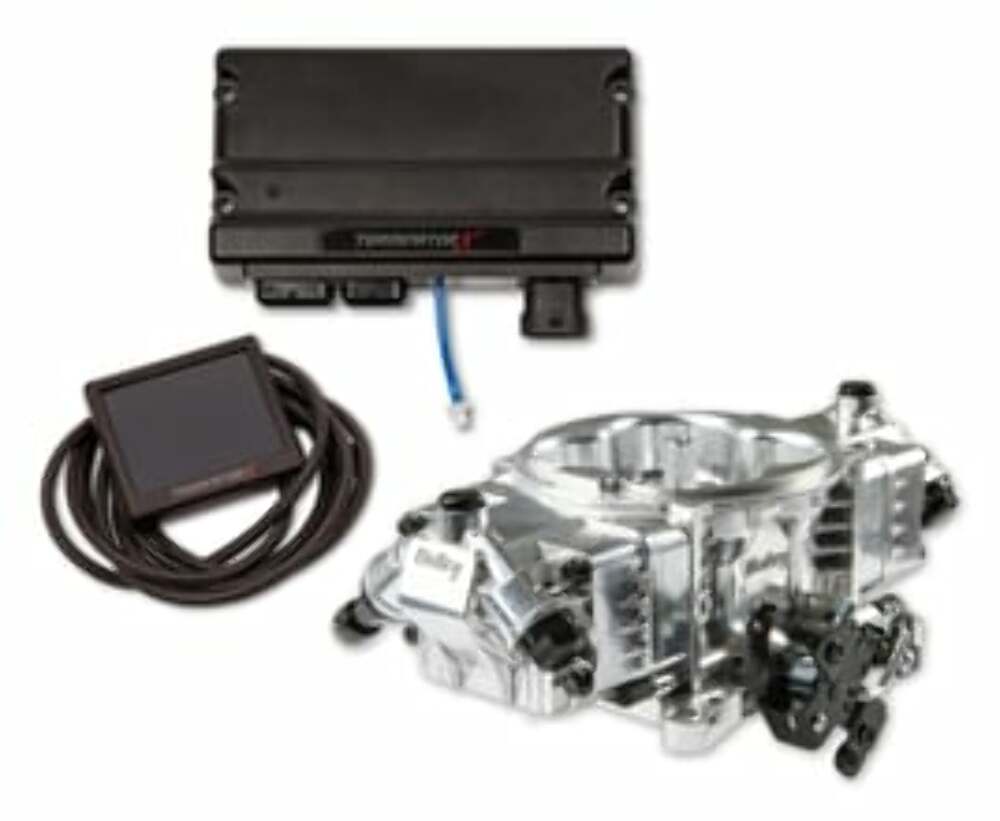

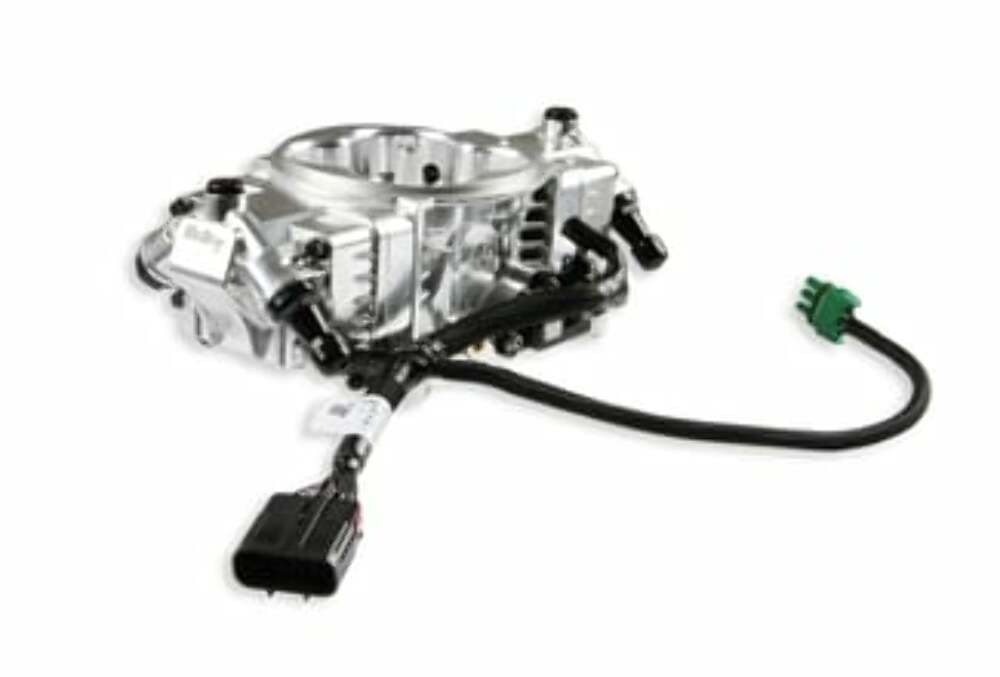

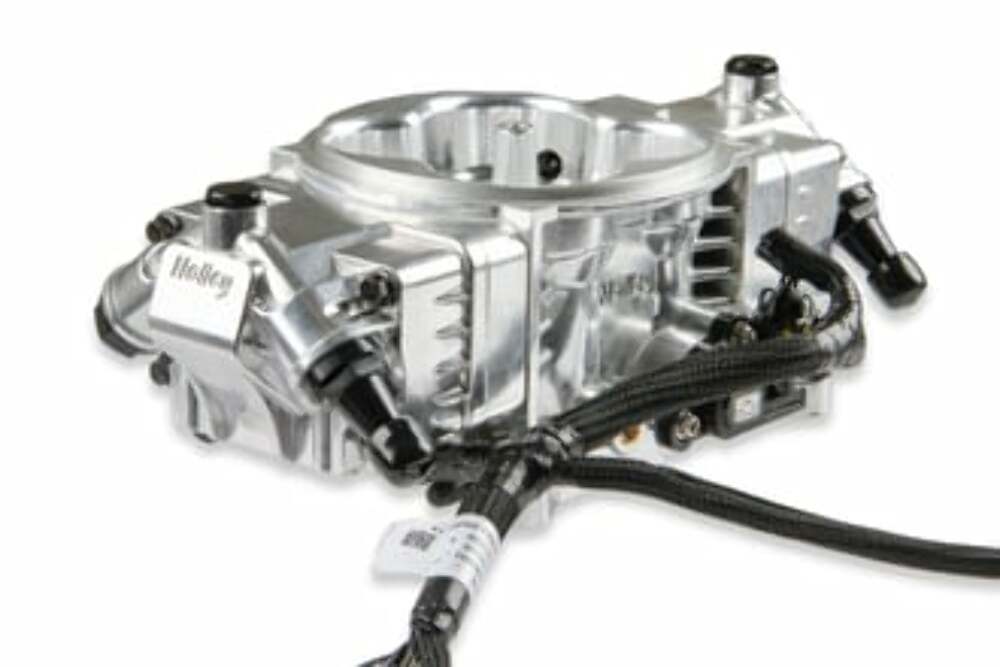

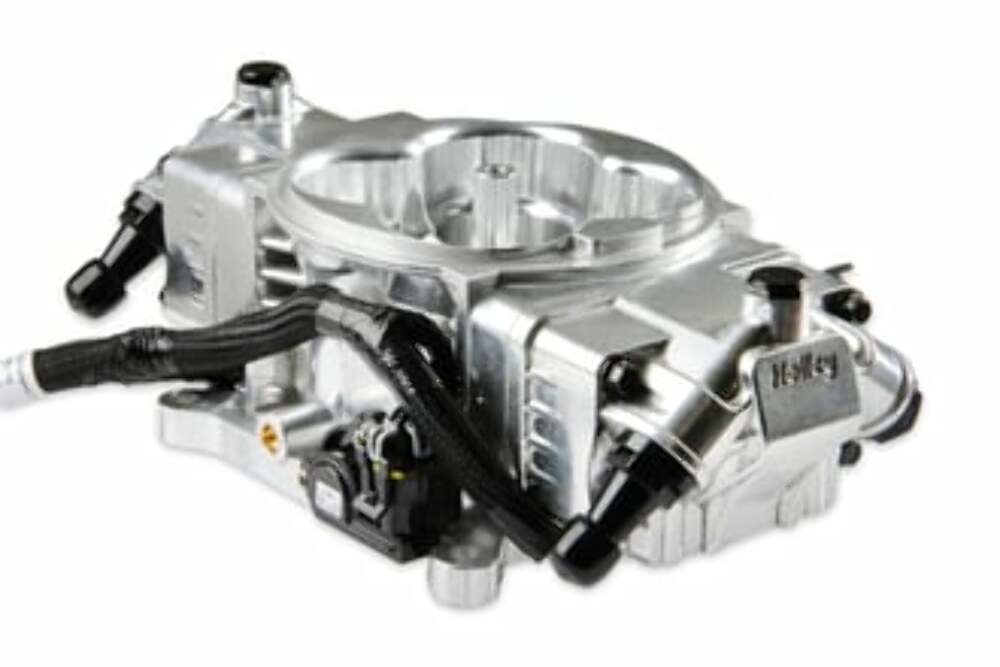

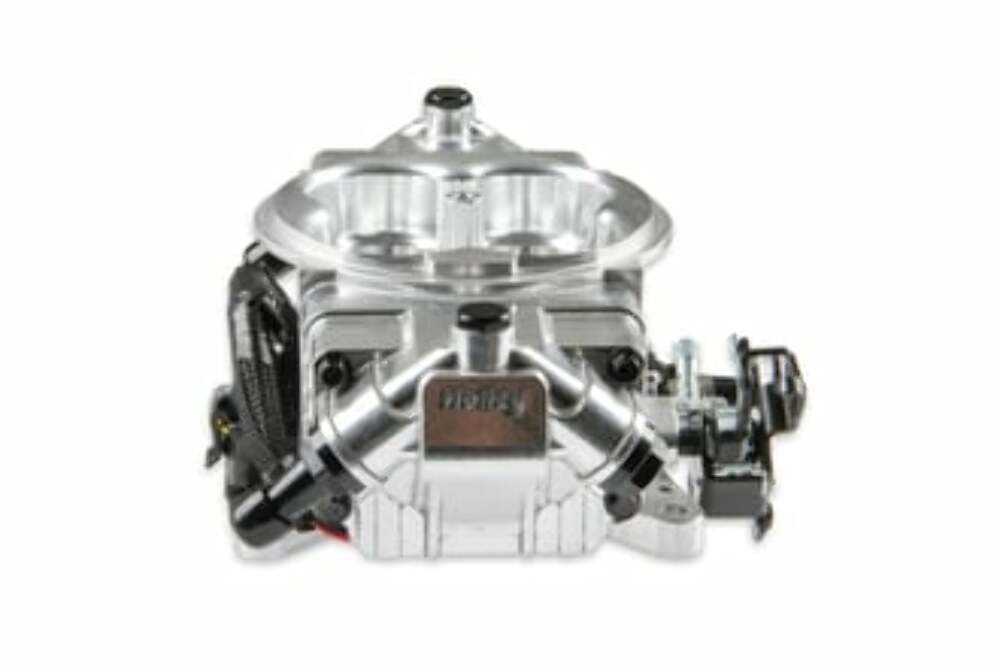

Holley EFI Terminator X Stealth GM LS 4150 - Shiny 550-1020
Holley EFI Terminator X Stealth GM LS 4150 - Shiny 550-1020
Regular price
$2,249.95 USD
Regular price
Sale price
$2,249.95 USD
Unit price
per
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:
24X Crank - 4 Injectors - 650 HP
Features:
- Terminator X Stealth 4150 Kits for either 24x or 58x LS engines
- Supports up to 650HP with Four 100lb./hr. Injectors
- Terminator X Max kits provide plug and play Transmission control for GM Transmissions
- Internal 1bar MAP sensor, built into the Terminator X ECU.

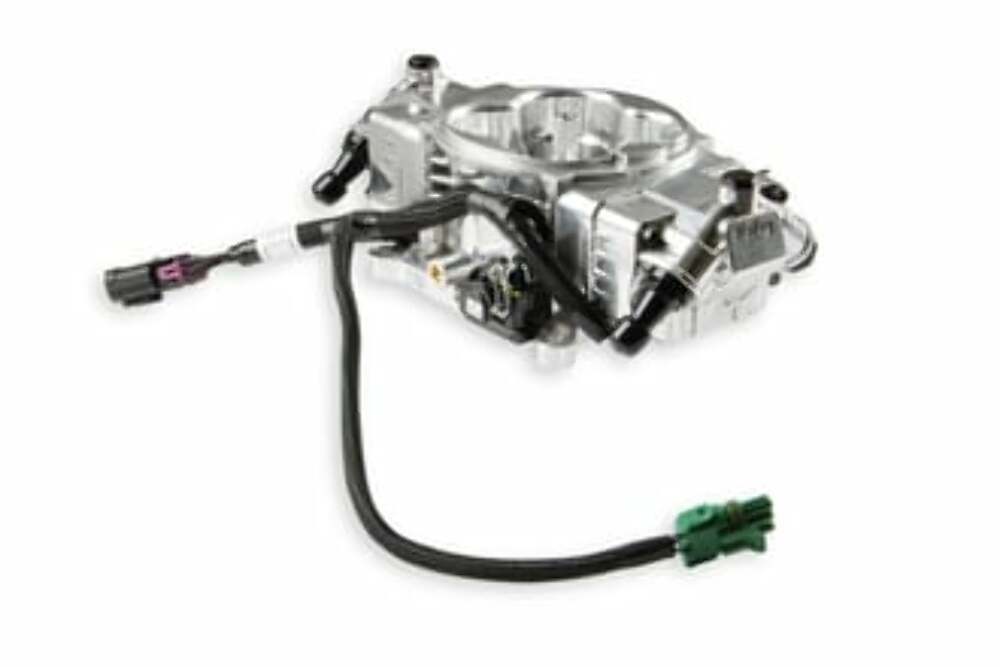

- All of the wiring exits below the fuel injector bowls, for a completely stealth installation
- Air entry machined to fit most stock style air cleaners with air cleaner locator provisions
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886
- Integrated ignition timing control ?"Plug and play with factory LS coil sub harness and OEM LS coils ?" no external boxes/modules needed to run Coil Near Plug
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- Self-tuning ECU means you don?™t have to be a computer/tuning wiz to have EFI!
- 4 Inputs ?" 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
- 4 Outputs ?" Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC, for years of dependable service
- Available in 3 finishes: Shiny, Black and Gold
- Compatible with Holley EFI digital dashes, gauges and fuel system accessories
Specs:
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| CFM | 950 |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Shiny |
| Crank Reluctor | 24x |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Size | 4150 |
| Flange Style | Squarebore |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Ignition Timing Control | Yes |
| Ignition Type | GM LS 24x |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 6AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 650 |
| Multi-Stage Nitrous Control | Yes |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 1.75 in. |
| Throttle Position Sensor Included | Yes |
| Transmission | N/A |
| User-Tuneable | Yes |
| Warning | California Proposition 65 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
