Holley EFI 12.3" Pro Dash 553-111
Holley EFI 12.3" Pro Dash 553-111
Regular price
$2,049.95 USD
Regular price
Sale price
$2,049.95 USD
Unit price
per
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:

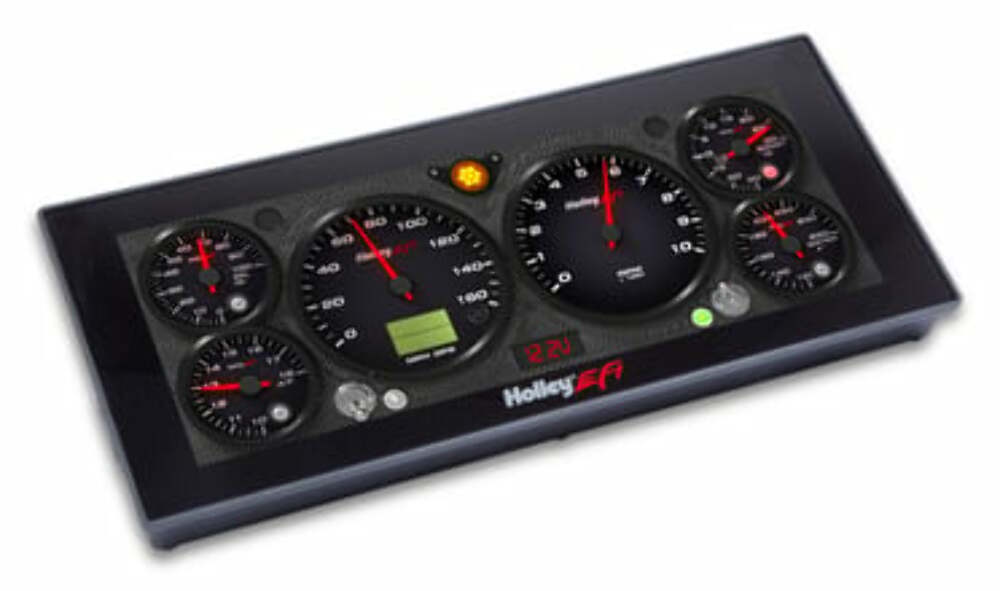

The Holley EFI 12.3" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system.
Features:
- Plug-and-play display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2)1
- Real-time ECU tuning allows you to make quick tune changes without needing to hook up a laptop2
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost3
- 16 default background skins pre-loaded with unlimited options for importing custom layouts4
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)5
- Virtual switch panel eliminates the need for external toggle switches6
- Manual or auto-brightness features for easy viewing day or night7
- Built-in GPS with odometer function (antenna included)8
- On-screen datalog playback features allows you to review vital run information9
- Expandable storage via USB10
- No stylus required - utilizes capacitive touch just like your smart phone11
- User definable channel alarms and warnings12

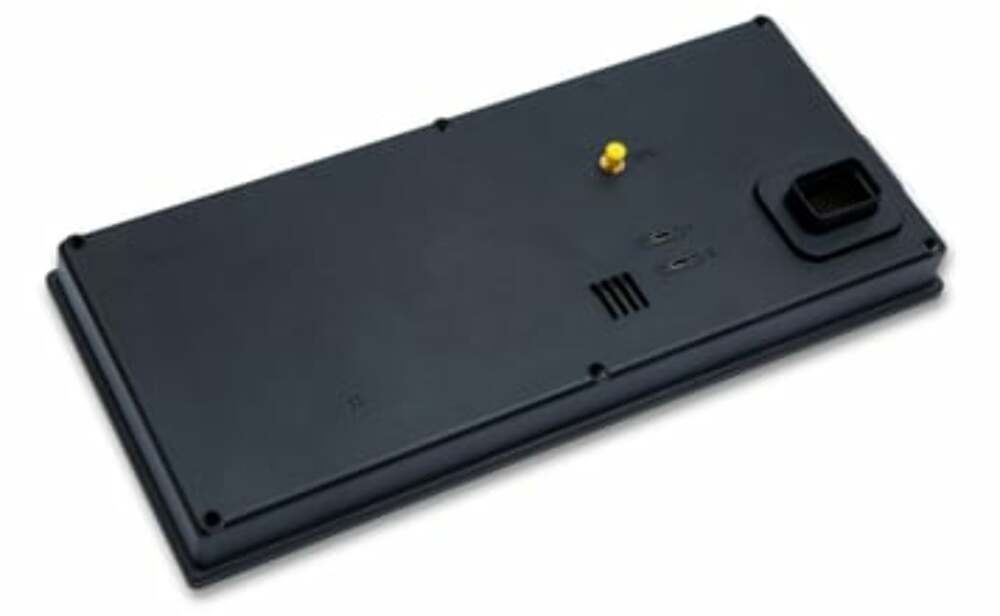

- 6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included13

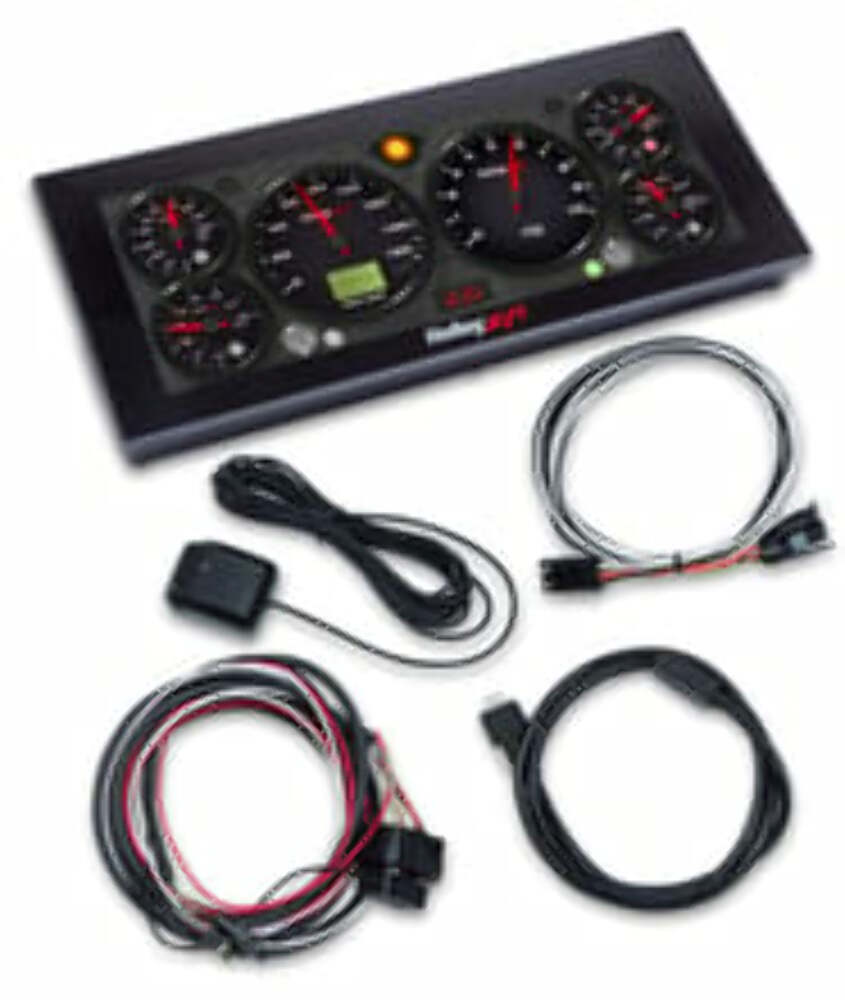

- Includes everything needed for installation14
- USB keyboard and mouse functionality makes it quick and easy to setup new layouts15
- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections16
- Input and output functionality for 13 multi-configurable inputs and 4 ground switched outputs17
- User defined alarms for any input18
- Upgradable with future software enhancements19
- Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall20
- Dash weight - 3.29lbs21
- Compatible with our Plug-and-Play Programmable Shift Light - Part Number 553-10722
Specs:
| Analog Or Digital | Digital |
|---|---|
| Bezel Color | Black |
| Brand | Holley EFI |
| Depth | 1.25" |
| Emission Code | 5 |
| Face Color | Programmable |
| Font Color | Programmable |
| Grade Type | Performance |
| Height | 5.81" |
| Illuminated | Yes |
| Maximum Gauge Diameter | Programmable |
| Minimum Gauge Diameter | Programmable |
| Pointer Color | Programmable |
| Product Type | 12.3" Digital Dash |
| Sale Category | Gauges and Gauge Accessories |
| Screen Size | 12.3" Viewing Area |
| Screen Type | Capacitive Touch Screen |
| Terminal Gender | Female |
| Universal Or Specific Fit | Universal |
| Warning | California Proposition 65 |
| Width | 13.44" |
| Wiring Harness Included | Yes |
