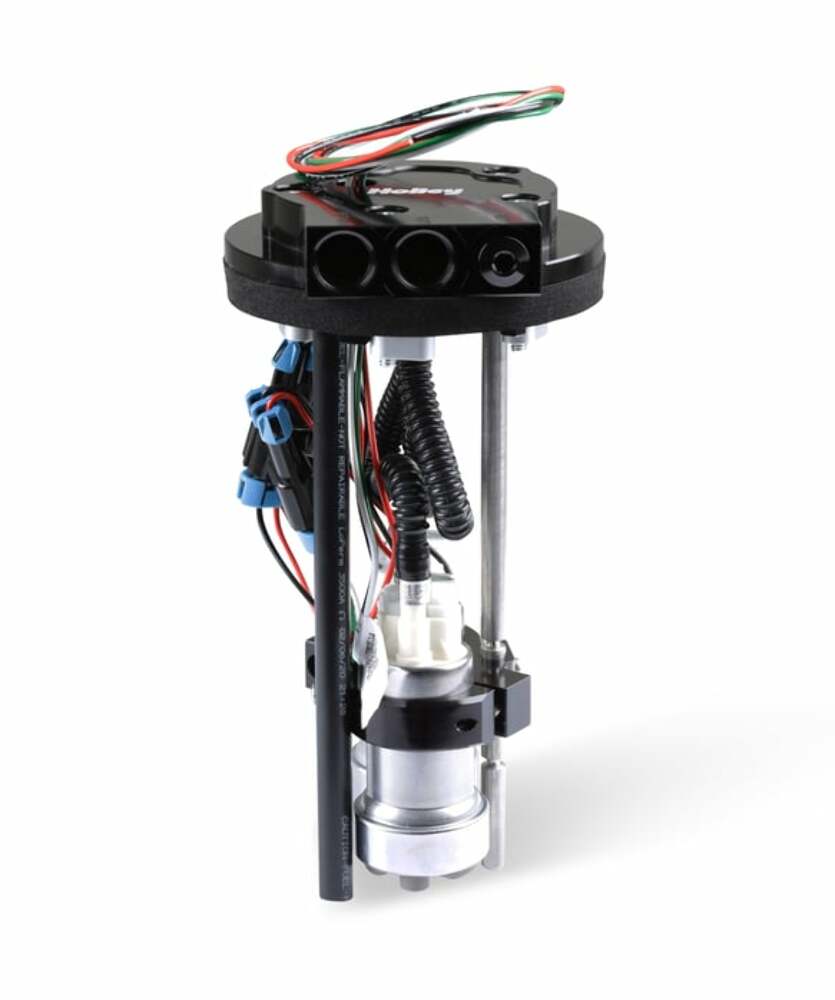

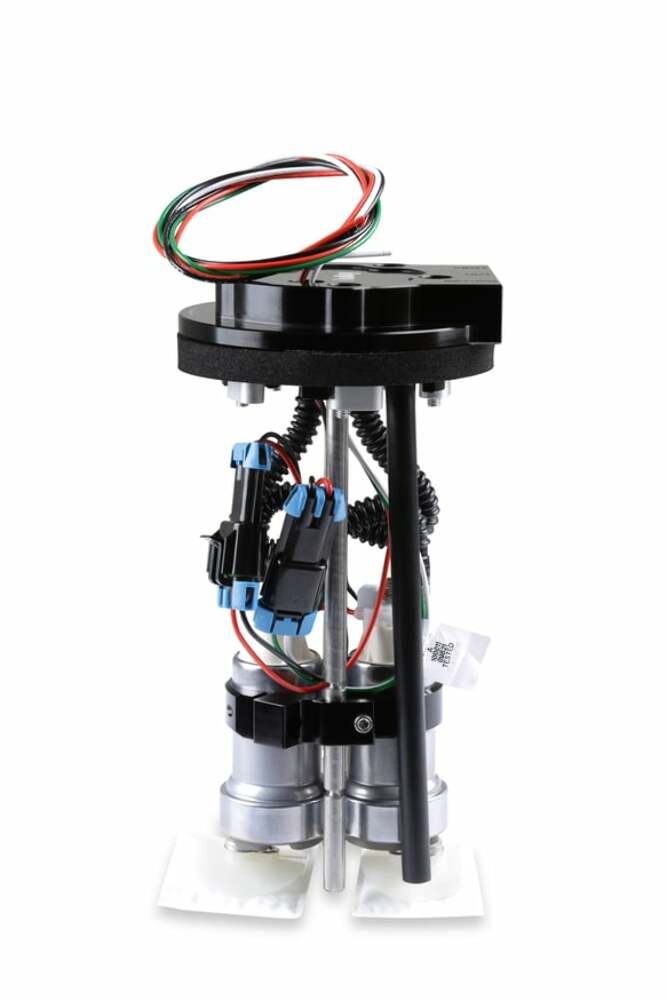

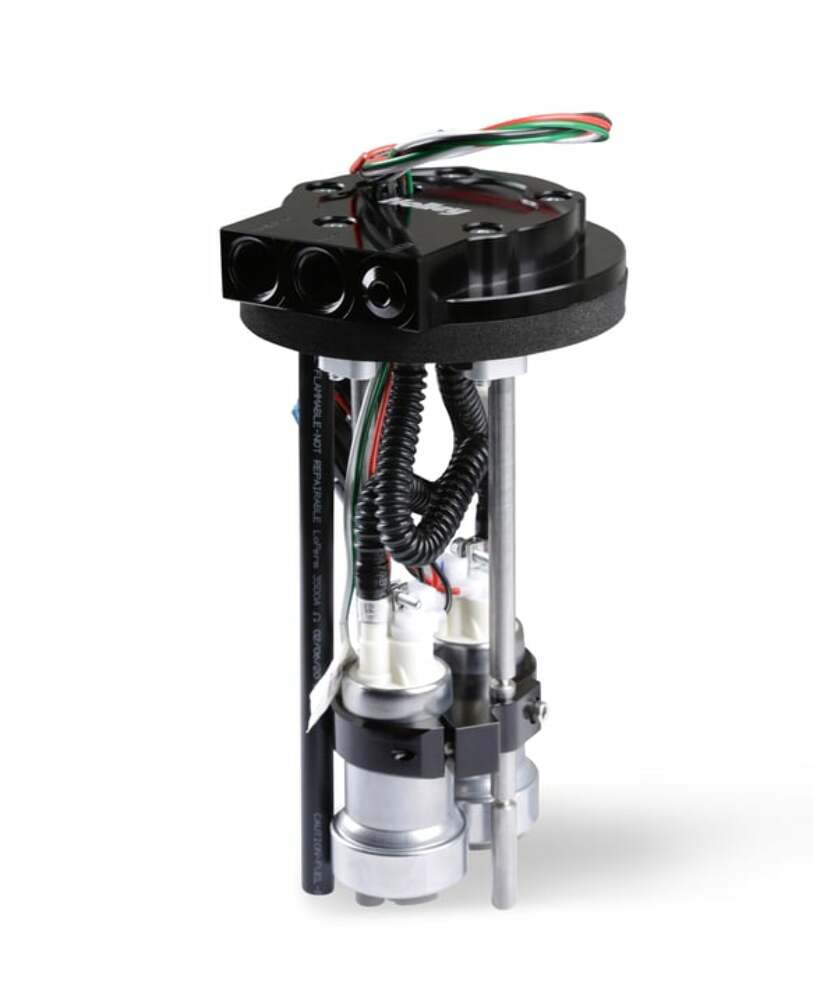

Holley Dual 450 Lph In-Tank Retrofit Fuel Module W/Return 12-173
Holley Dual 450 Lph In-Tank Retrofit Fuel Module W/Return 12-173
Regular price
$799.95 USD
Regular price
Sale price
$799.95 USD
Unit price
per
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:
Dual 450 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 1700 EFI or 2200 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 34 AMP Draw)
Looking to make a serious step up in the horsepower department? The Holley Dual 450 LPH EFI Pump Module would be an excellent choice. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator.
Features:

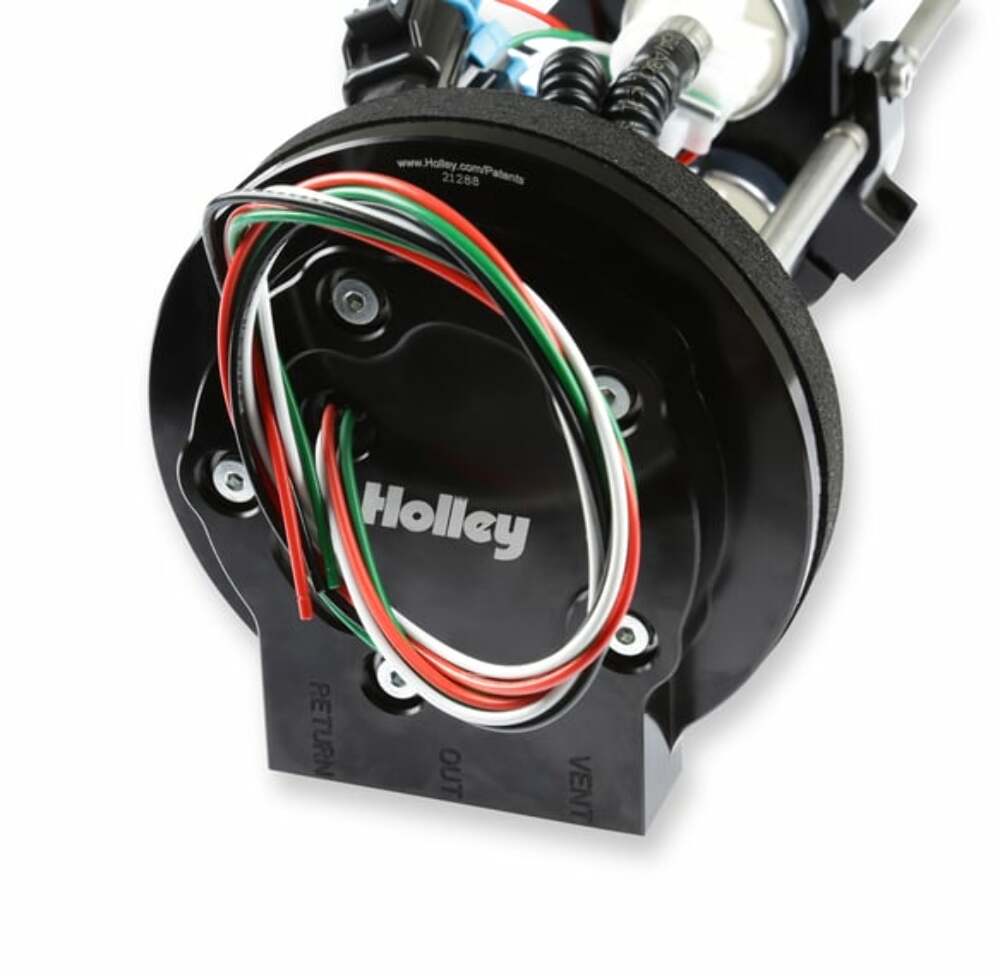

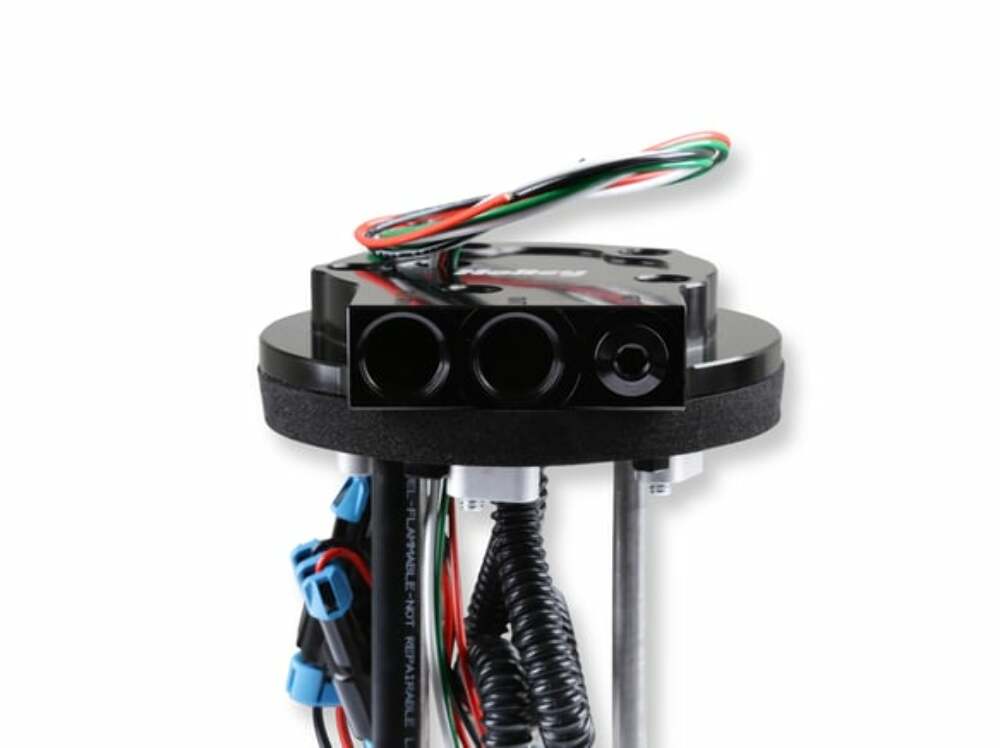

- Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent
- The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Easy install ? just drill a 4? hole in the top of the tank then use hand tools
- E85 compatible
- The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc?)
- Units install in tanks from 7? ? 12? deep

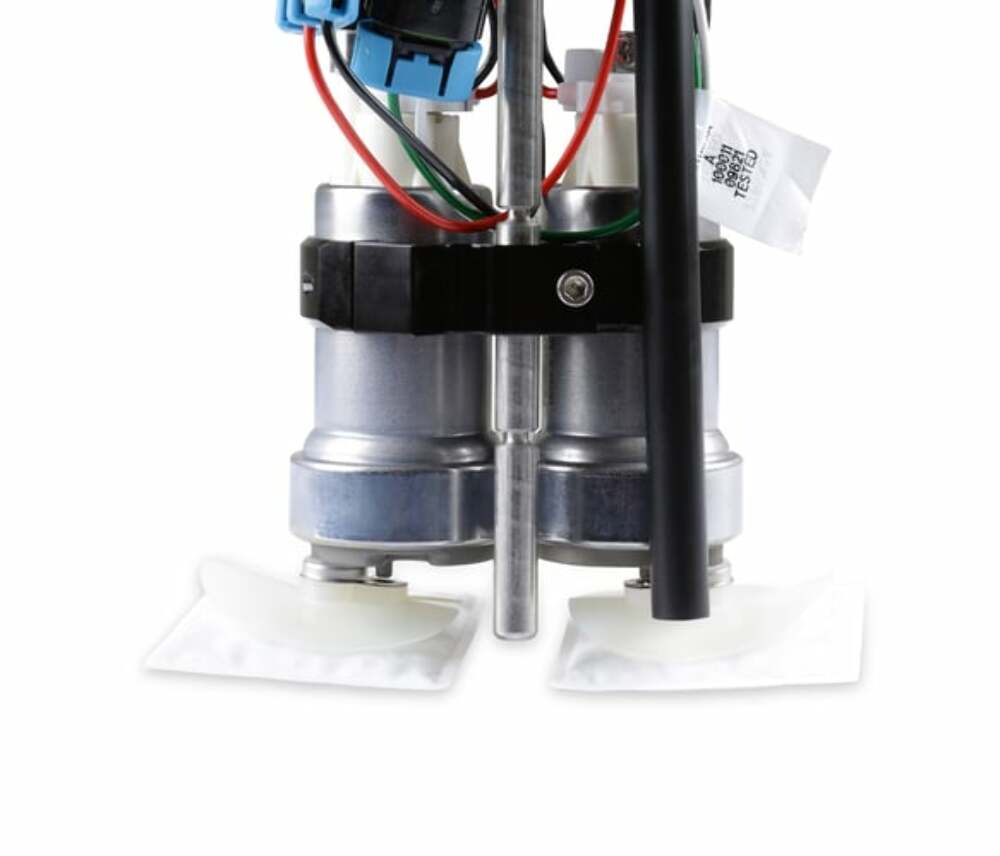

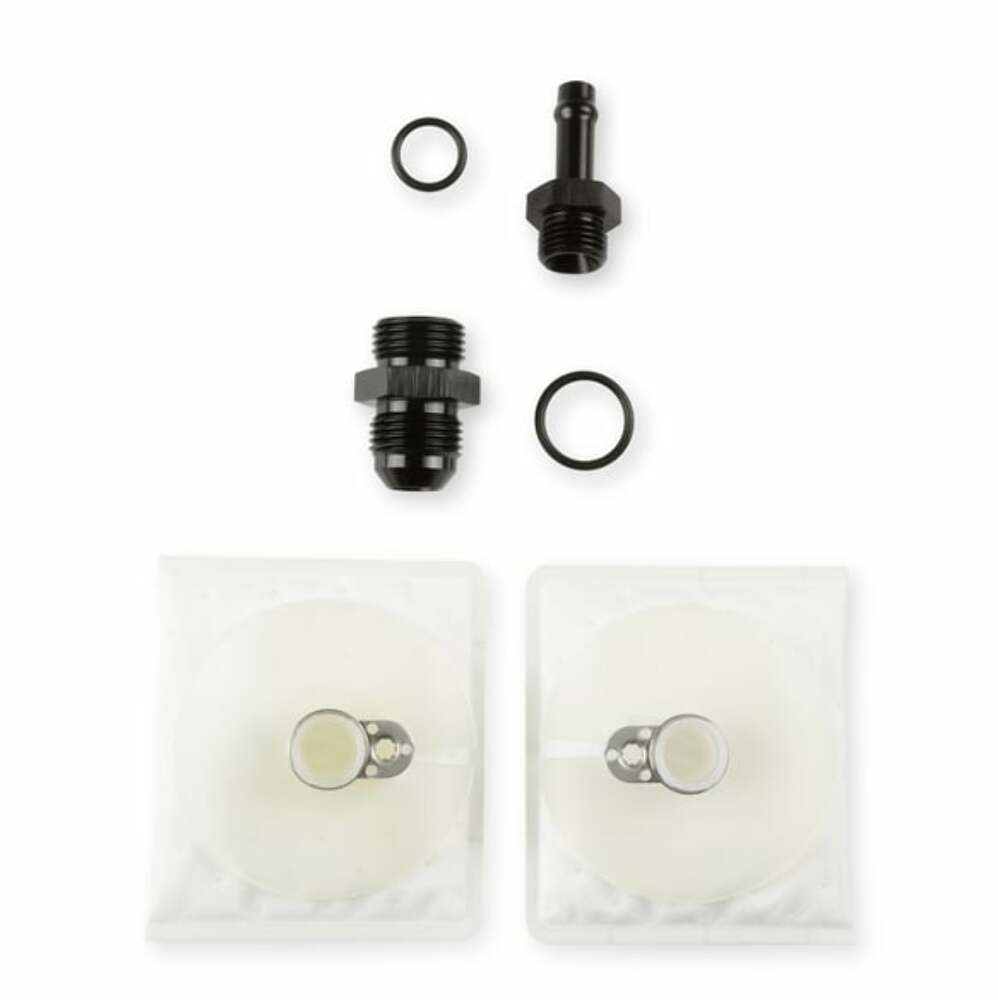

- Filter socks included, Hydramats can be purchased separately
- Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759)
Specs:
| Application | Universal |
|---|---|
| Average Current Draw | 34Ampere |
| Average Flow Rating | 900Liters per Hour |
| Brand | Holley |
| Connector Color | Black |
| Emission Code | 3 |
| Free Flow LPH | 900 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | E85, Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Foam |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Type | 8 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Material | Billet |
| Maximum Pressure | 60Pounds per Square Inch |
| Minimum Fuel Tank Depth | 7 inches |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Type | 8 AN ORB |
| Product Type | Fuel Pump Module |
| Pump Type | Electric |
| Regulator Included | No |
| Sale Category | Air and Fuel Delivery |
| Top Mount Diameter | 4Inch |
| Universal Or Specific Fit | Universal |
| Voltage | 12Volts DC |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
| Wire Harness Included | Yes |
| Wire Quantity | 4 |
