Fits GM LS1/LS2/LS6 - Carbureted with Black Finish 300-295BK
Fits GM LS1/LS2/LS6 - Carbureted with Black Finish 300-295BK
Regular price
$763.95 USD
Regular price
Sale price
$763.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!

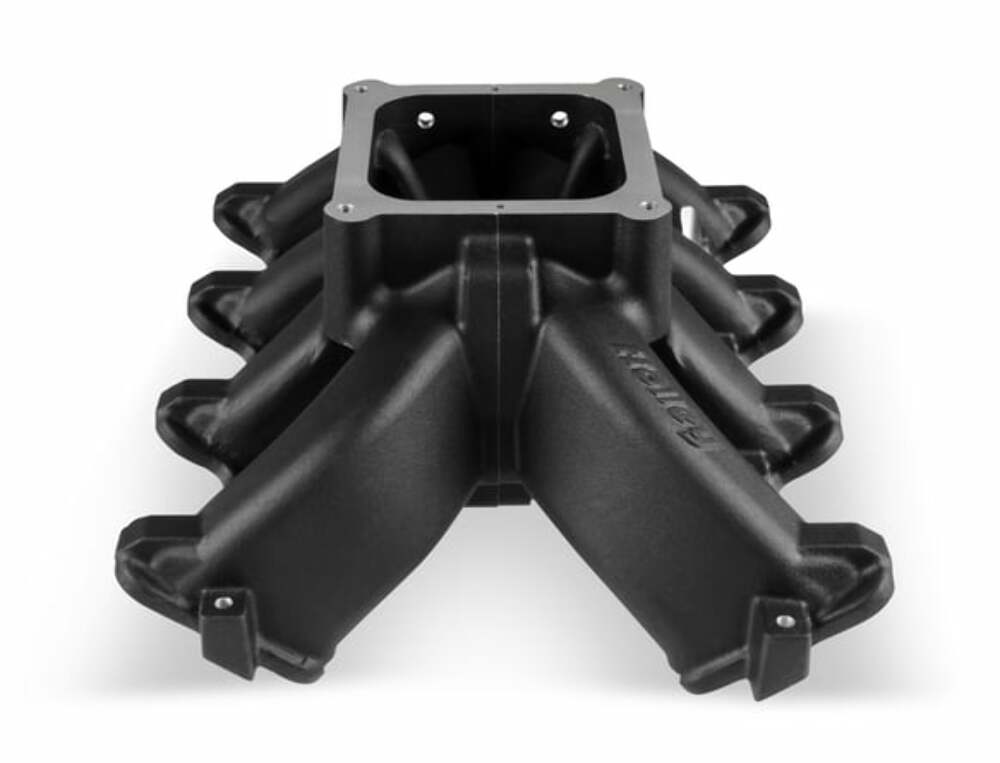

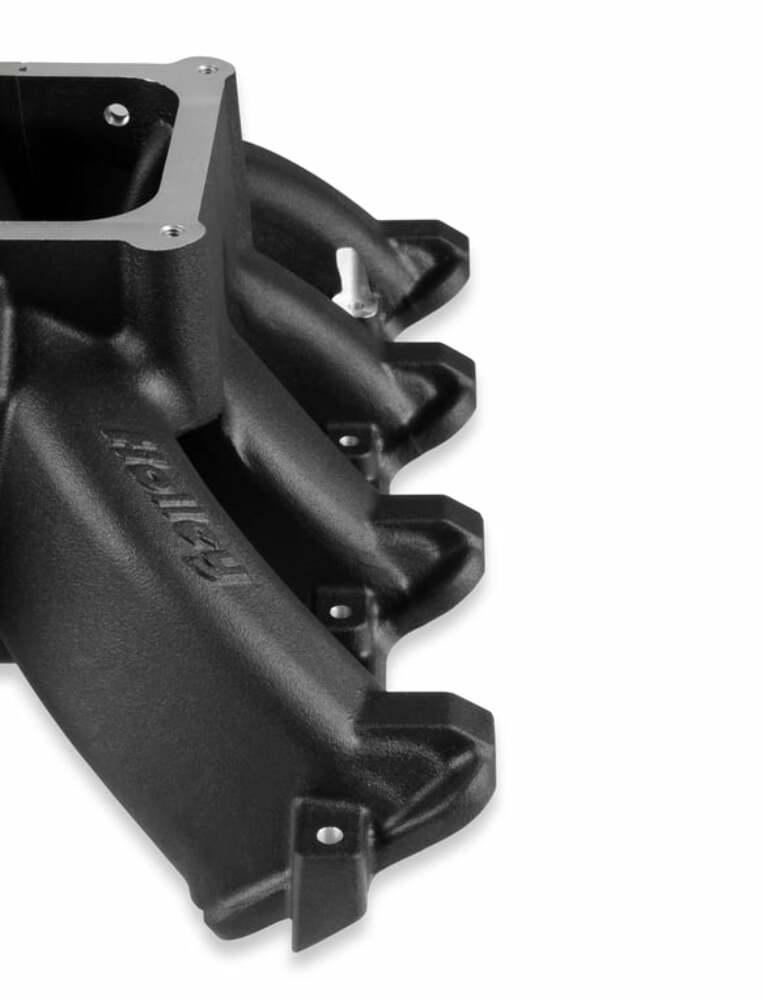

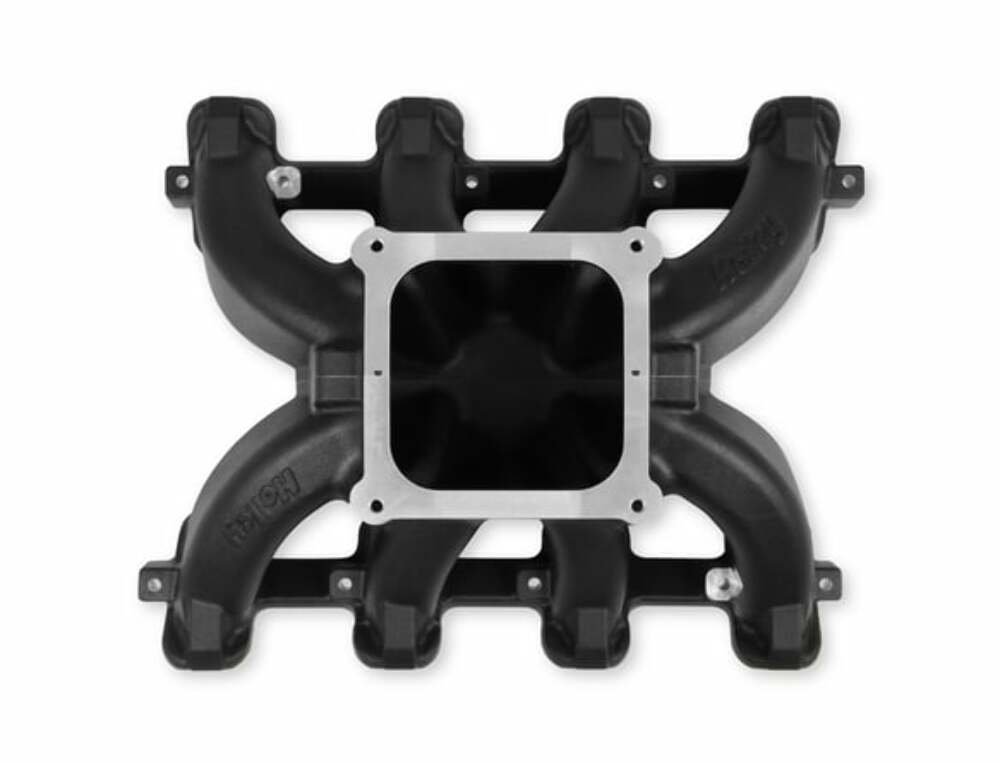

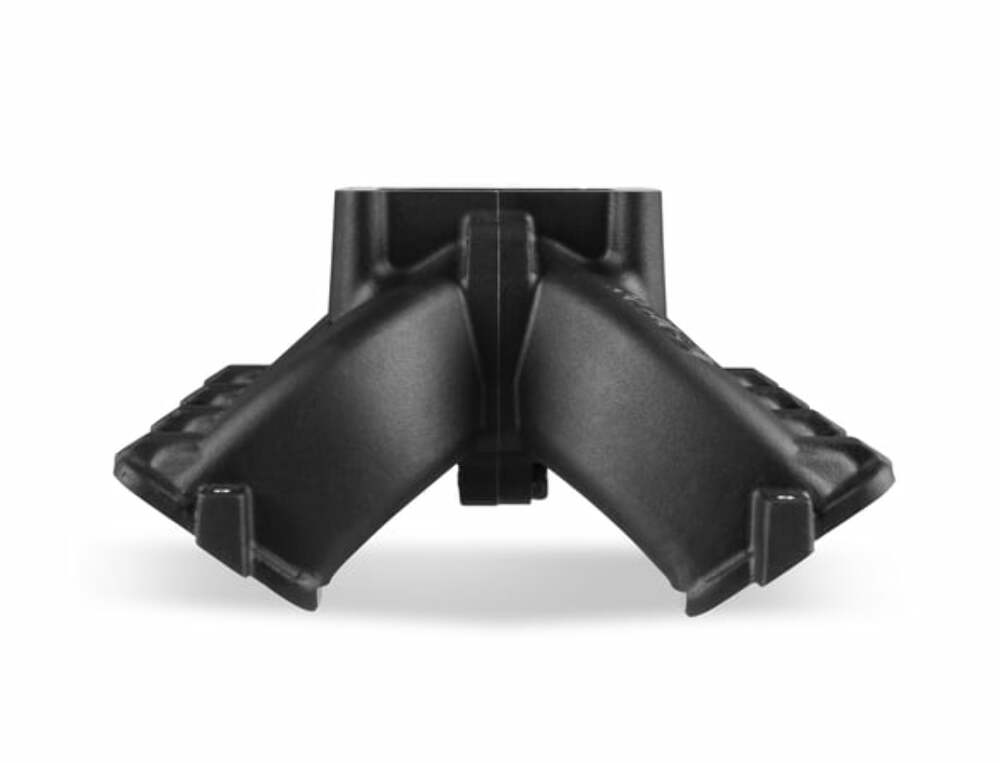

Fits GM LS1/LS2/LS6 - Carbureted with Black Finish

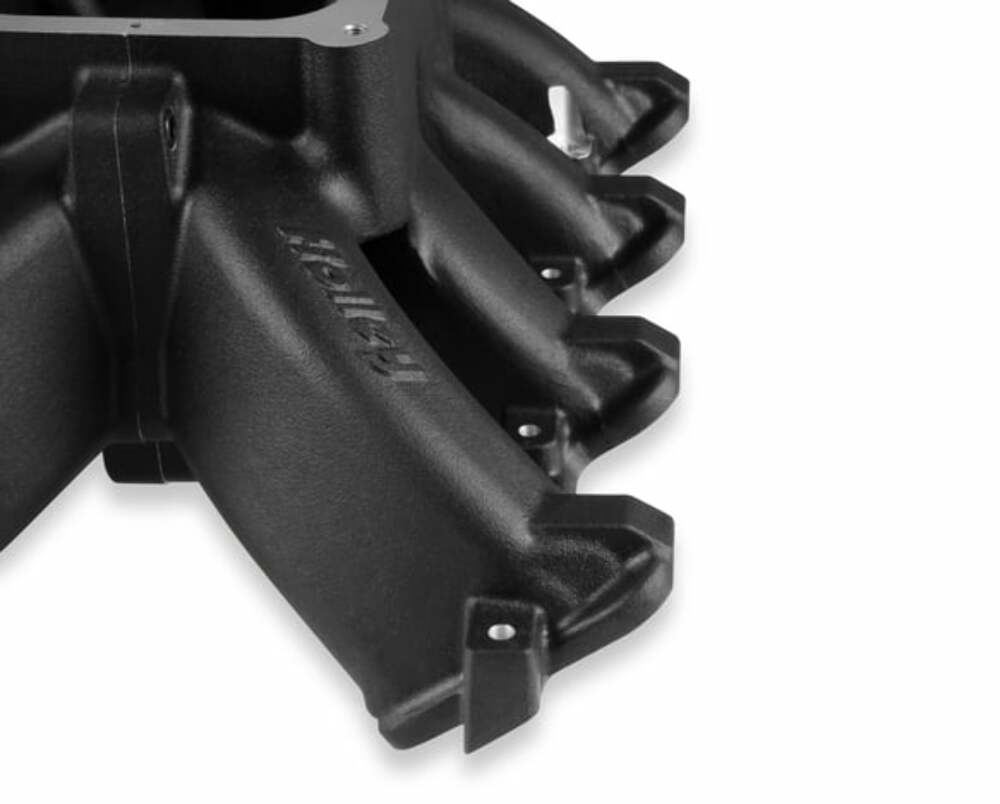

The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise.

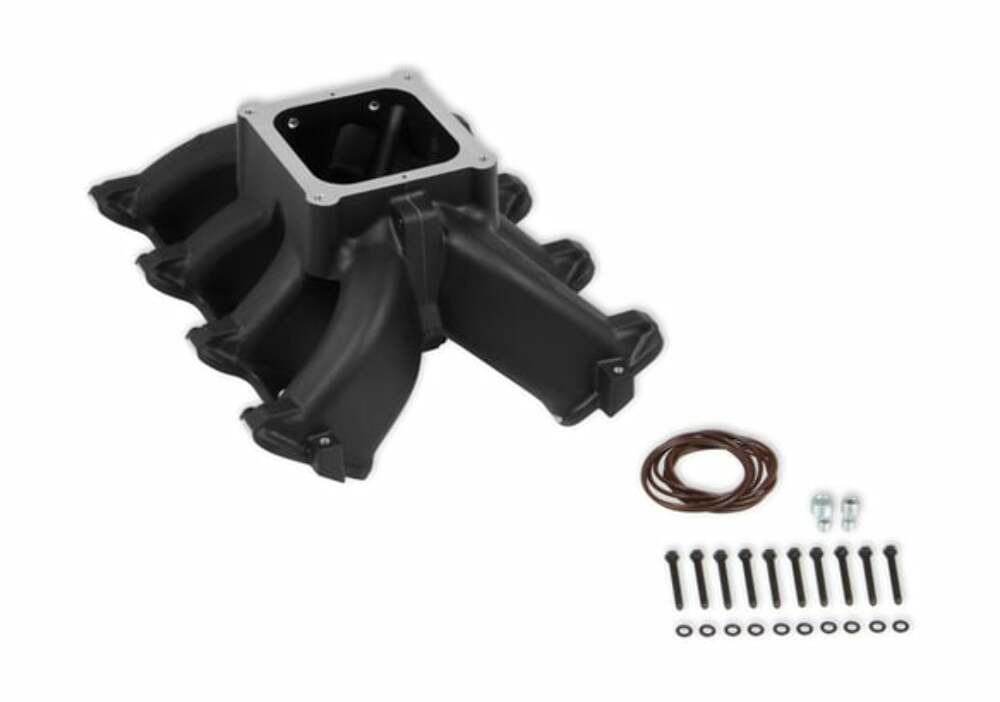

NOTES: Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal. Kit does not work with factory fuel rails and requires the use of Holley Fuel Rail Kit P/N 534-219. NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors.
Features:
- Maximum performance 4500 Dominator flange race design with hood clearance consideration
- Lighter than other split race intakes
- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes

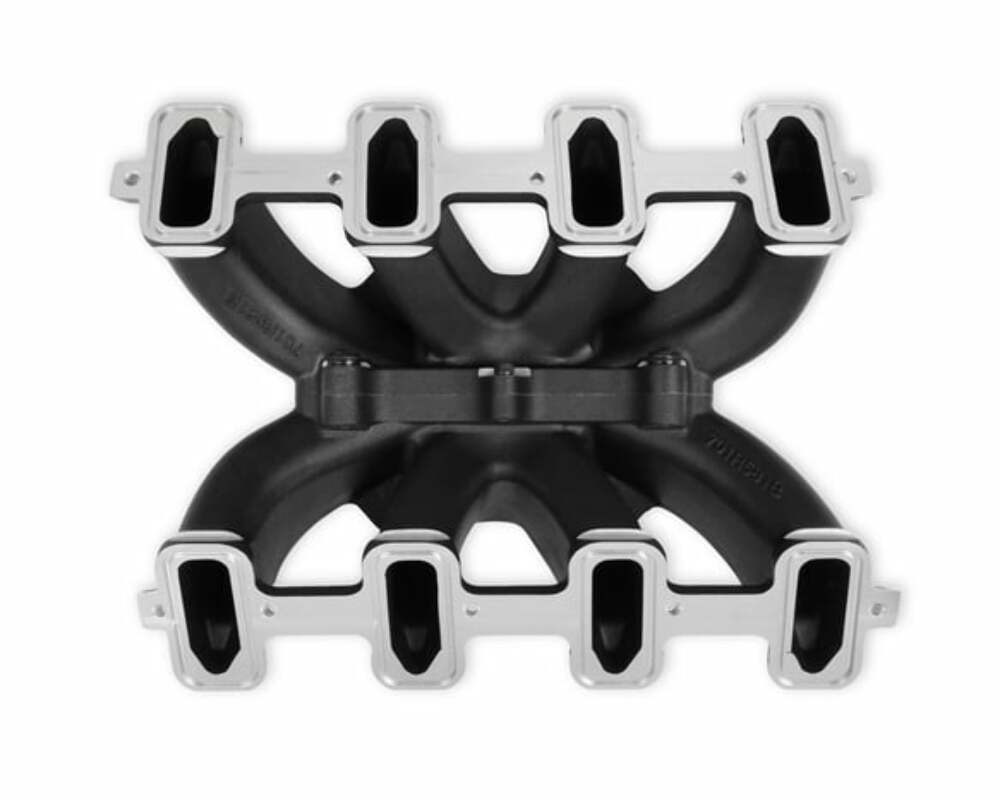

- Captured O-ring seals at head ports and plenum split

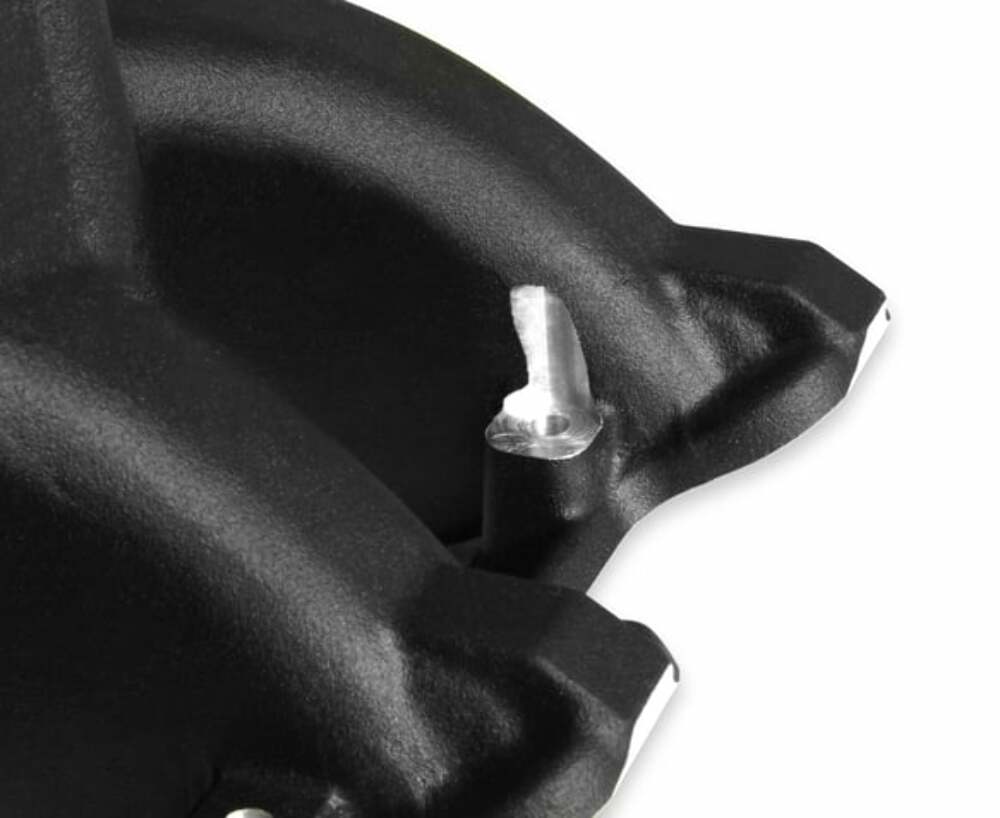

- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
- Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
Specs:
| Barrels | 4 |
|---|---|
| Basic Operating RPM Range | 2500-7500Revolutions per Minute |
| Brand | Holley |

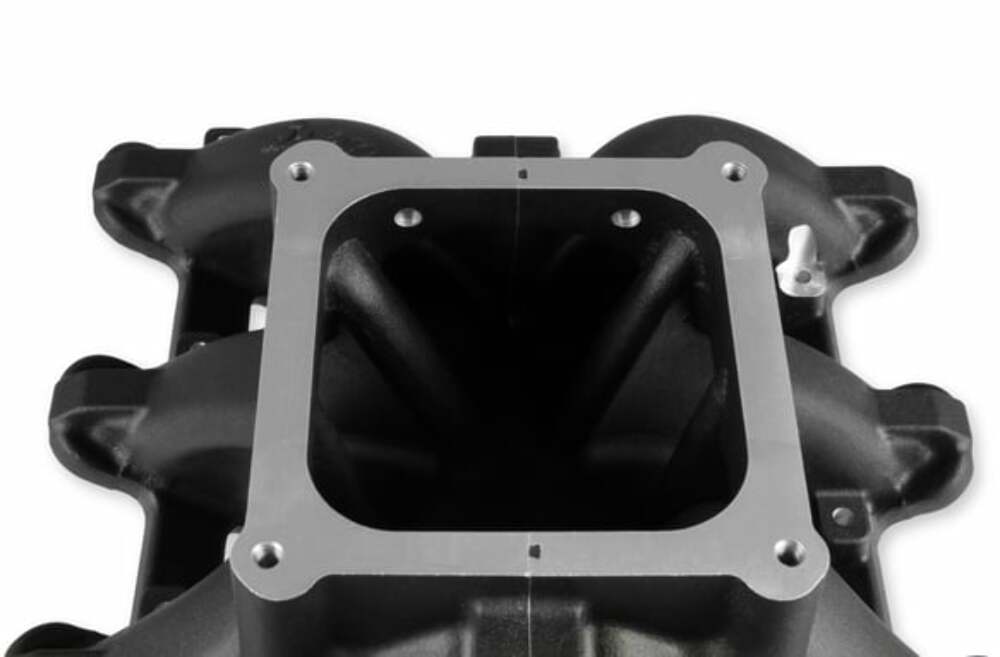

| Carburetor Flange | Dominator/4500 |
| Carburetor Studs Included | No |
| Clearance Category | Air and Fuel Delivery |
| Color | Black |
| Construction | Cast |
| Discount Percentage | 26-50% |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Black |
| Flange Style | 4500 |
| Front Height | 7.32" |
| Front Maximum Height | 7.32Inch |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carbureted |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Split Single Plane |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Rear Height | 7.32" |
| Rear Maximum Height | 7.32Inch |
| Removable Runners | No |
| RPM Power Band | 2500-7000 |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
