Fits 1997-2004 Dodge Dakota Holley 255 Lph Pump Module - Returnless 12-323
Fits 1997-2004 Dodge Dakota Holley 255 Lph Pump Module - Returnless 12-323
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:

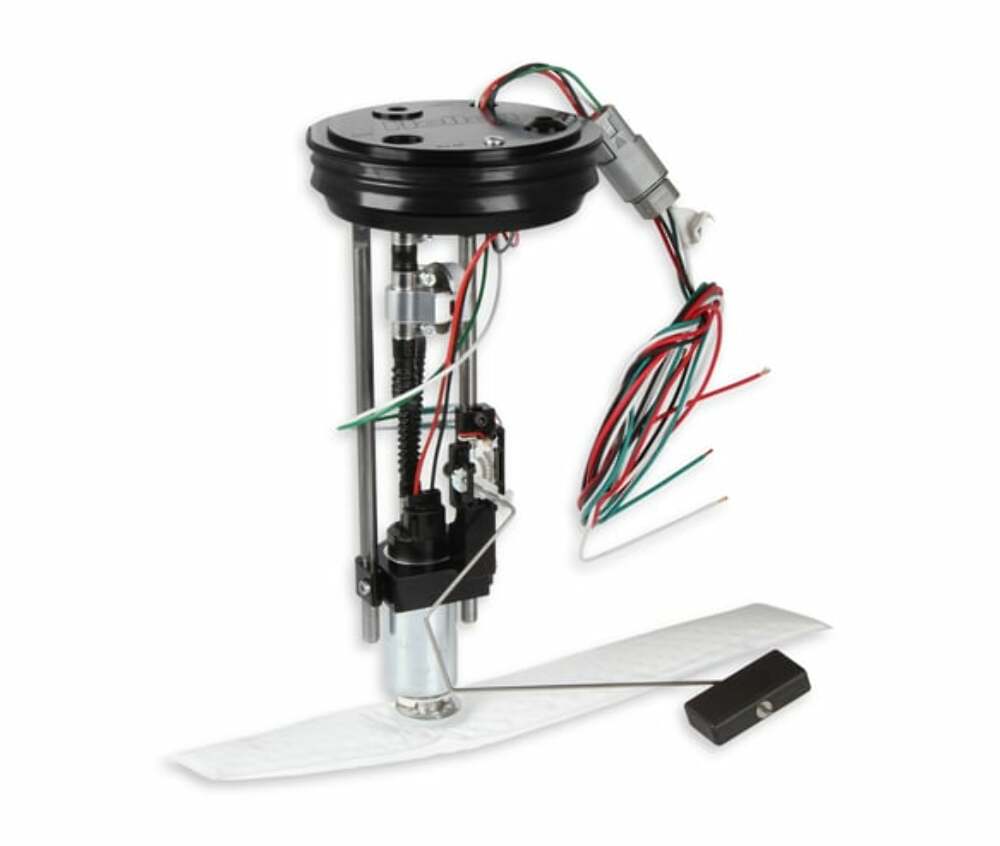

1998-2004 Dodge Truck 255 LPH Pump Module System - Returnless with 220-20 OHM Fuel Sending Unit

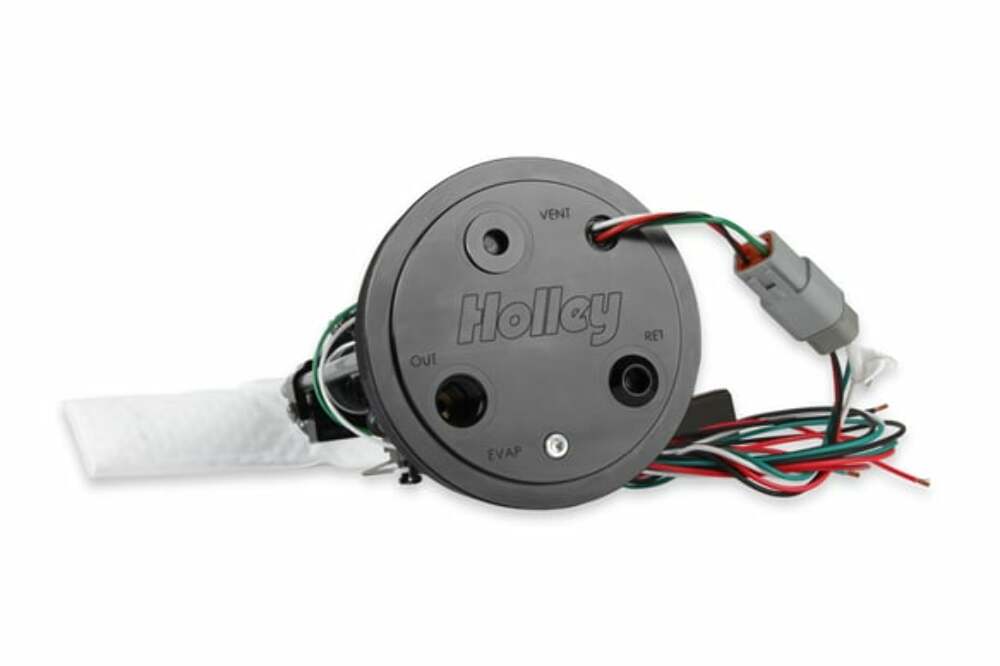

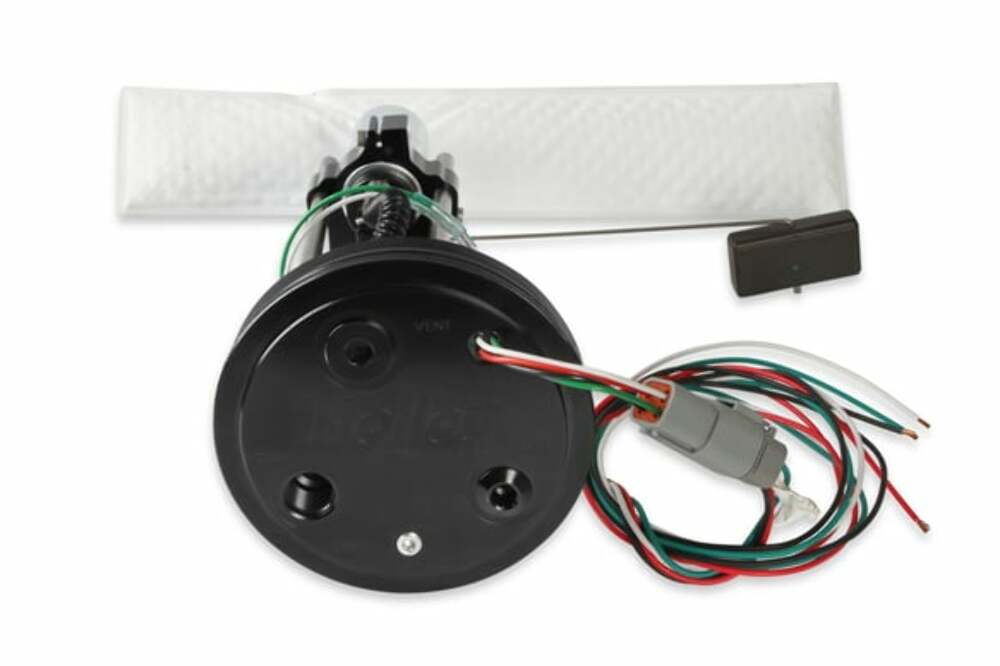

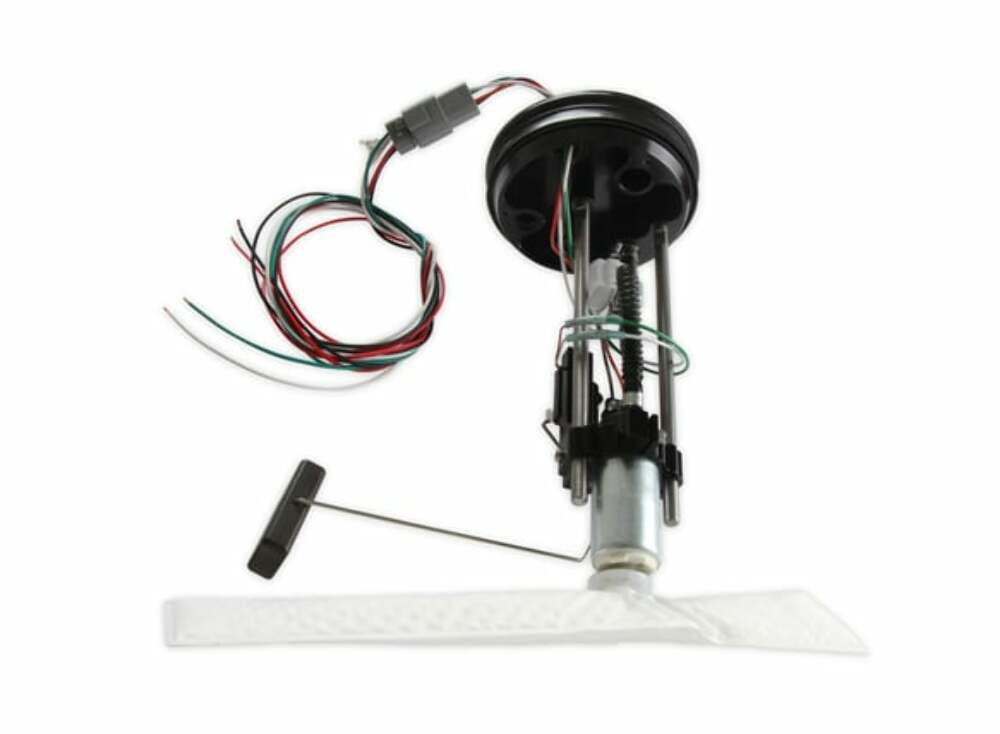

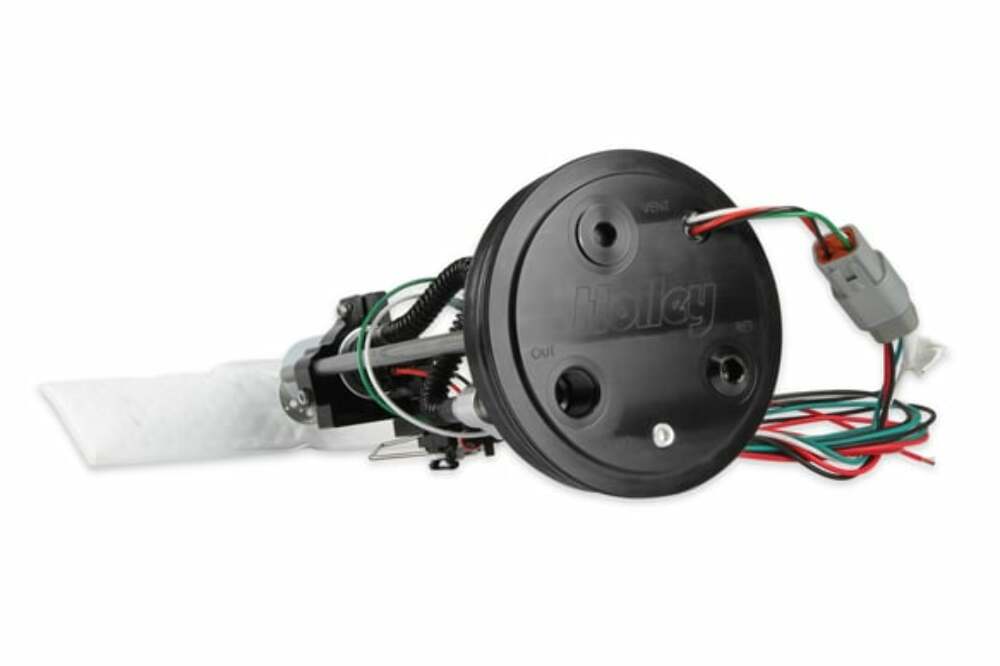

Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, Hydramat?, fuel sending unit, and high performance pump. Choose from 255 or 450 LPH (liters per hour) fuel flow & return style or returnless design.
NOTES: Filler Neck Vent - Some vehicles will have a 3/4" filler neck vent line that goes to the flange on the fuel module. If this is the case for your vehicle, you will need to purchase the following Earl's fittings: AT949013ERL and AT700113ERL. EVAP Line - Some vehicles will have a small EVAP hose that goes to the flange on the fuel module. If you wish to retain this, the following parts will need to be purchased: AT984204ERL, and 12-874. Thread sealant with PTFE will also be needed - Use Earl's # D024ERL.
Features:
- High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks

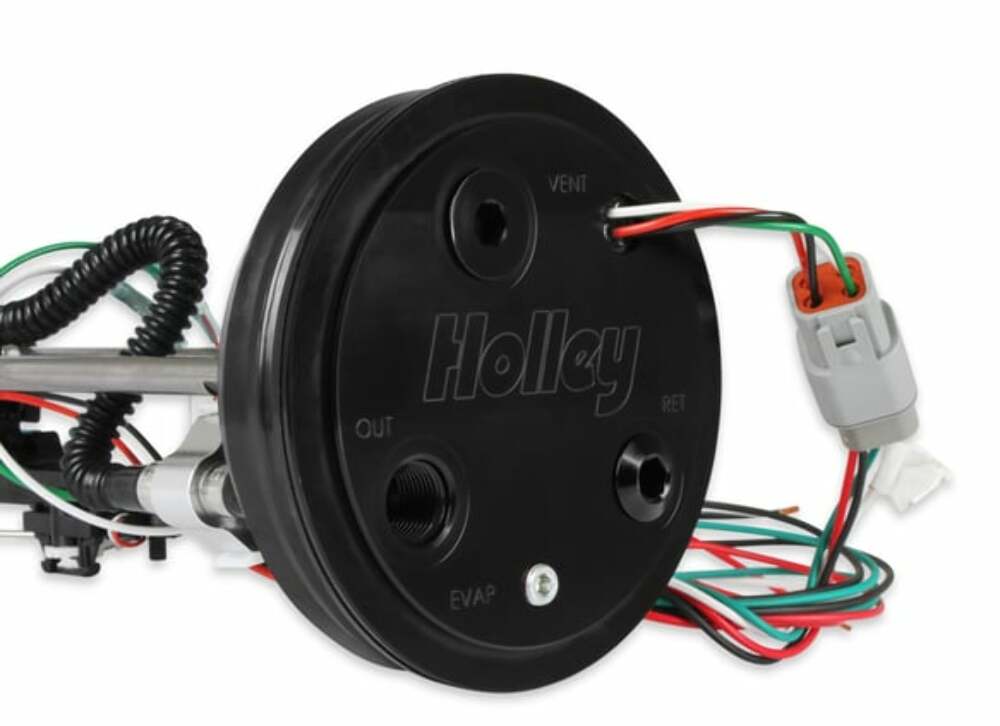

- Billet Aluminum Flange, Clamp & Fuel Level Sender
- Black Anodized Finish
- Choose from 255 or 450 LPH (liters per hour) Pump
- Adjustable for Tank Depth
- Choose from Return Style or Returnless Fuel Module
- Provisions for EVAP (Evaporative Emission Control System) ? See the Installation Notes
- Inlets & Outlet Ports: -8 AN O-Ring Boss

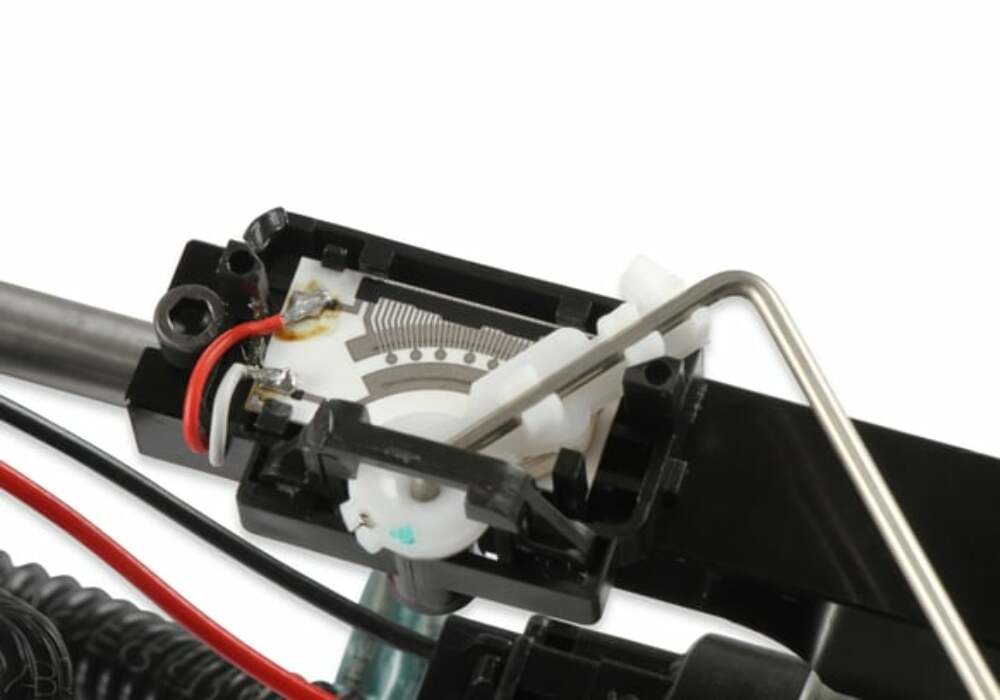

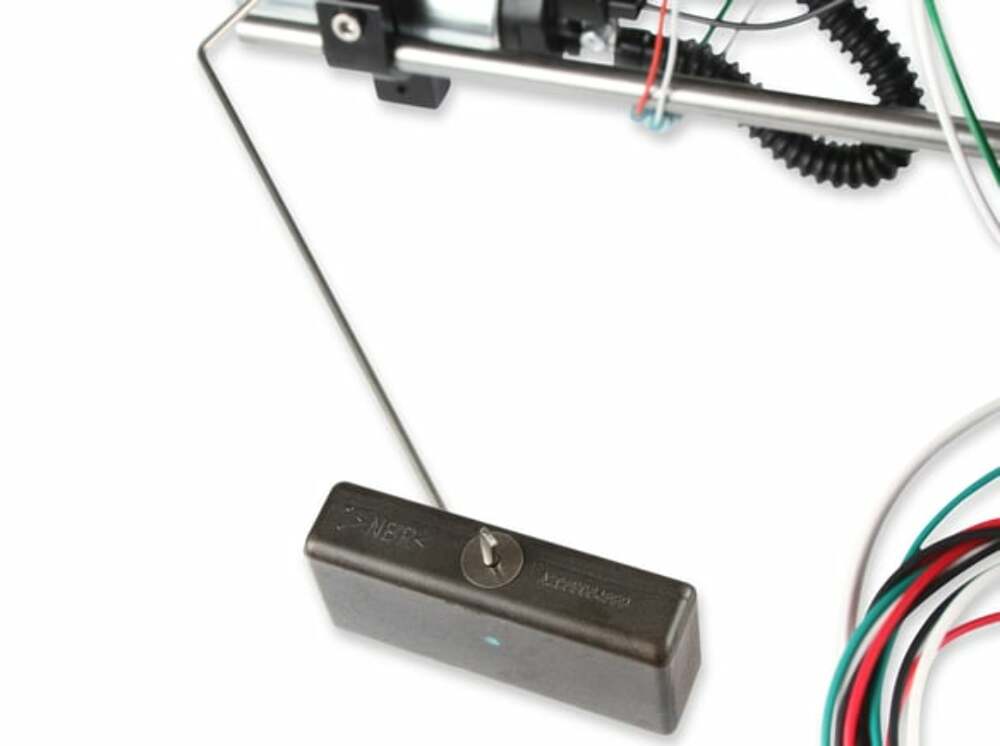

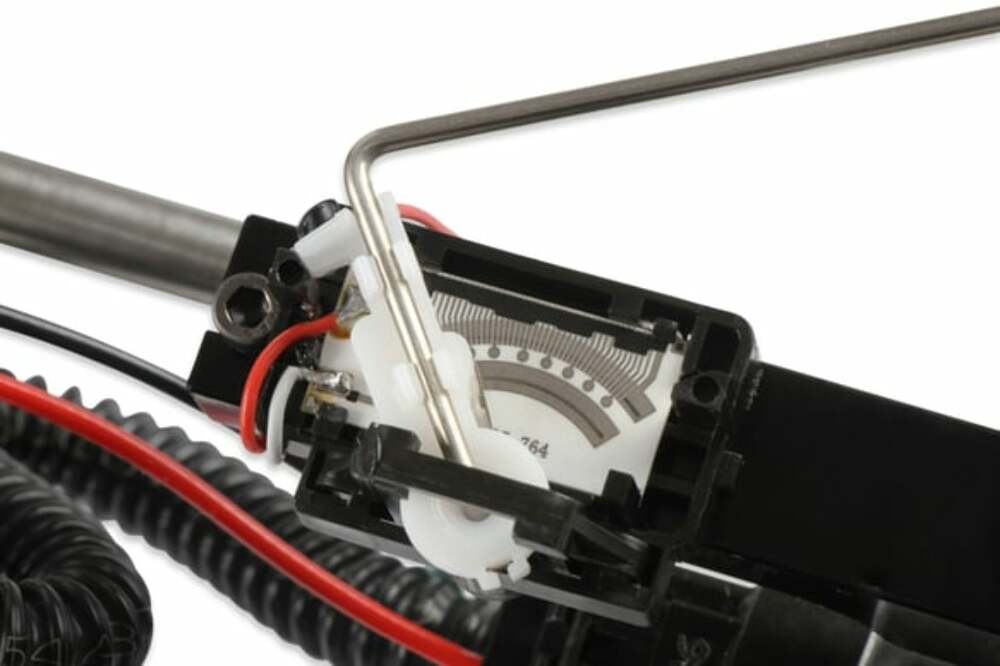

- New Fuel Level Sender Included
- Optional Fill Vent Built Into Billet Aluminum Top ? See the Installation Notes
- Includes Hydramat? - 3? x 15?
- Fits in Stock Factory Fuel Tanks
- Ideal for Use In Gen III Hemi Engine Swaps
Specs:
AMP DRAW | 18 |
---|---|
Application | 1998-2004 Dodge Trucks |
Average Current Draw | 18Ampere |
Average Flow Rating | 255Liters per Hour |
Brand | Holley |
Clearance Category | Air and Fuel Delivery |
Connector Color | Gray |
Connector Quantity | 1 |
Discount Percentage | 26-50% |
Emission Code | 5 |
Forced Induction HP@60PSI | 450 |
Free Flow GPH | 67 |
Free Flow LPH | 255 |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Sending Unit Ohms | 220-20 Ohms |
Fuel System | EFI |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Gasoline |
Gasket Or Seal Included | Yes |
Gasket Or Seal Material | Rubber |
GPH@60PSI | 60 |
Grade Type | Performance |
Height | Adjustable |
Housing Material | Aluminum |
In Tank or External | In Tank |
Inlet Quantity | One |
Inlet Size | 8 AN O-Ring |
Inlet Type | 8 AN ORB |
Internal Or External Strainer | External |
Lock Ring Included | No |
Material | Billet Aluminum and Steel |
Naturally Aspirated HP@60PSI | 600 |
Outlet Quantity | One |
Outlet Size | 8 AN |
Outlet Type | 8 AN ORB |
Product Type | Fuel Pump Module |
Pump Body Color | Silver |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 220Ohm |
Resistance Ohms Full | 20Ohm |
Returnless | Yes |
Sale Category | Air and Fuel Delivery |
Universal Or Specific Fit | Specific |
Voltage | 12Volts DC |
Warning | California Proposition 65 |
Warranty | Limited 90 Day |
Wire Harness Included | Yes |
Wire Quantity | 4 |
Application:
Year | Make | Model | Submodel |
---|---|---|---|
1998 | Dodge | B1500 | Base |
1998 | Dodge | B3500 | Base |
1998 | Dodge | B3500 | SLT |
1998-2003 | Dodge | Ram 1500 | ST |
1998-2002 | Dodge | Ram 1500 | Custom |
1998-2001 | Dodge | Ram 1500 | Laramie |
2003 | Dodge | Ram 1500 | Laramie |
1998-2001 | Dodge | Ram 1500 | Sport |
1998-2001 | Dodge | Ram 1500 | R/T |
1998-2001 | Dodge | Ram 1500 | WS |
1998-2001 | Dodge | Ram 1500 | ST |
1998-2000 | Dodge | Ram 1500 | Custom |
1998-1999 | Dodge | Ram 1500 | R/T |
1998 | Dodge | Ram 1500 | R/T |
1998 | Dodge | Ram 1500 | SS/T 5.9L |
1998 | Dodge | Ram 1500 | Lujo |
1999-2003 | Dodge | Ram 1500 | SLT |
1999-2001 | Dodge | Ram 1500 | R/T |
1999-2001 | Dodge | Ram 1500 | SLT |
2000 | Dodge | Ram 1500 | Custom |
2002-2003 | Dodge | Ram 1500 | SLT |
2002-2003 | Dodge | Ram 1500 | ST |
2003 | Dodge | Ram 1500 | SLT |
2003 | Dodge | Ram 1500 | ST |
1998-2003 | Dodge | Ram 2500 Van | Base |
1999-2003 | Dodge | Ram 2500 Van | Base |
1999-2002 | Dodge | Ram 2500 Van | SE |
1999 | Dodge | Ram 2500 Van | SLT |
2001 | Dodge | Ram 2500 Van | Base |
1998-2003 | Dodge | Ram 3500 Van | Base |
1999-2003 | Dodge | Ram 3500 Van | Base |
1999-2002 | Dodge | Ram 3500 Van | SE |
1999-2002 | Dodge | Ram 3500 Van | SLT |
1999-2001 | Dodge | Ram 3500 Van | SE |
2002 | Dodge | Ram 3500 Van | SE |
1998-2003 | Dodge | Ram 1500 Van | Base |
1999-2003 | Dodge | Ram 1500 Van | SE |
1999-2003 | Dodge | Ram 1500 Van | Base |
1999-2002 | Dodge | Ram 1500 Van | SLT |
2000-2003 | Dodge | Ram 1500 Van | SE |
1998-2002 | Dodge | Ram 2500 | Base |
1998-2002 | Dodge | Ram 2500 | Custom |
1998-2001 | Dodge | Ram 2500 | Custom |
1998 | Dodge | Ram 2500 | Custom |
2000-2002 | Dodge | Ram 2500 | Custom |
1998 | Dodge | Ram 2500 | Lujo |
1998 | Dodge | Ram 2500 | Limited |
1999-2003 | Dodge | Ram 2500 | SLT |
1999-2002 | Dodge | Ram 2500 | SLT |
1999 | Dodge | Ram 2500 | Custom |
2002-2003 | Dodge | Ram 2500 | SLT |
2003 | Dodge | Ram 2500 | Laramie |
2003 | Dodge | Ram 2500 | SLT |
2003 | Dodge | Ram 2500 | ST |
1998-2002 | Dodge | Ram 3500 | Custom |
1998-2002 | Dodge | Ram 3500 | Base |
1999 | Dodge | Ram 3500 | SLT |
2003 | Dodge | Ram 3500 | SLT |
2003 | Dodge | Ram 3500 | ST |
2003 | Dodge | Ram 3500 | Laramie |
1997-2004 | Dodge | Dakota | Sport |
1997-2004 | Dodge | Dakota | SLT |
1997-2004 | Dodge | Dakota | Base |
1997-2003 | Dodge | Dakota | Base |
1997-2003 | Dodge | Dakota | Sport |
1997-2003 | Dodge | Dakota | SLT |
1997-2002 | Dodge | Dakota | SLT |
1997-2002 | Dodge | Dakota | Sport |
1997-2002 | Dodge | Dakota | Base |
1997-1999 | Dodge | Dakota | SLT |
1997-1999 | Dodge | Dakota | Sport |
1997-1999 | Dodge | Dakota | Base |
1998-2003 | Dodge | Dakota | R/T |
2000-2004 | Dodge | Dakota | SLT |
2000-2004 | Dodge | Dakota | Sport |
2000-2003 | Dodge | Dakota | Base |
2000-2003 | Dodge | Dakota | Sport |
2000-2003 | Dodge | Dakota | SLT |
2002 | Dodge | Dakota | SXT |
2004 | Dodge | Dakota | SXT |
2004 | Dodge | Dakota | SLT Plus |
2004 | Dodge | Dakota | Sport |
2004 | Dodge | Dakota | SLT |
2004 | Dodge | Dakota | Base |
2004 | Dodge | Dakota | Sport Plus |
1998-2003 | Dodge | Durango | SLT Plus |
1998-2003 | Dodge | Durango | SLT |
1998-2001 | Dodge | Durango | Base |
1998-2000 | Dodge | Durango | Base |
1998-2000 | Dodge | Durango | SLT Plus |
1998-2000 | Dodge | Durango | SLT |
1998-1999 | Dodge | Durango | Base |
1998-1999 | Dodge | Durango | SLT |
1999-2000 | Dodge | Durango | SLT Plus |
2002-2003 | Dodge | Durango | SLT Plus |
1999 | Dodge | Durango | SLT Plus |
2000-2003 | Dodge | Durango | SLT Plus |
2000-2003 | Dodge | Durango | SLT |
2000-2003 | Dodge | Durango | R/T |
2000-2001 | Dodge | Durango | Base |
2000 | Dodge | Durango | Sport |
2002-2003 | Dodge | Durango | Sport |
2003 | Dodge | Durango | SXT |
1999-2001 | Dodge | Ramcharger | SLT |
1999-2001 | Dodge | Ramcharger | SLT Plus |
2000-2001 | Dodge | Ramcharger | Custom |
1998 | Dodge | B2500 | SLT |
1998 | Dodge | B2500 | Base |
