Fits 1969-1974 Chevrolet Nova Base Tie Rods 3301014
Fits 1969-1974 Chevrolet Nova Base Tie Rods 3301014
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!

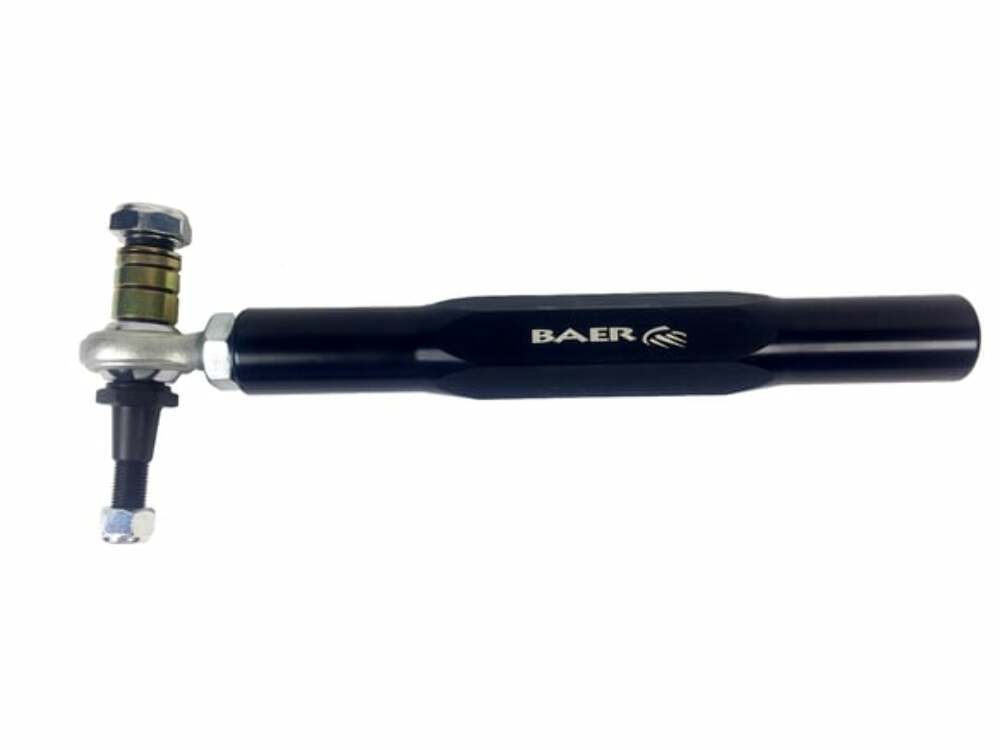

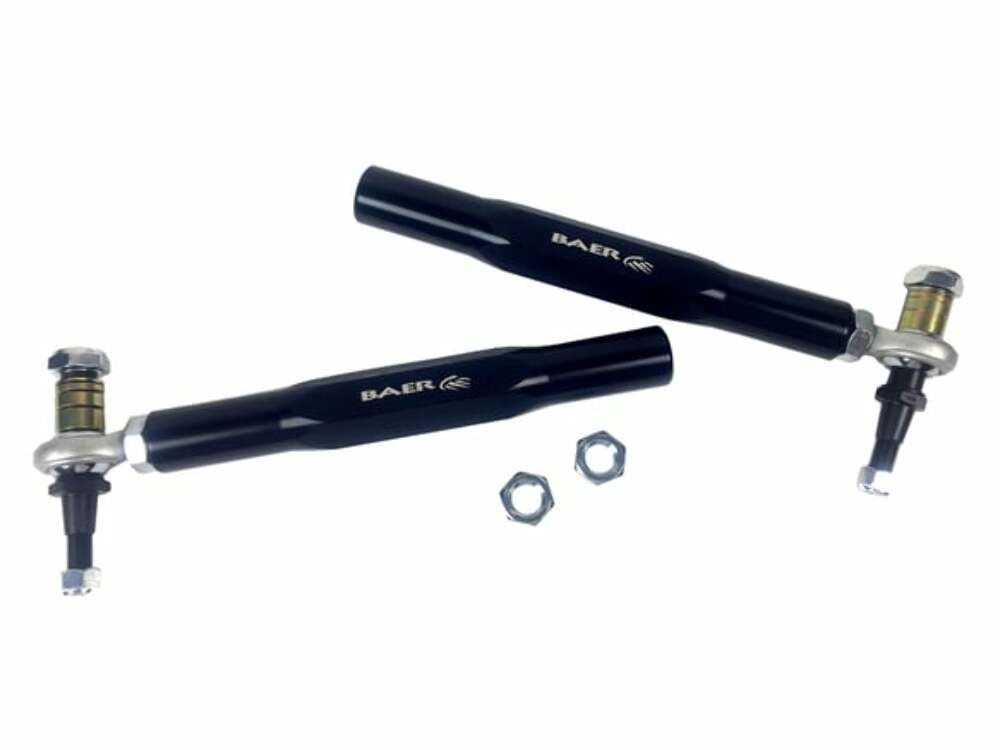

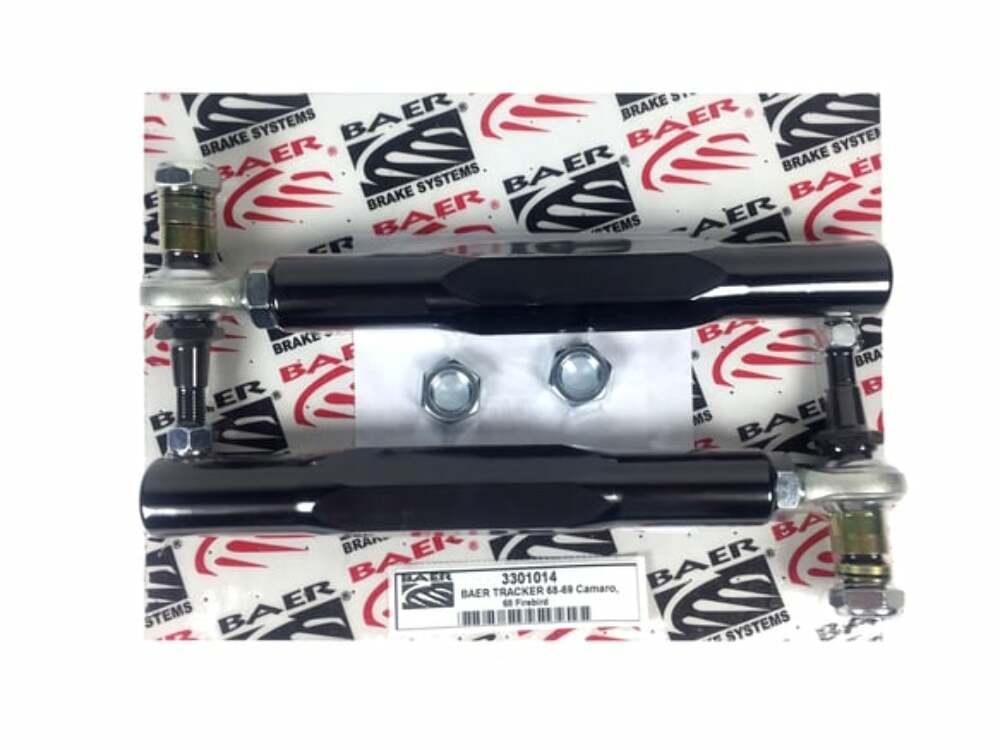

The Baer "Tracker" adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8" heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875" of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! Sold in pairs. Sleeve Length: 8.770" | Inner sleeve thread size: 5/8"x18 LH Thread | Outer sleeve thread size: 5/8"x18 RH Thread | Heim: 5/8" x 5/8" Teflon lined | Applications: 1968-69 Chevrolet Camaro with stock spindles 1968 Pontiac Firebird with stock spindles 1968-74 GM X-Body cars with stock spindles | Replacement components: Sleeve - 6250028 Pin - 6190015 Heim - 6840008 Spacers - 6260060
Features:
- Direct bolt on upgrade
- Black E-Coated for Rust Protection
- Fully adjustable
- Simple installation
- Tapered pin for NO spindle modifications
- Vehicle specific
Specs:
| Application | 1967-69 Camaro/Firebird |
|---|---|
| Application | 1968-1974 Nova |
| Brand | Baer Brakes |
| Emission Code | 6 |
| Finish | Black e-coated |
| Greasable | Yes |
| Product Type | Steering Tie Rod End |
Application:
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1969-1974 | Chevrolet | Nova | Base | 250/4.1L L6 |
| 1969-1974 | Chevrolet | Nova | Base | 350/5.7L V8 |
| 1973-1974 | Chevrolet | Nova | Custom | 250/4.1L L6 |
| 1973-1974 | Chevrolet | Nova | Custom | 350/5.7L V8 |
| 1969-1973 | Chevrolet | Nova | Base | 307/5.0L V8 |
| 1973 | Chevrolet | Nova | Custom | 307/5.0L V8 |
| 1970-1972 | Chevrolet | Nova | Base | 402/6.6L V8 |
| 1970-1971 | Chevrolet | Nova | Base | 454/7.4L V8 |
| 1969-1970 | Chevrolet | Nova | Base | 153/2.5L L4 |
| 1969-1970 | Chevrolet | Nova | Base | 230/3.8L L6 |
| 1969-1970 | Chevrolet | Nova | Base | 396/6.5L V8 |
| 1968-1969 | Chevrolet | Camaro | Base | 230/3.8L L6 |
| 1968-1969 | Chevrolet | Camaro | Base | 250/4.1L L6 |
| 1969 | Chevrolet | Camaro | Base | 307/5.0L V8 |
| 1968-1969 | Chevrolet | Camaro | Base | 327/5.3L V8 |
| 1968-1969 | Chevrolet | Camaro | Base | 327/5.4L V8 |
| 1969 | Chevrolet | Camaro | Base | 350/5.7L V8 |
| 1969 | Chevrolet | Camaro | Base | 427/7.0L V8 |
| 1968-1969 | Chevrolet | Camaro | RS | 230/3.8L L6 |
| 1968-1969 | Chevrolet | Camaro | RS | 250/4.1L L6 |
| 1969 | Chevrolet | Camaro | RS | 307/5.0L V8 |
| 1968-1969 | Chevrolet | Camaro | RS | 327/5.3L V8 |
| 1968-1969 | Chevrolet | Camaro | RS | 327/5.4L V8 |
| 1969 | Chevrolet | Camaro | RS | 350/5.7L V8 |
| 1969 | Chevrolet | Camaro | RS | 427/7.0L V8 |
| 1968-1969 | Chevrolet | Camaro | SS | 350/5.7L V8 |
| 1968-1969 | Chevrolet | Camaro | SS | 396/6.5L V8 |
| 1968-1969 | Chevrolet | Camaro | Z28 | 302/4.9L V8 |
| 1968 | Chevrolet | Chevy II | Nova | 153/2.5L L4 |
| 1968 | Chevrolet | Chevy II | Nova | 230/3.8L L6 |
| 1968 | Chevrolet | Chevy II | Nova | 250/4.1L L6 |
| 1968 | Chevrolet | Chevy II | Nova | 307/5.0L V8 |
| 1968 | Chevrolet | Chevy II | Nova | 327/5.3L V8 |
| 1968 | Chevrolet | Chevy II | Nova | 327/5.4L V8 |
| 1968 | Chevrolet | Chevy II | Nova | 350/5.7L V8 |
| 1968 | Chevrolet | Chevy II | Nova | 396/6.5L V8 |
| 1968 | Pontiac | Firebird | 350 | 350/5.7L V8 |
| 1968 | Pontiac | Firebird | 400 | 400/6.6L V8 |
| 1968 | Pontiac | Firebird | Base | 250/4.1L L6 |
| 1968 | Pontiac | Firebird | Base | 350/5.7L V8 |
| 1968 | Pontiac | Firebird | Base | 400/6.6L V8 |
| 1968 | Pontiac | Firebird | HO | 350/5.7L V8 |
| 1968 | Pontiac | Firebird | Sprint | 250/4.1L L6 |
