Fits 1969-1974 Chevrolet Nova Base Rear Classic Brake Conversion 4302518R
Fits 1969-1974 Chevrolet Nova Base Rear Classic Brake Conversion 4302518R
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:

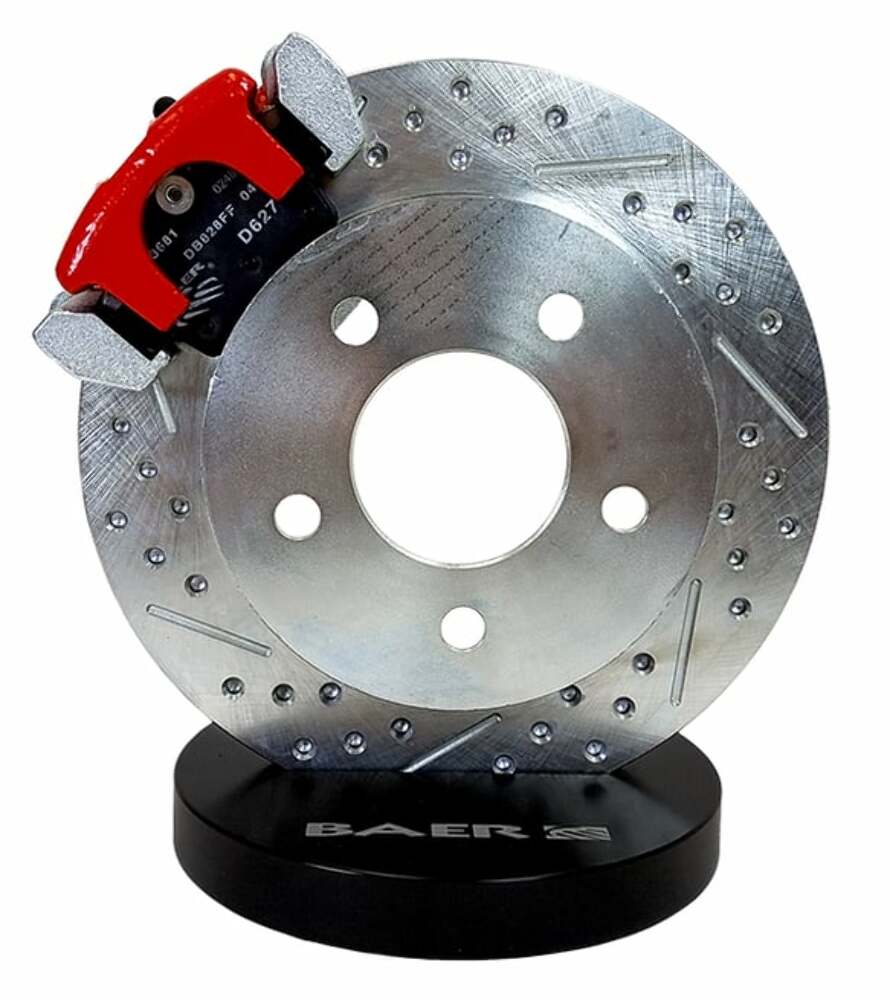

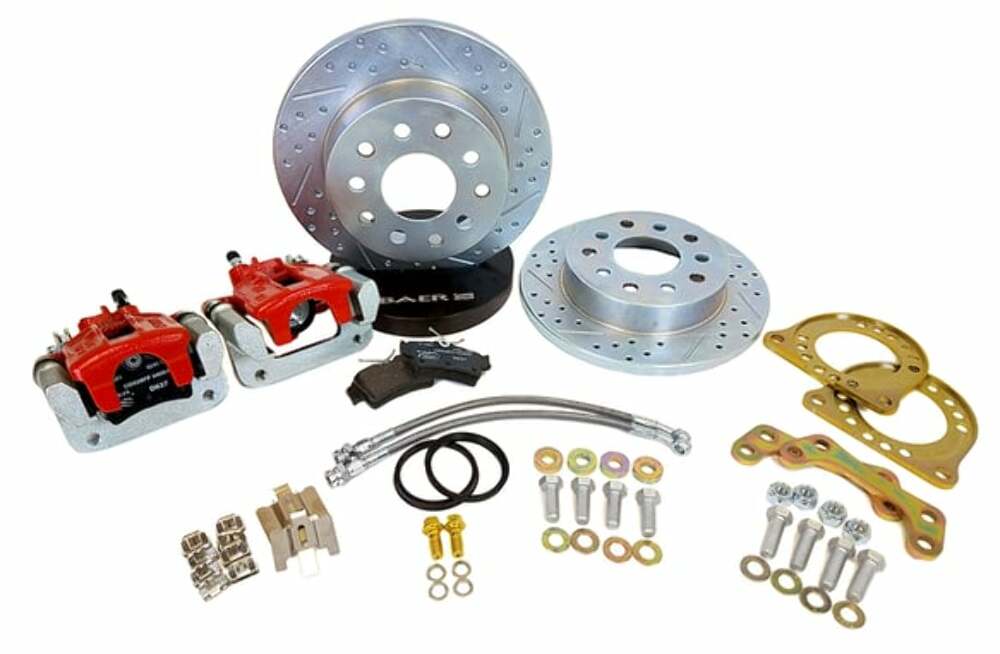

This system features a single piston, integral park brake caliper mounted to a 10.50", 1-piece slot, dimpled and zinc plated rotor. The caliper comes with a red powder coated finish, includes dust/weather seal and uses the popular D627 pad type. The system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The Baer Classic system is a cost effective, full feature drum to disc conversions and fits most 14" or larger wheels. | Rotor Size/Type: 10.50" x .504", 1-piece | Replacement Rotor Rings: 6911140 (Left) / 6921140 (Right) | Caliper/Piston Count/Mount Type: Classic Rear / 1-piston / Floating w/anchor | Replacement Pads: D0627R | Minimum Wheel Size: 14" (Use template to verify fitment, link below) | System Includes: Calipers, Brake pads, Rotors, Brackets, stainless braided brake hoses & system hardware. Park brake cables not included but are available separately for certain applications, click here for more information. | Notes: - Designed to be used with GM small 10/12 bolt rear ends with C-clips, C-clip eliminators or bearing on axle (BOP). - For vehicles with Staggered rear shocks - System has 5x4.5" and 5x4.75" bolt pattern - 15/16" master cylinder recommended (OE cast iron style or Remaster) - Adjustable proportioning valve recommended p/n 2000035 | Applications: - 1968-69 GM F-Body card with OE 10/12 bolt rear end with Staggered rear shocks - 1968-74 GM X-Body card with OE 10/12 bolt rear end with Staggered rear shocks - Vehicles using GM small 10/12 bolt rear end & Staggered shocks
Features:
- Features a single piston, integral park brake caliper
- 1-piece slot, dimpled and zinc plated rotor
- Caliper comes with a red powder coated finish
- Includes brackets, hardware, stainless braided brake hoses and fittings
Specs:
Brand | Baer Brakes |
---|---|
Emission Code | 6 |
Product Type | Disc Brake Conversion Kit |
Application:
Year | Make | Model | Submodel | Engine |
---|---|---|---|---|
1969-1974 | Chevrolet | Nova | Base | 250/4.1L L6 |
1969-1974 | Chevrolet | Nova | Base | 350/5.7L V8 |
1973-1974 | Chevrolet | Nova | Custom | 250/4.1L L6 |
1973-1974 | Chevrolet | Nova | Custom | 350/5.7L V8 |
1969-1973 | Chevrolet | Nova | Base | 307/5.0L V8 |
1973 | Chevrolet | Nova | Custom | 307/5.0L V8 |
1970-1972 | Chevrolet | Nova | Base | 402/6.6L V8 |
1970-1971 | Chevrolet | Nova | Base | 454/7.4L V8 |
1969-1970 | Chevrolet | Nova | Base | 153/2.5L L4 |
1969-1970 | Chevrolet | Nova | Base | 230/3.8L L6 |
1969-1970 | Chevrolet | Nova | Base | 396/6.5L V8 |
1968-1969 | Chevrolet | Camaro | Base | 230/3.8L L6 |
1968-1969 | Chevrolet | Camaro | Base | 250/4.1L L6 |
1969 | Chevrolet | Camaro | Base | 307/5.0L V8 |
1968-1969 | Chevrolet | Camaro | Base | 327/5.3L V8 |
1968-1969 | Chevrolet | Camaro | Base | 327/5.4L V8 |
1969 | Chevrolet | Camaro | Base | 350/5.7L V8 |
1969 | Chevrolet | Camaro | Base | 427/7.0L V8 |
1968-1969 | Chevrolet | Camaro | RS | 230/3.8L L6 |
1968-1969 | Chevrolet | Camaro | RS | 250/4.1L L6 |
1969 | Chevrolet | Camaro | RS | 307/5.0L V8 |
1968-1969 | Chevrolet | Camaro | RS | 327/5.3L V8 |
1968-1969 | Chevrolet | Camaro | RS | 327/5.4L V8 |
1969 | Chevrolet | Camaro | RS | 350/5.7L V8 |
1969 | Chevrolet | Camaro | RS | 427/7.0L V8 |
1968-1969 | Chevrolet | Camaro | SS | 350/5.7L V8 |
1968-1969 | Chevrolet | Camaro | SS | 396/6.5L V8 |
1968-1969 | Chevrolet | Camaro | Z28 | 302/4.9L V8 |
1968-1969 | Pontiac | Firebird | 350 | 350/5.7L V8 |
1969 | Pontiac | Firebird | 350 HO | 350/5.7L V8 |
1968-1969 | Pontiac | Firebird | 400 | 400/6.6L V8 |
1968-1969 | Pontiac | Firebird | Base | 250/4.1L L6 |
1968-1969 | Pontiac | Firebird | Base | 350/5.7L V8 |
1968-1969 | Pontiac | Firebird | Base | 400/6.6L V8 |
1968-1969 | Pontiac | Firebird | Sprint | 250/4.1L L6 |
1969 | Pontiac | Firebird | Trans Am | 400/6.6L V8 |
1968 | Chevrolet | Chevy II | Nova | 153/2.5L L4 |
1968 | Chevrolet | Chevy II | Nova | 230/3.8L L6 |
1968 | Chevrolet | Chevy II | Nova | 250/4.1L L6 |
1968 | Chevrolet | Chevy II | Nova | 307/5.0L V8 |
1968 | Chevrolet | Chevy II | Nova | 327/5.3L V8 |
1968 | Chevrolet | Chevy II | Nova | 327/5.4L V8 |
1968 | Chevrolet | Chevy II | Nova | 350/5.7L V8 |
1968 | Chevrolet | Chevy II | Nova | 396/6.5L V8 |
1968 | Pontiac | Firebird | HO | 350/5.7L V8 |
