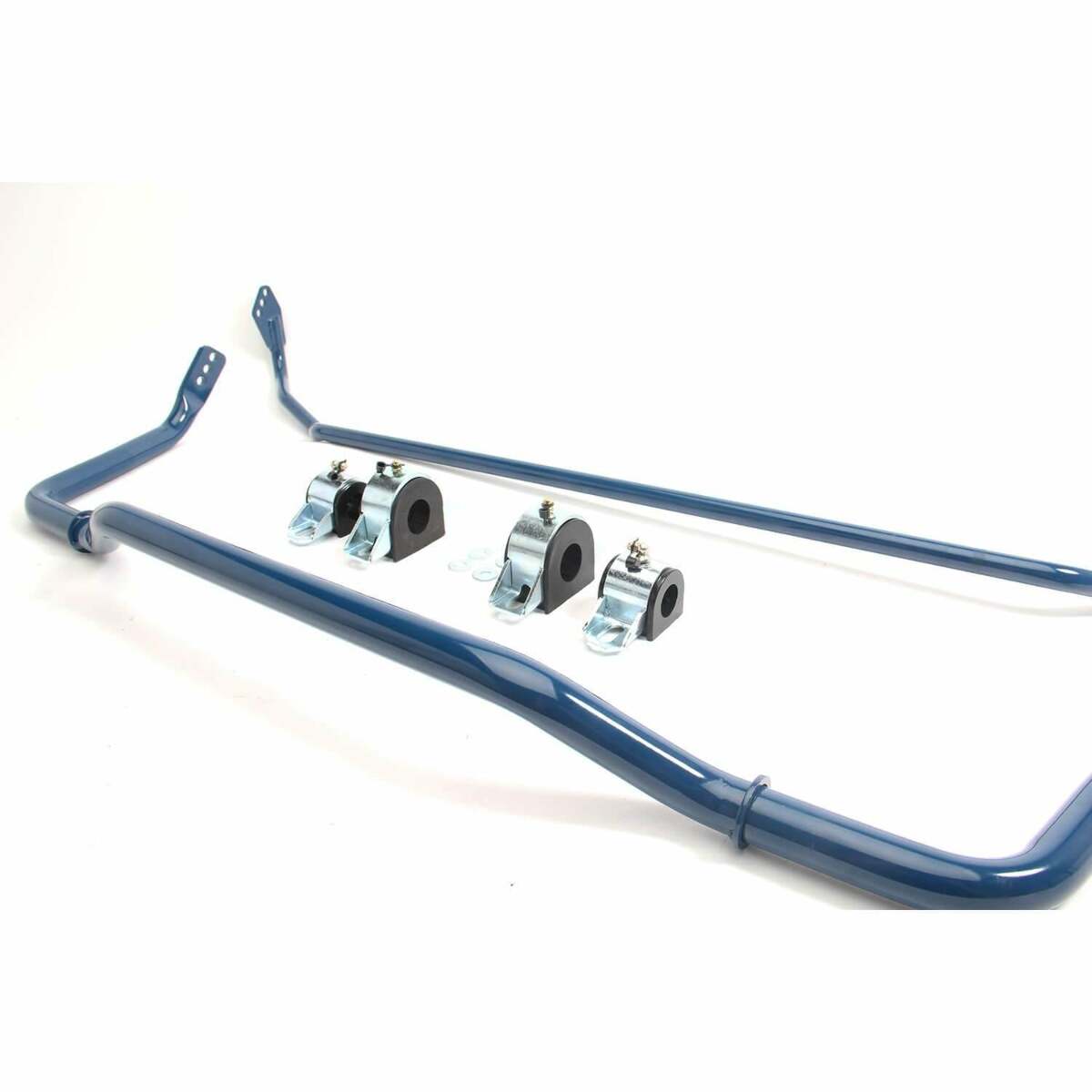

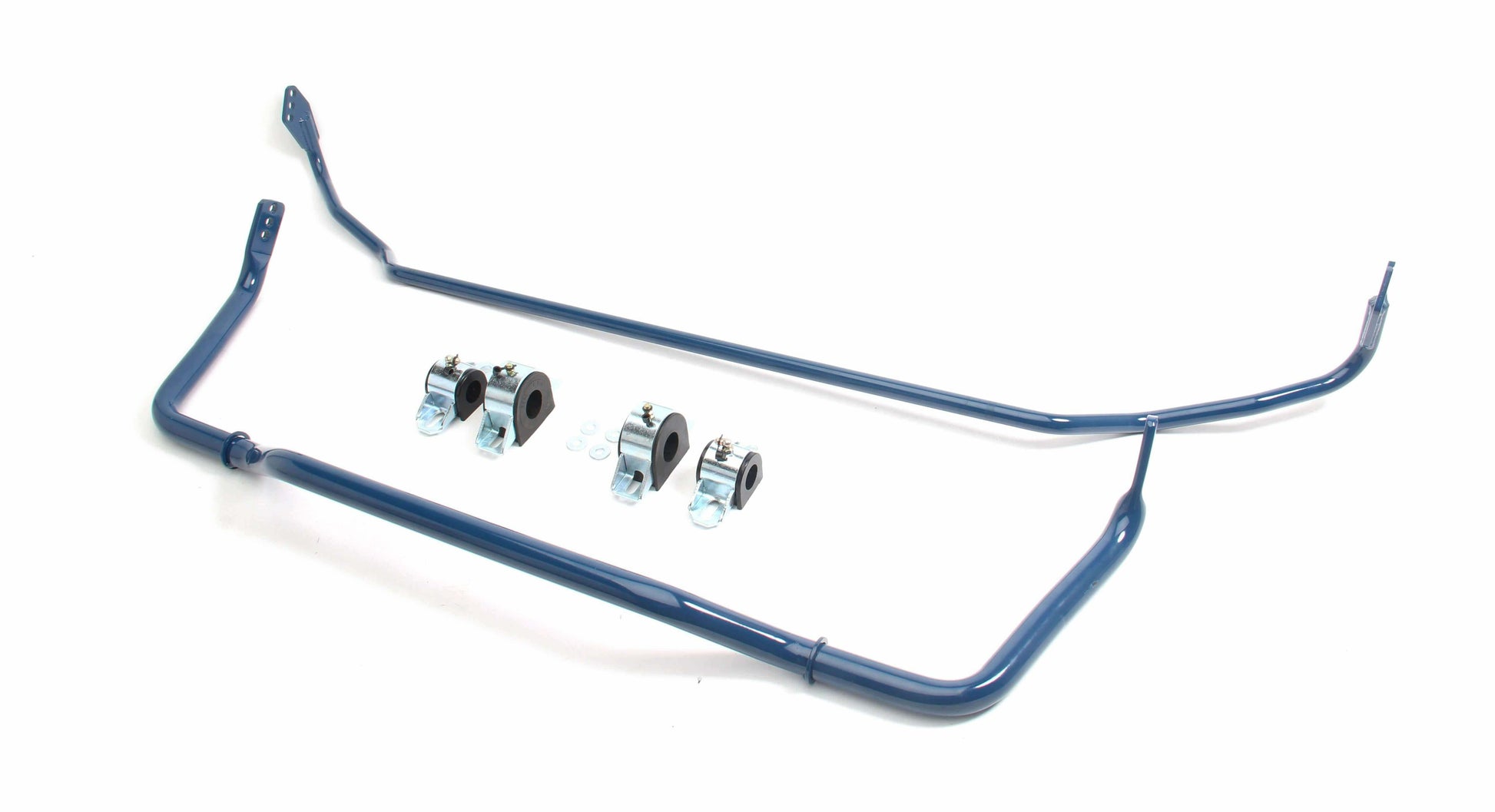

Dinan Anti-Roll Bar Set Compatible with 2013-2020 BMW D120-0595
Dinan Anti-Roll Bar Set Compatible with 2013-2020 BMW D120-0595
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Material:
Overview:
Almost all street cars come from the manufacturer with an anti-roll bar as it is a common part of modern suspension systems. However, they are designed to be overly soft for maximum comfort. An anti-roll bar does exactly what it says by reducing body roll in all situations. Every Dinan tuned anti-roll bar is built and tuned specifically for each BMW chassis. Lowering the amount of body roll keeps your BMW more level than stock (while still allowing just enough body roll) to improve mechanical grip. This improvement gives the driver a much more planted and confident feeling in every corner.
Front Anti-Roll Bar (for xDrive)
Add a 25mm Lightweight Tubular Adjustable Front Anti-Roll Bar to reduce body roll to improve grip and stability while saving weight at the same time. This anti-roll bar is adjustable up to 45% to 93% stiffer than the stock bar*. This 3 hole bar can be mounted in 3 different positions with stock BMW end links.
*Stock bar is 23.6 mm on the M235i/M240i which means the new bar can be adjusted from 45% to 74% stiffer than the stock front sway bar.
The stock bar is 22.5 mm on the 228i/230i/320i/328i/330i/428i/430i which means the new bar can be adjusted from 61% to 93% stiffer than the stock front sway bar.
The stock bar is 22.5 mm on the 335i/340i/435i/440i which means the new bar can be adjusted from 54% to 84% stiffer than the stock front sway bar.
Rear Anti-Roll Bar
Add a 19mm Lightweight Tubular Adjustable Rear Anti-Roll Bar to reduce body roll to improve grip and stability while saving weight at the same time. This anti-roll bar is adjustable up to 359% to 474% stiffer than the stock bar*. This 3 hole bar can be mounted in 3 different positions with stock BMW end links.
*Stock bar is 12 mm which means the new bar can be adjusted from 359% to 474% stiffer than the stock rear sway bar.
Features:
- Front - Large 25mm size (stock bar is 22.5.2 to 25mm depending on application); Rear - Large 19mm size (stock bar is 12mm)

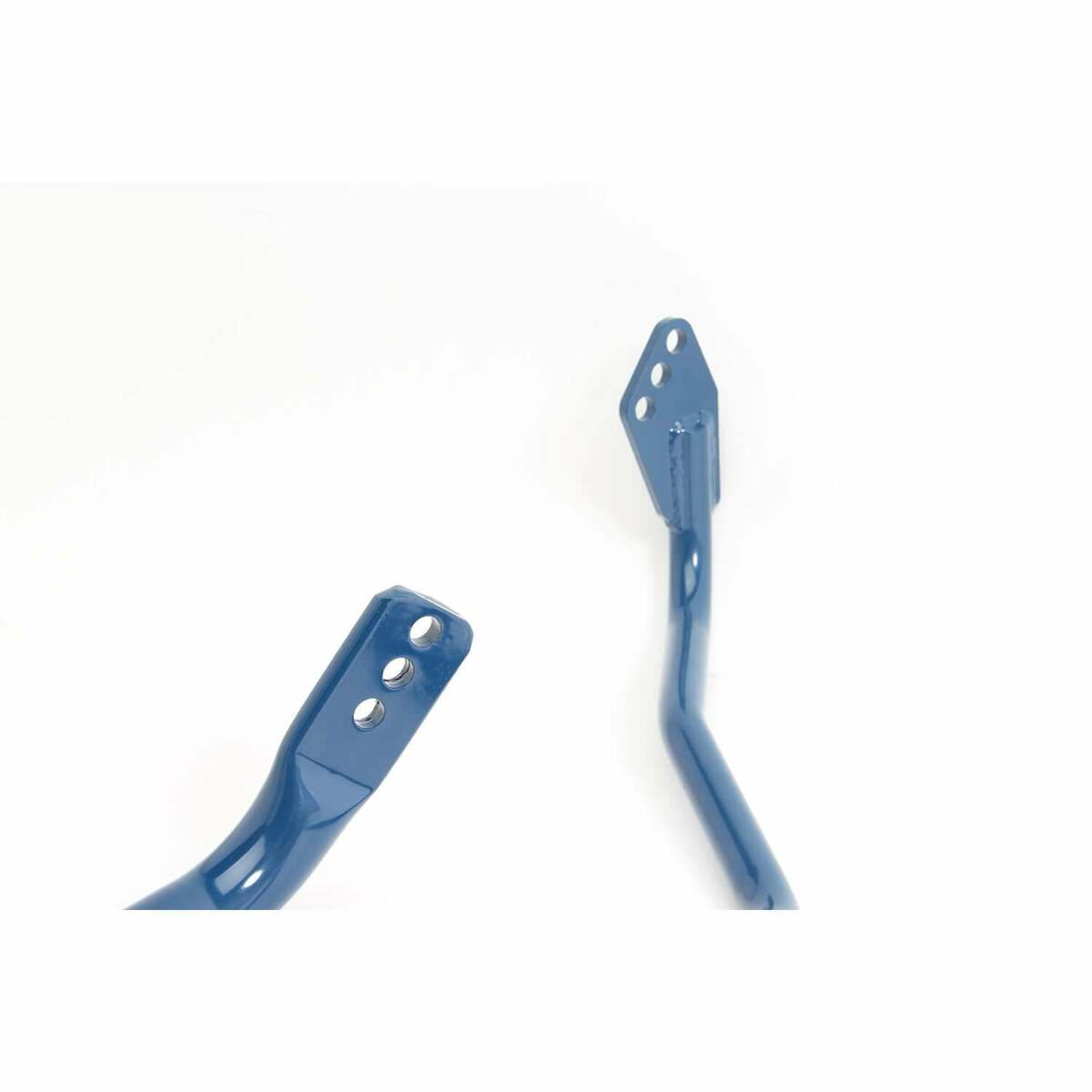

- Front - 3 hole bar with 3 possible positions on bar; Rear - 3 hole bar with 3 possible positions on bar
- Tubular (hollow) construction
- Only tubular anti-roll bars with a large range of adjustment on the market
- Less body roll
- More mechanical grip
- More stable at the limit
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2013 - 2016 | BMW | 320i xDrive | ||
| 2013 - 2016 | BMW | 328i xDrive | ||
| 2013 - 2015 | BMW | 335i xDrive | ||
| 2014 - 2016 | BMW | 428i xDrive | ||
| 2014 - 2016 | BMW | 435i xDrive | ||
| 2015 - 2016 | BMW | 228i xDrive | ||
| 2015 - 2016 | BMW | 428i xDrive Gran Coupe | ||
| 2015 - 2016 | BMW | 435i xDrive Gran Coupe | ||
| 2015 - 2016 | BMW | M235i xDrive | ||
| 2016 | BMW | 340i xDrive |
Specs:
| Brand | Dinan |
|---|---|
| Color | Blue |
| Dinan Point Value | 2 |
| Emission Code | 5 |
| Height | 4 |
| Labor Time (Hours) | 7.4 |
| Length | 40 |
| Product Type | Sway Bar |
| Warning | California Proposition 65 |
| Weight | 30 |
| Width | 10 |
