APR Spherical Pendulum Mount - PQ35 - MS100106

APR Spherical Pendulum Mount - PQ35 - MS100106

MS100106-CP

$349.95 USD
$349.95 USD
Sale Sold out

Estimated Shipping Widget will be displayed here!

Material:

Overview:

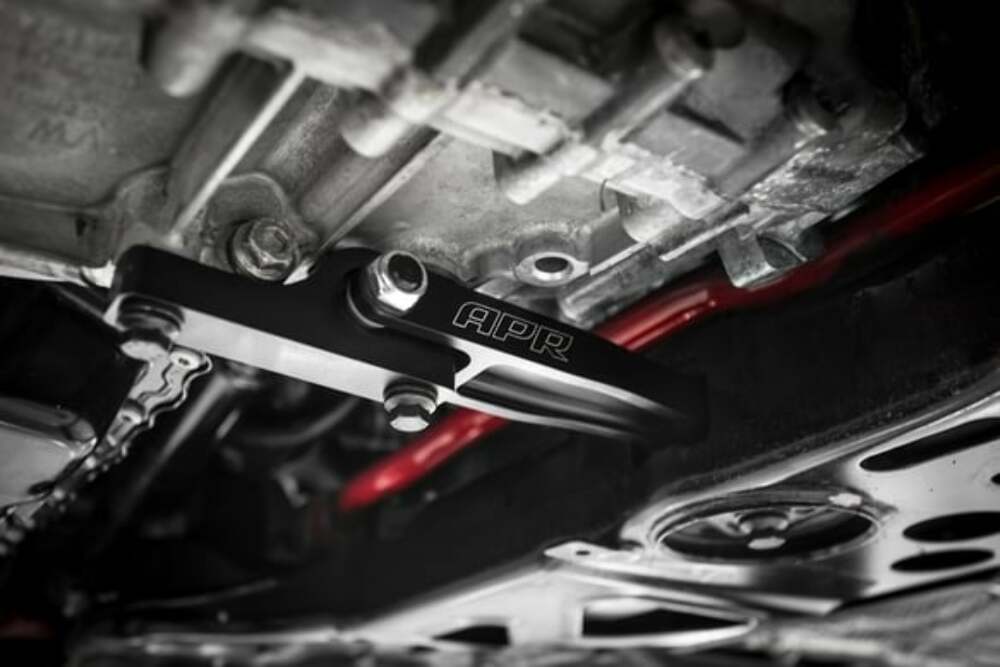

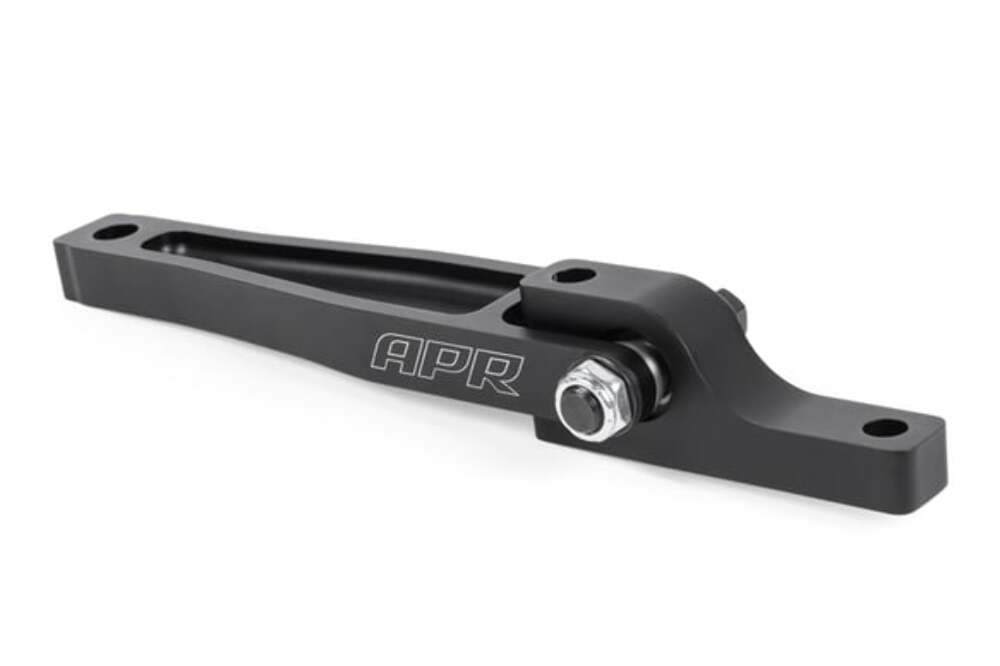

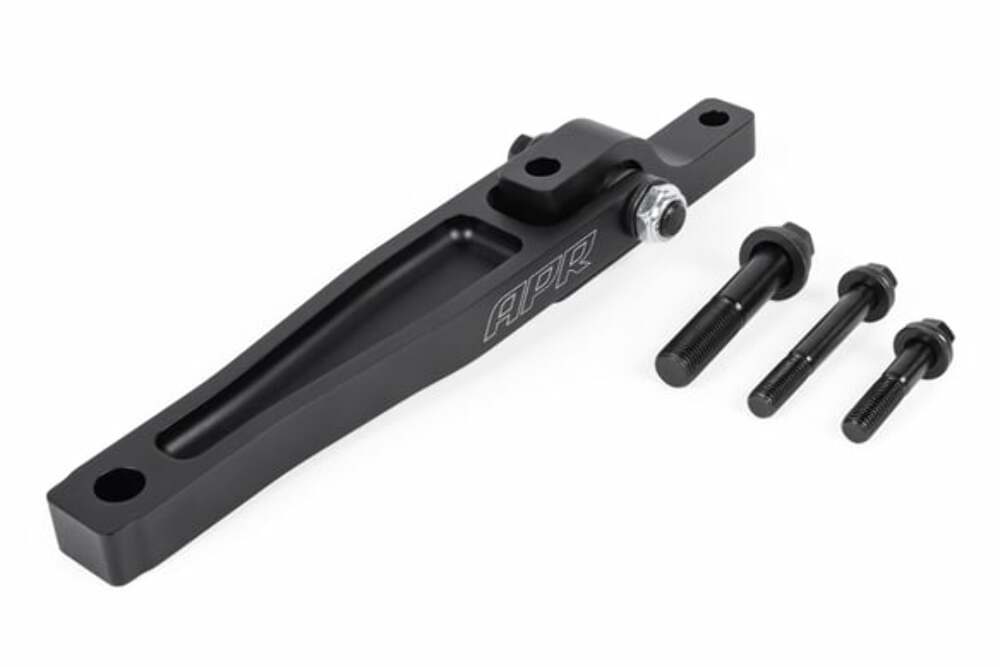

The APR Pendulum mount replaces the factory mount with a new, thick, billet-aluminum two-piece design, featuring a PTFE-lined spherical bearing and ARP® bolts. The system stiffens the driveline to improve shift quality and power transition, while addressing the common and costly factory failure point at the transmission mounting location. It is easy to install, addresses all concerns with the factory setup and includes all necessary hardware to bolt on and enjoy!

Features:

  • Reduces transmission movement
  • By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground.
  • Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.
  • Reduces transmission failure
  • The factory rear mounting point was upgraded to the new MQB / MK7 platform style mount as the older design was prone to failure under heavy use.
  • Because of the new design's mounting orientation, the system is far less likely to tear out or break the rear bolts, which typically results in costly repairs or full transmission case replacement.
  • Spherical bearing
  • Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts.
  • As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware.
  • The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.
  • Billet aluminum construction
  • The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum pieces that are both lightweight and strong.
  • Each piece is anodized black to provide corrosion resistance and the APR logo is laser etched on each side.

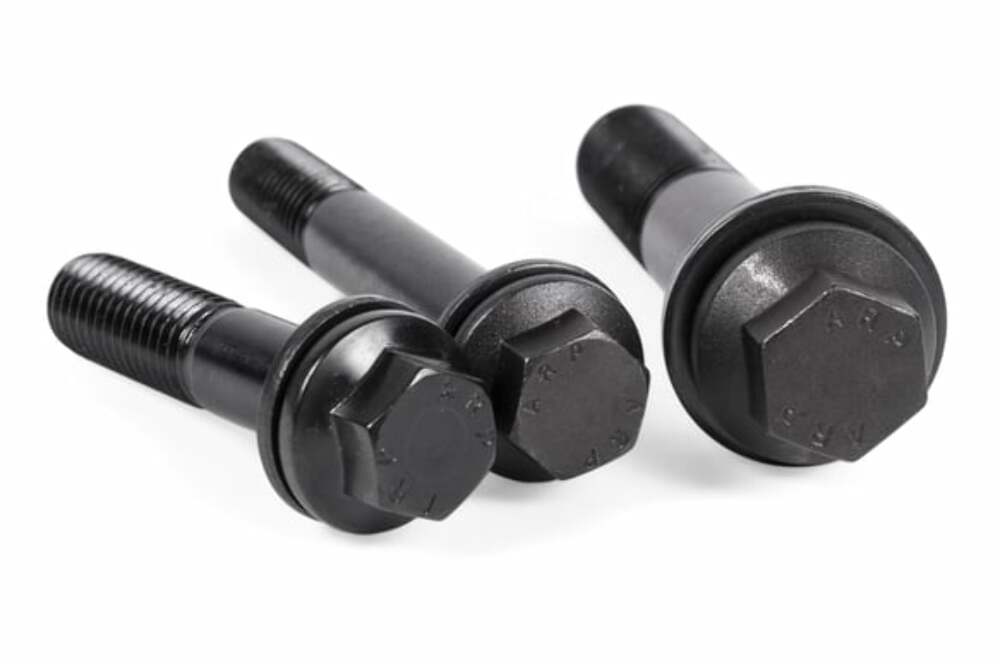

  • Replacement Bolts
  • The factory bolts are one-time-use, and must be replaced when installing a new mount.
  • The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.
  • Easy to install
  • The system is easy to install, doesn't require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts.
  • Full install directions are included with each system

Application:

Year Make Model Submodel Engine Size
2016 Volkswagen Beetle Wolfsburg Edition 110/1.8L L4
2016 Volkswagen Beetle Denim 110/1.8L L4
2017 Volkswagen Beetle #PinkBeetle 110/1.8L L4
2005 Volkswagen Jetta GLS 121/2L L4
2012 Volkswagen CC Lux Plus 121/2L L4
2007 Volkswagen GTI Fahrenheit 121/2L L4
2016 Volkswagen Beetle R-Line S 121/2L L4
2016 Volkswagen Beetle R-Line SE 121/2L L4
2019 Volkswagen Beetle Final Edition SE 121/2L L4
2019 Volkswagen Beetle Final Edition SEL 121/2L L4
2018 Volkswagen Beetle Coast 121/2L L4
2018 Volkswagen Beetle Dune 121/2L L4
2013 Volkswagen CC Sport Plus 121/2L L4
2007 Volkswagen Eos Base 121/2L L4
2008 Volkswagen Eos Turbo 121/2L L4
2007 Volkswagen Passat Wolfsburg Edition 121/2L L4
2007 Volkswagen Eos 2.0T 121/2L L4
2005 Volkswagen Jetta GL 121/2L L4
2015 Volkswagen Eos Final Edition 121/2L L4
2012 Volkswagen CC Lux Limited 121/2L L4
2009 Volkswagen Jetta SEL 121/2L L4
2008 Volkswagen Passat Lux 121/2L L4
2008 Volkswagen Passat Turbo 121/2L L4
2016 Volkswagen CC Trend 121/2L L4
2014 Volkswagen GTI Driver's Edition 121/2L L4
2014 Volkswagen GTI Wolfsburg Edition 121/2L L4
2014 Volkswagen Beetle GSR 121/2L L4
2015 - 2016 Volkswagen Beetle Fleet Edition 110/1.8L L4
2016 - 2017 Volkswagen Beetle SEL 110/1.8L L4
2014 - 2015 Volkswagen Beetle Base 110/1.8L L4
2016 - 2017 Volkswagen Beetle Dune 110/1.8L L4
2016 - 2017 Volkswagen Beetle S 110/1.8L L4
2016 - 2017 Volkswagen Beetle SE 110/1.8L L4
2012 - 2013 Audi TT Quattro Premium Plus 121/2L L4
2016 - 2017 Volkswagen Beetle R-Line SEL 121/2L L4
2015 - 2016 Volkswagen Jetta GLI SEL 121/2L L4
2014 - 2015 Volkswagen CC Executive 121/2L L4
2015 - 2016 Volkswagen Jetta GLI SE 121/2L L4
2016 - 2017 Volkswagen CC R-Line Executive 121/2L L4
2012 - 2013 Volkswagen CC Lux 121/2L L4
2018 - 2019 Volkswagen Beetle S 121/2L L4
2018 - 2019 Volkswagen Beetle SE 121/2L L4
2012 - 2013 Audi TT Quattro Prestige 121/2L L4
2012 - 2013 Volkswagen Beetle Turbo 121/2L L4
2013 - 2014 Volkswagen Eos Sport 121/2L L4
2012 - 2013 Volkswagen Golf R Base 121/2L L4
2006 - 2007 Volkswagen Passat 2.0T 121/2L L4
2006 - 2007 Volkswagen Passat Value Edition 121/2L L4
2006 - 2007 Volkswagen Jetta 2.0T 121/2L L4
2008 - 2009 Audi TT Base 121/2L L4
2015 - 2017 Volkswagen Beetle Classic 110/1.8L L4
2008 - 2010 Volkswagen Passat Komfort 121/2L L4
2009 - 2011 Volkswagen CC Luxury 121/2L L4
2008 - 2010 Volkswagen Jetta Wolfsburg Edition 121/2L L4
2013 - 2015 Volkswagen Beetle R-Line 121/2L L4
2012 - 2015 Volkswagen Eos Executive 121/2L L4
2010 - 2014 Volkswagen Golf TDI 120/2L L4
2009 - 2013 Audi A3 Quattro Base 121/2L L4
2011 - 2015 Volkswagen Jetta S 121/2L L4
2011 - 2015 Volkswagen Jetta Base 121/2L L4
2010 - 2014 Volkswagen Golf Base 151/2.5L L5
2008 - 2013 Volkswagen Eos Lux 121/2L L4
2011 - 2016 Volkswagen CC R-Line 121/2L L4
2009 - 2015 Audi TT Quattro Base 121/2L L4
2006 - 2013 Audi A3 Base 121/2L L4
2006 - 2013 Volkswagen GTI Base 121/2L L4
2008 - 2016 Volkswagen Eos Komfort 121/2L L4
2009 - 2017 Volkswagen CC Sport 121/2L L4
2006 - 2018 Volkswagen Jetta GLI 121/2L L4

Specs:

Brand APR
Bushing Spherical Bearing
Color Black
Construction Billet
Emission Code 5
Material 6061 Aluminum
Product Type Pendulum Mount
Transmission Application PQ35 6 Speed & DQ250
