Electric Fuel Pump High Flow EFI Performance Universal Fit Aeromotive 11569-BGPL

Electric Fuel Pump High Flow EFI Performance Universal Fit Aeromotive 11569-BGPL

11569-BGPL-CP

$146.25 USD
$146.25 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

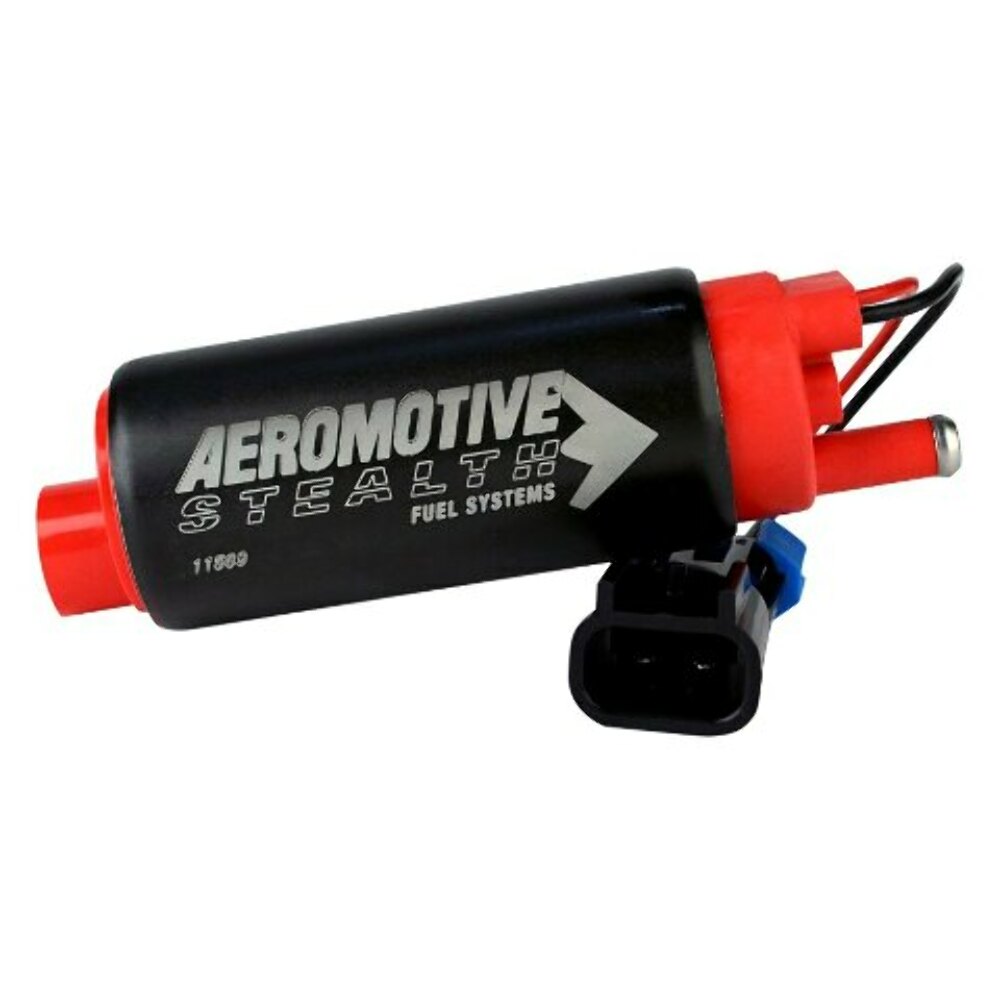

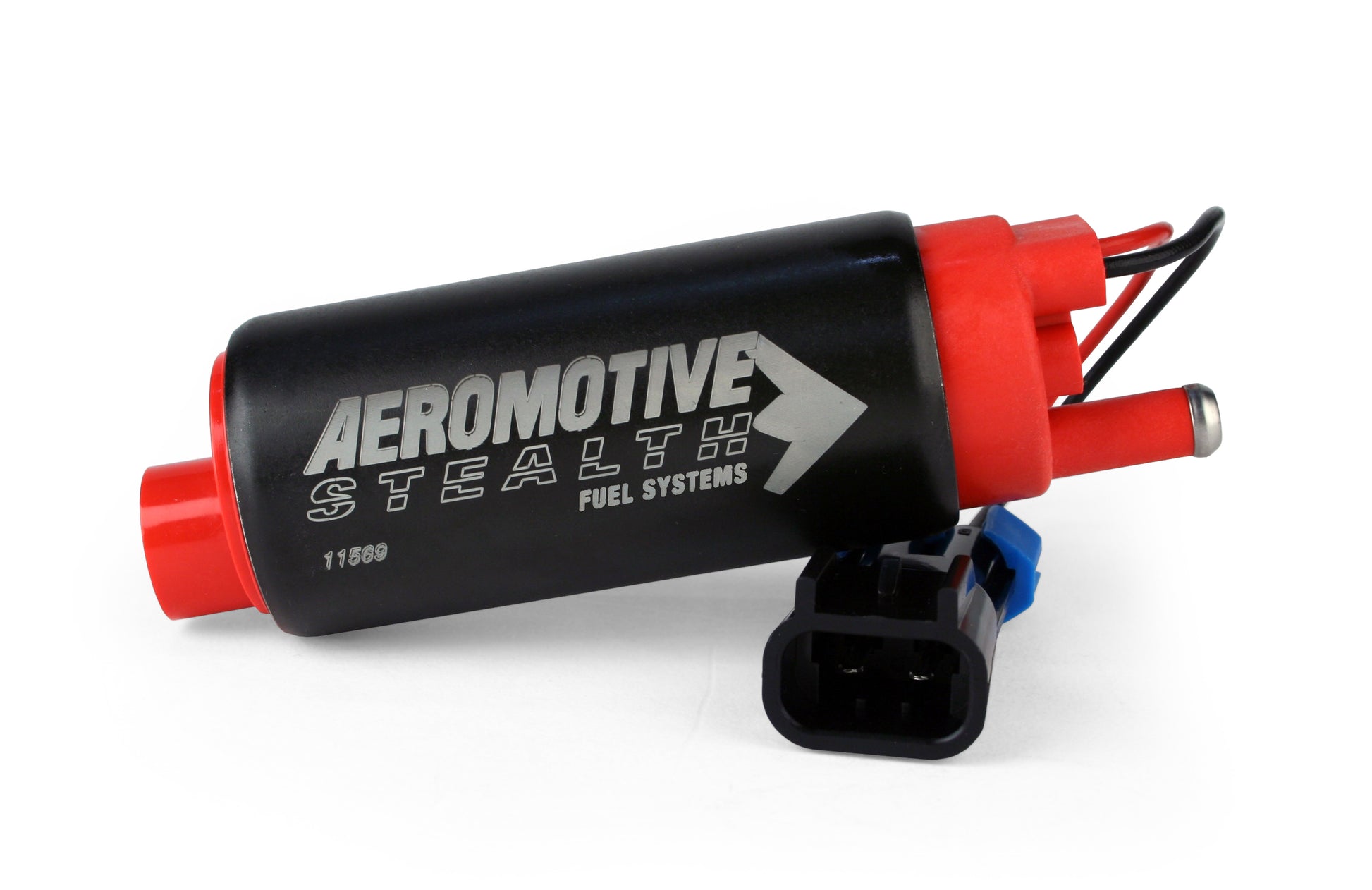

340 Fuel Pump; GM

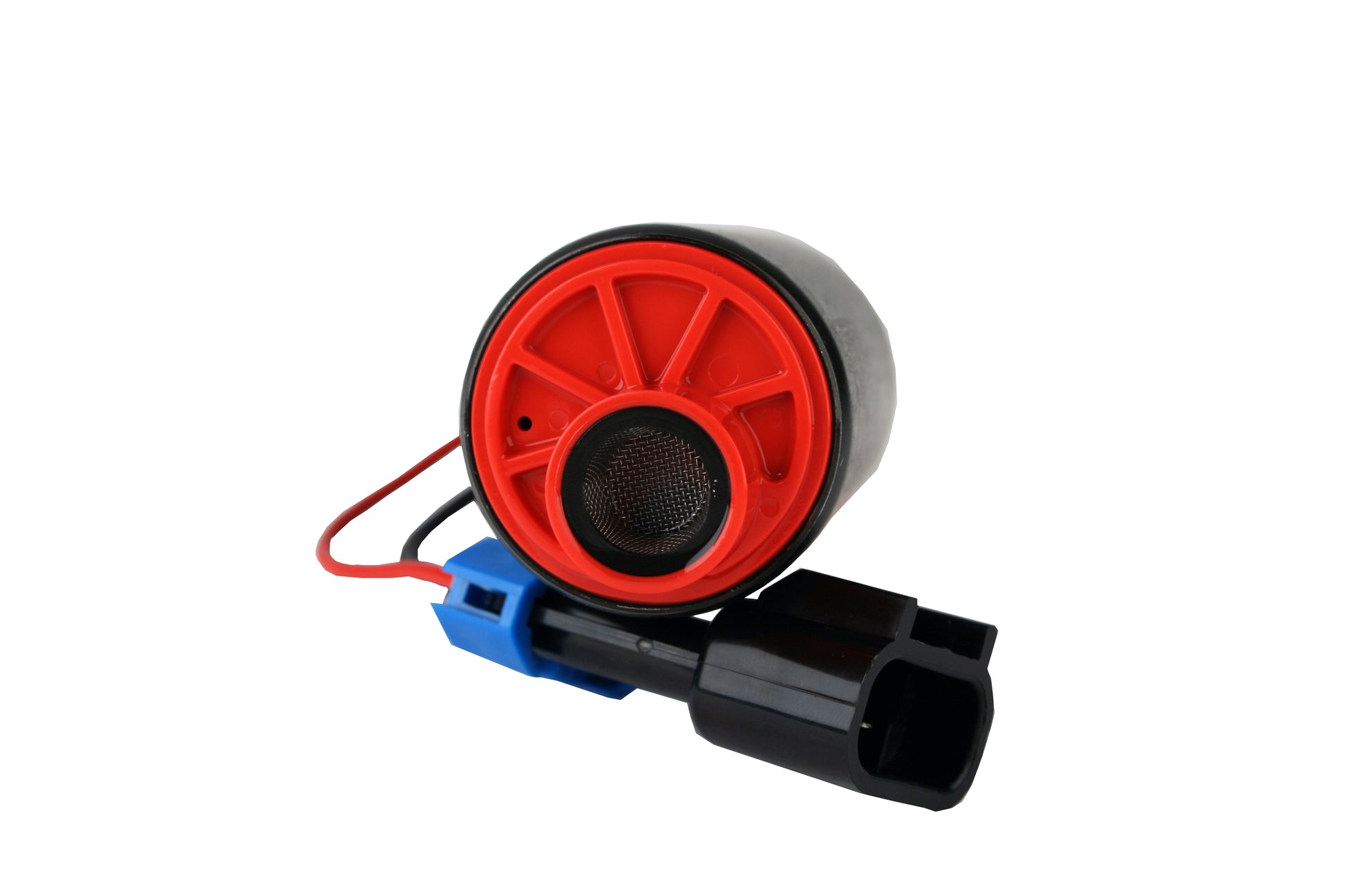

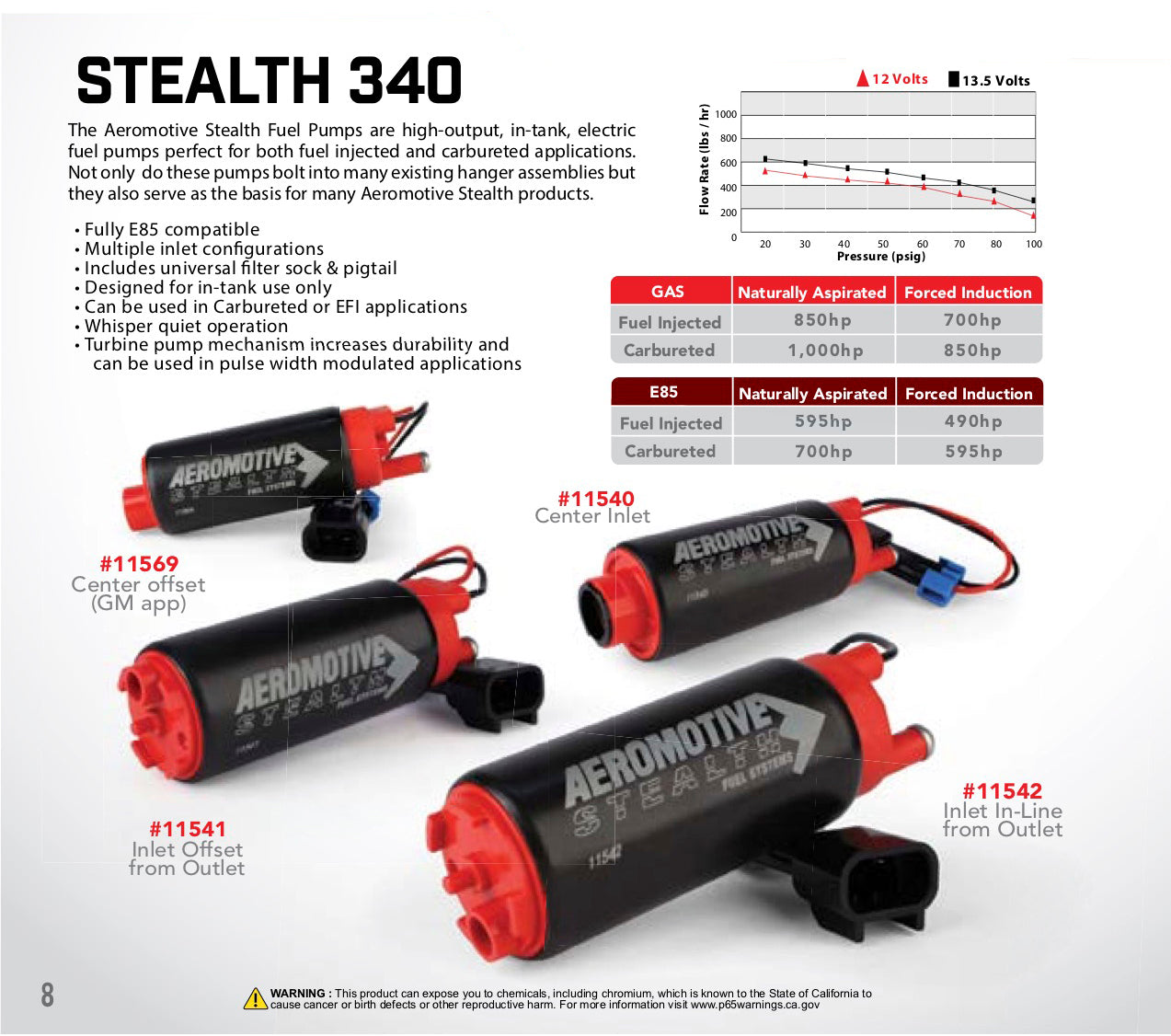

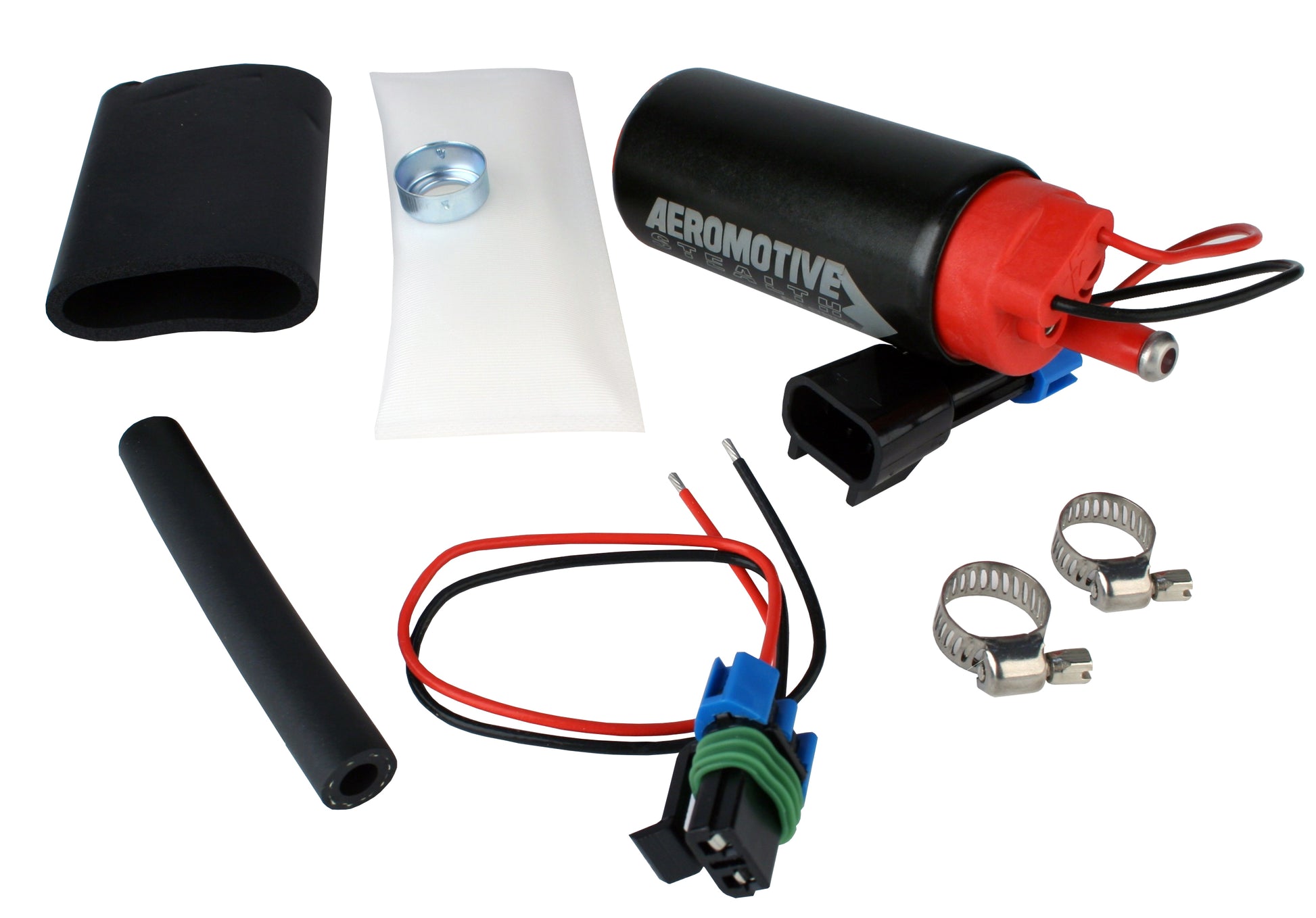

GM specific applications. The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That s over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications. Fits most vehicles where popular aftermarket pumps are applicable. Center Inlet. E85 Compatible. OEM 39mm Body. Includes universal filter sock. Designed for in-tank use only. Can be used in Carbureted or EFI applications. Turbine pump mechanism increases durability and can be used in pulse modulated applications. P/N 11569 Includes: 340 Stealth Pump, Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet). Supersedes P/N 11169.

Specs:

  • Brand: Aeromotive Fuel System
  • Filter Included: No
  • Fuel Delivery Type: Carburation & Fuel Injection
  • Fuel Sending Unit Included: No
  • Fuel Type: Gas/E85
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Integrated Controller: No
  • Internal Or External: Internal
  • Maximum Current Draw: 15.5
  • Maximum Flow Rating: 340
  • Maximum Pressure: 65
  • Mounting Bracket Included: No
  • Mounting Hardware Included: No
  • Negative Ground: Yes
  • Outlet Outside Diameter: 0.35
  • Outlet Type: Barb
  • Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
  • Prop 65 (C, R or CR): CR
  • Prop 65 Flag: Yes
  • Pulse Width Modulation Compatible: Yes
  • Pump Design: turbine impeller
  • Regulator Included: No
  • Seal And Lock Ring Included: No
  • Series: Stealth 340
  • Strainer Included: Yes

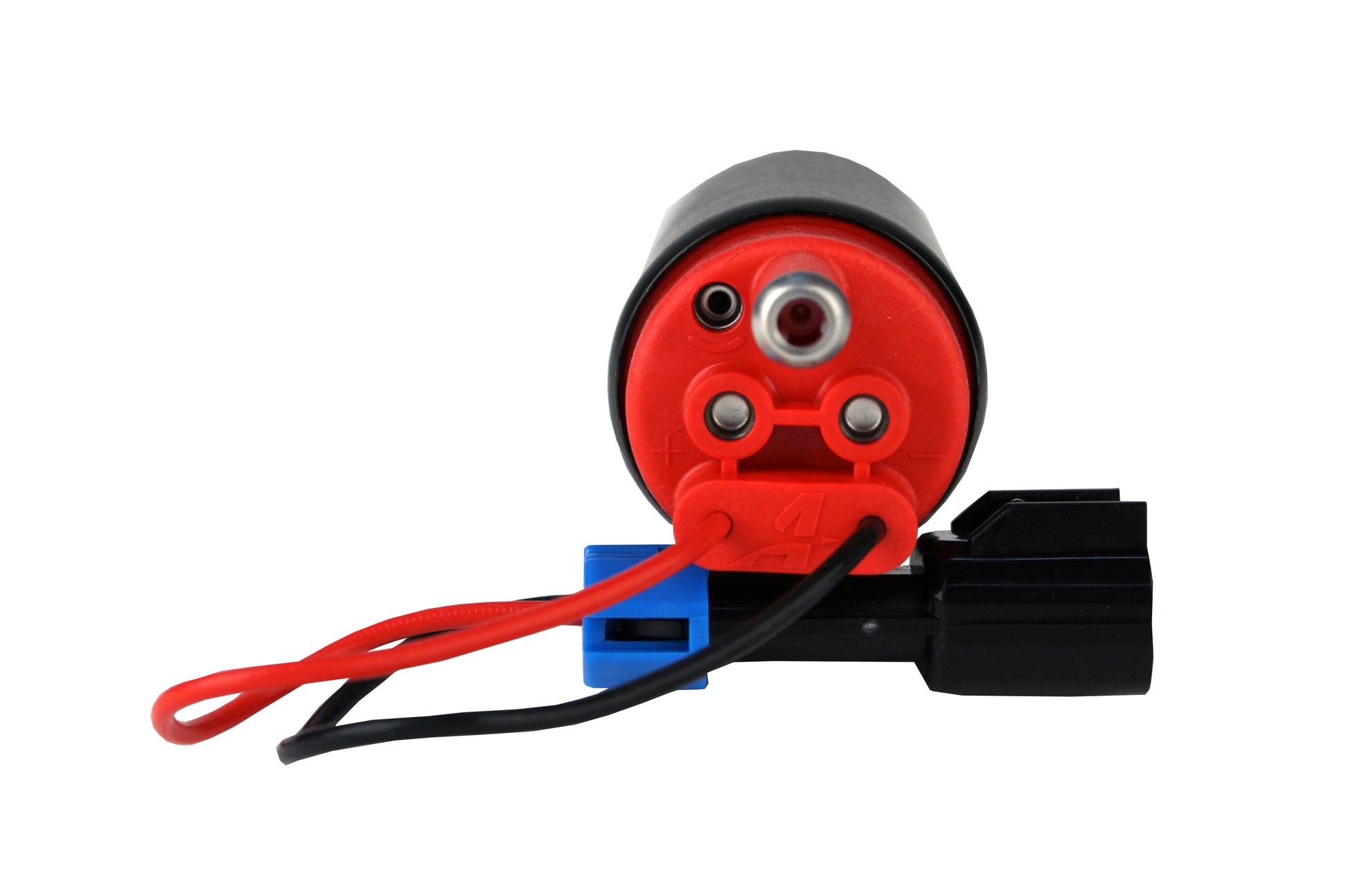

  • Terminal Gender: 280 Metri_Pack
  • Terminal Quantity: 2
  • Terminal Type: Lead Wire
  • Title: Aeromotive 340 Fuel Pump; GM
  • Universal Or Specific Fit: Universal
  • Voltage: 12
  • Wire Quantity: 2
  • Wiring Harness Included: Yes
  • Part Number: 11569

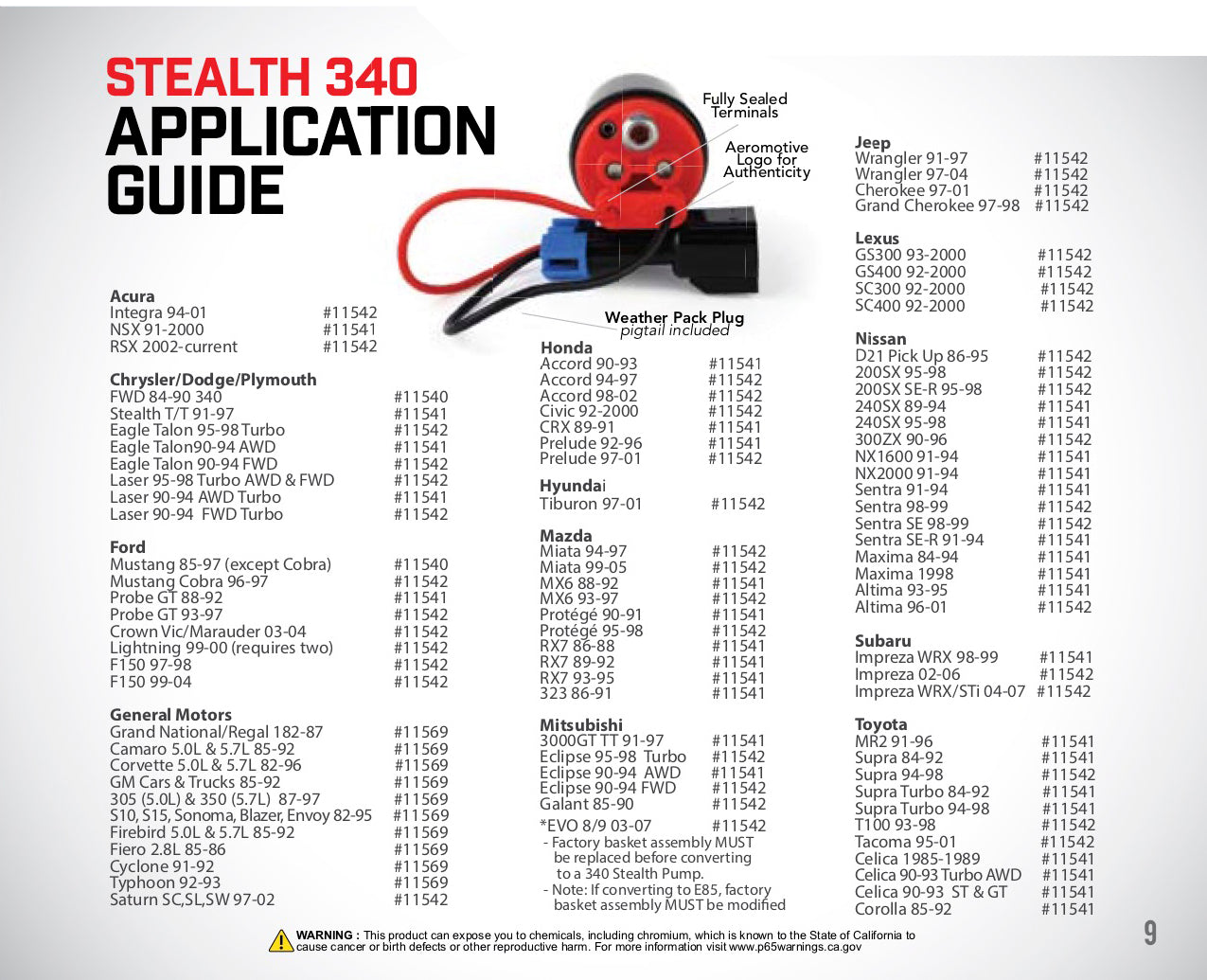

    • Applications:

    • 1982-1987 Buick Regal 305 CID
    • 1982-1987 Buick Regal 267 CID
    • 1982-1987 Buick Regal 231 CID
    • 1982-1987 Buick Regal 307 CID
    • 1982-1987 Buick Regal 252 CID
    • 1985-1992 Chevrolet Camaro 350 CID
    • 1985-1992 Chevrolet Camaro 305 CID
    • 1982-1996 Chevrolet Corvette 350 CID
    • 1983-1994 Chevrolet S10 Blazer - CID
    • 1983-1994 Chevrolet S10 Blazer 122 CID
    • 1983-1994 Chevrolet S10 Blazer 151 CID
    • 1983-1994 Chevrolet S10 Blazer 262 CID
    • 1983-1994 Chevrolet S10 Blazer 119 CID
    • 1983-1994 Chevrolet S10 Blazer 173 CID
    • 1982-1995 Chevrolet S10 - CID
    • 1982-1995 Chevrolet S10 122 CID
    • 1982-1995 Chevrolet S10 151 CID
    • 1982-1995 Chevrolet S10 134 CID
    • 1982-1995 Chevrolet S10 262 CID
    • 1982-1995 Chevrolet S10 119 CID
    • 1982-1995 Chevrolet S10 173 CID
    • 1992-1993 GMC Typhoon 262 CID
    • 1985-1986 Pontiac Fiero 173 CID
    • 1985-1992 Pontiac Firebird 350 CID
    • 1985-1992 Pontiac Firebird 305 CID

    • Emissions:

    • This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
