Fuel Pump High Flow EFI Performance Universal Fit Aeromotive 11117-BGPL

Fuel Pump High Flow EFI Performance Universal Fit Aeromotive 11117-BGPL

11117-BGPL-CP

$1,697.71 USD
$1,697.71 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

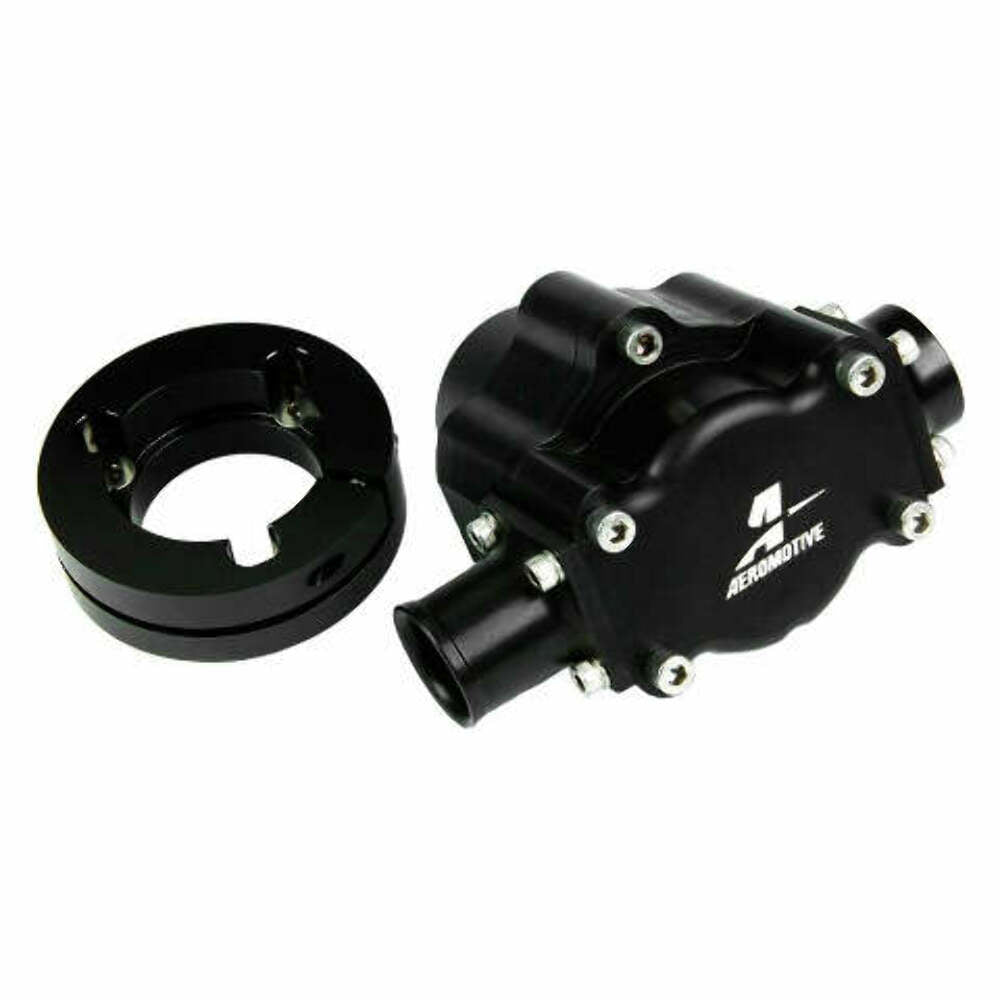

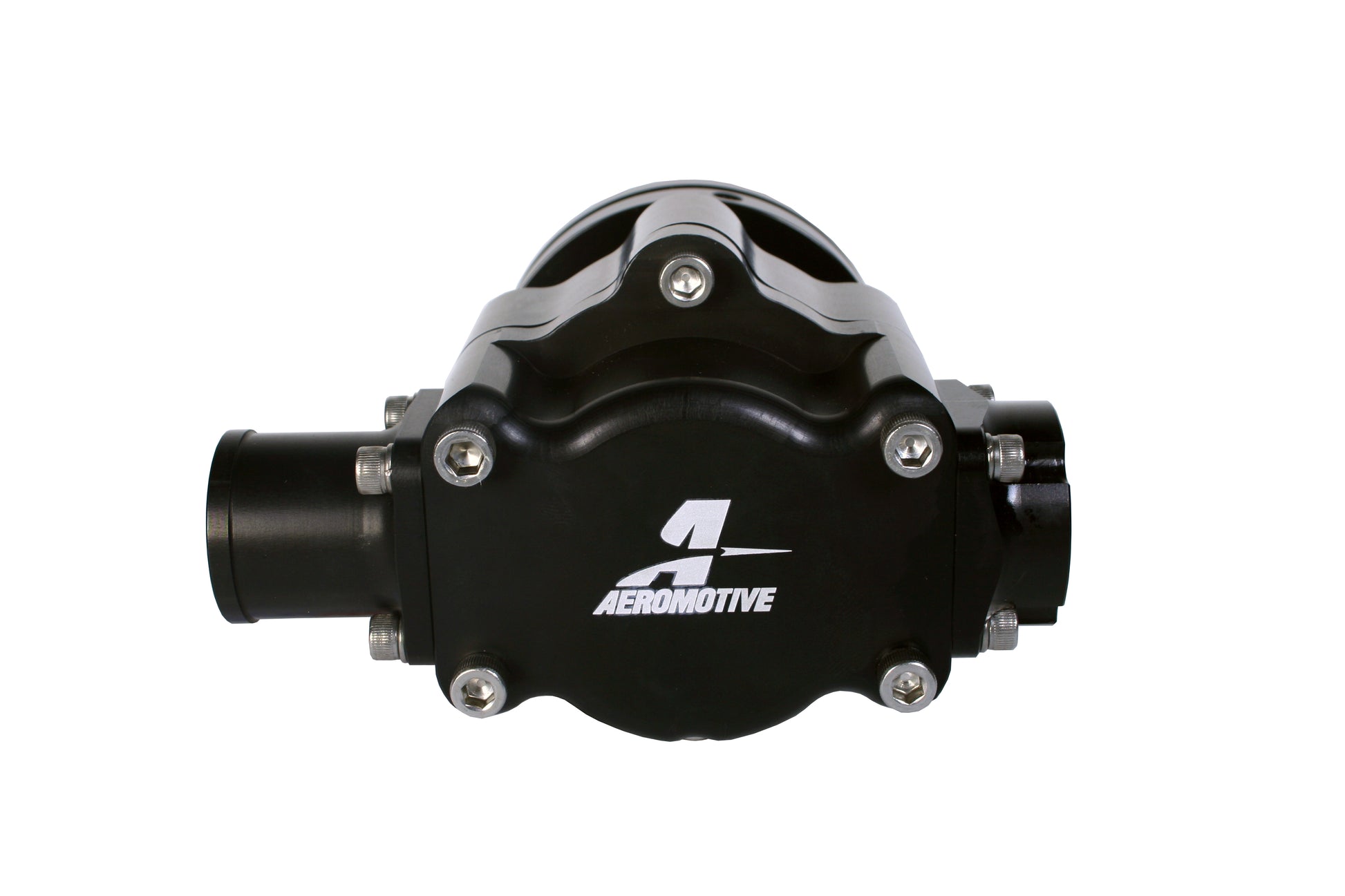

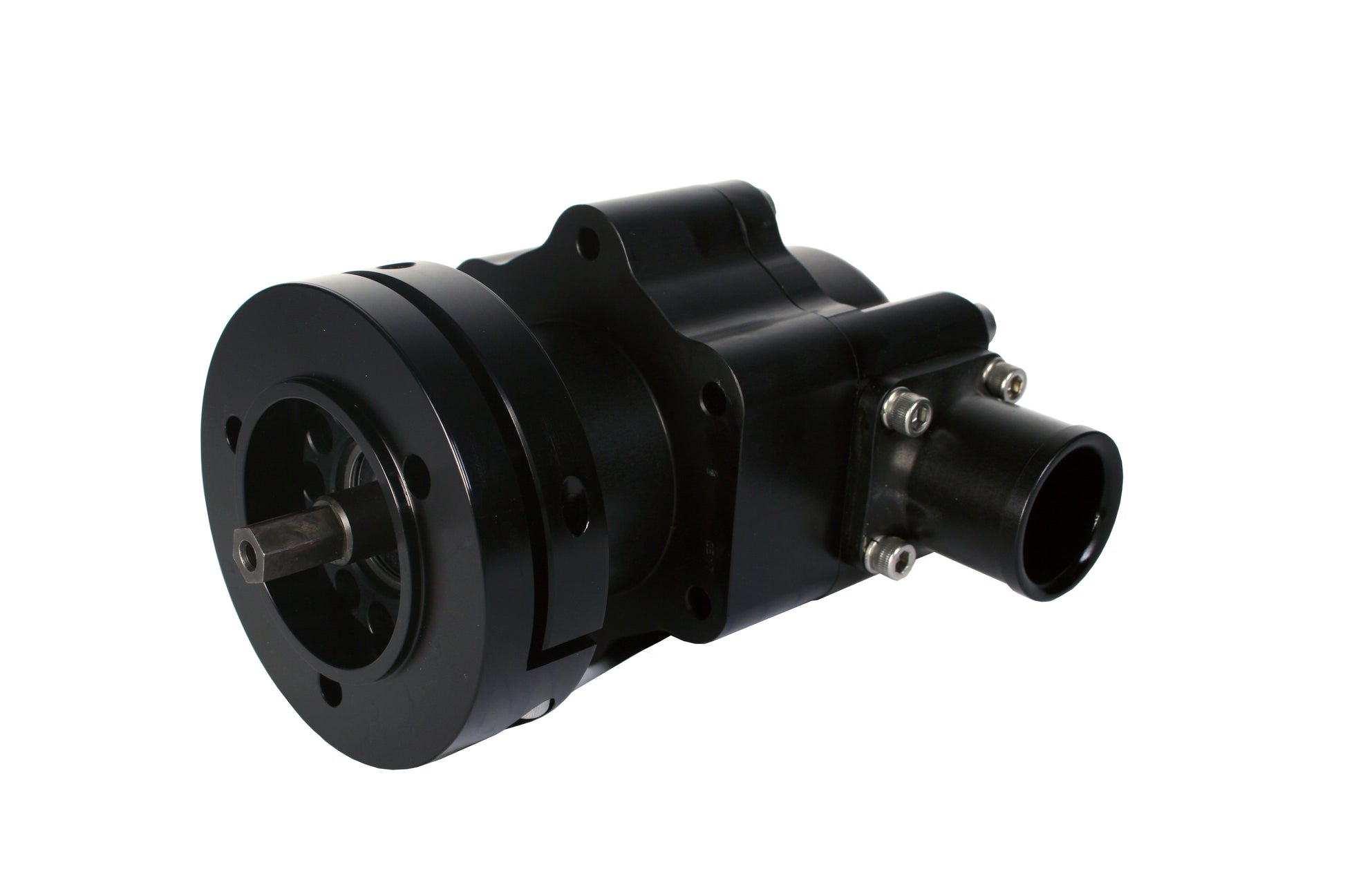

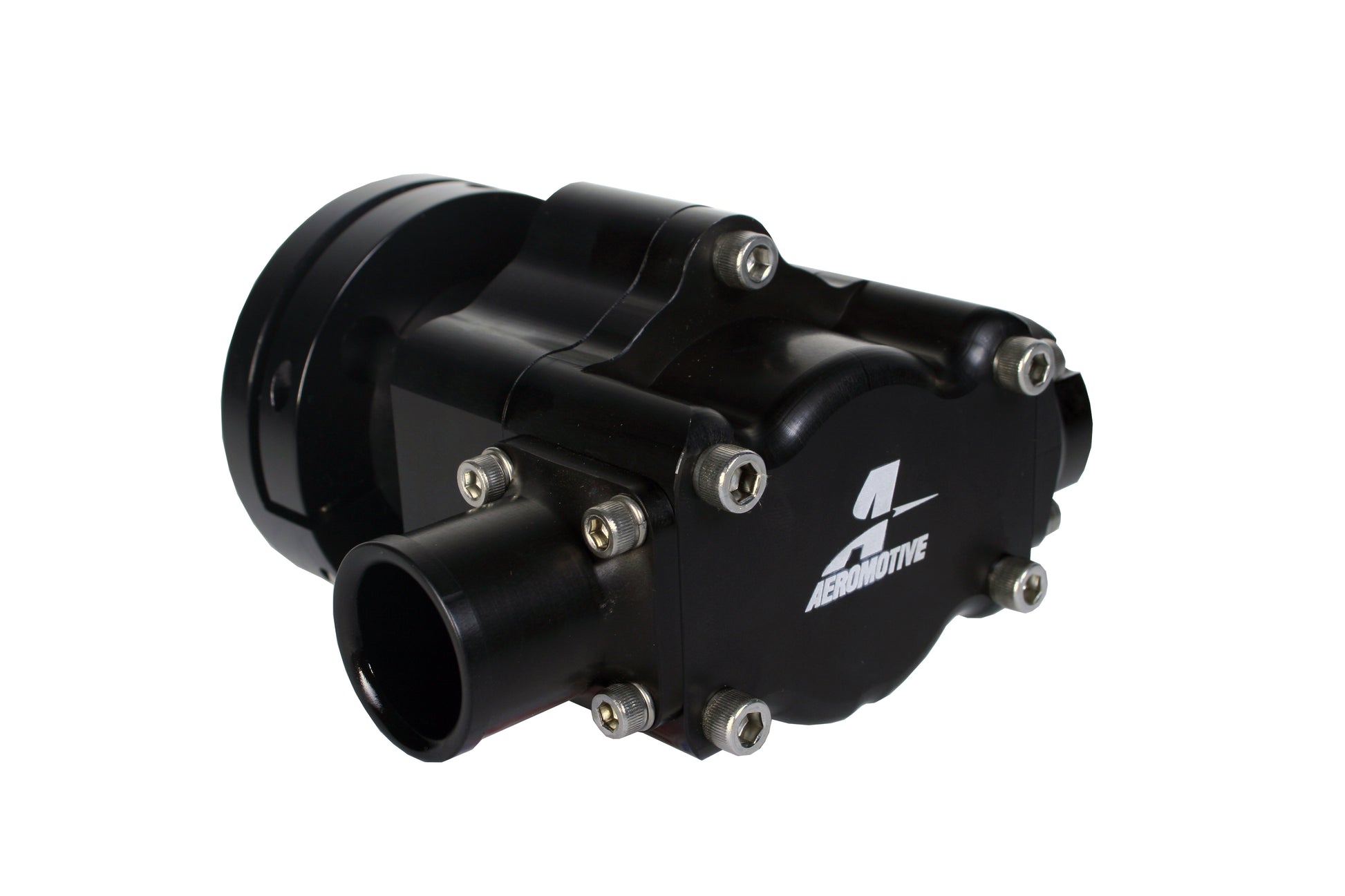

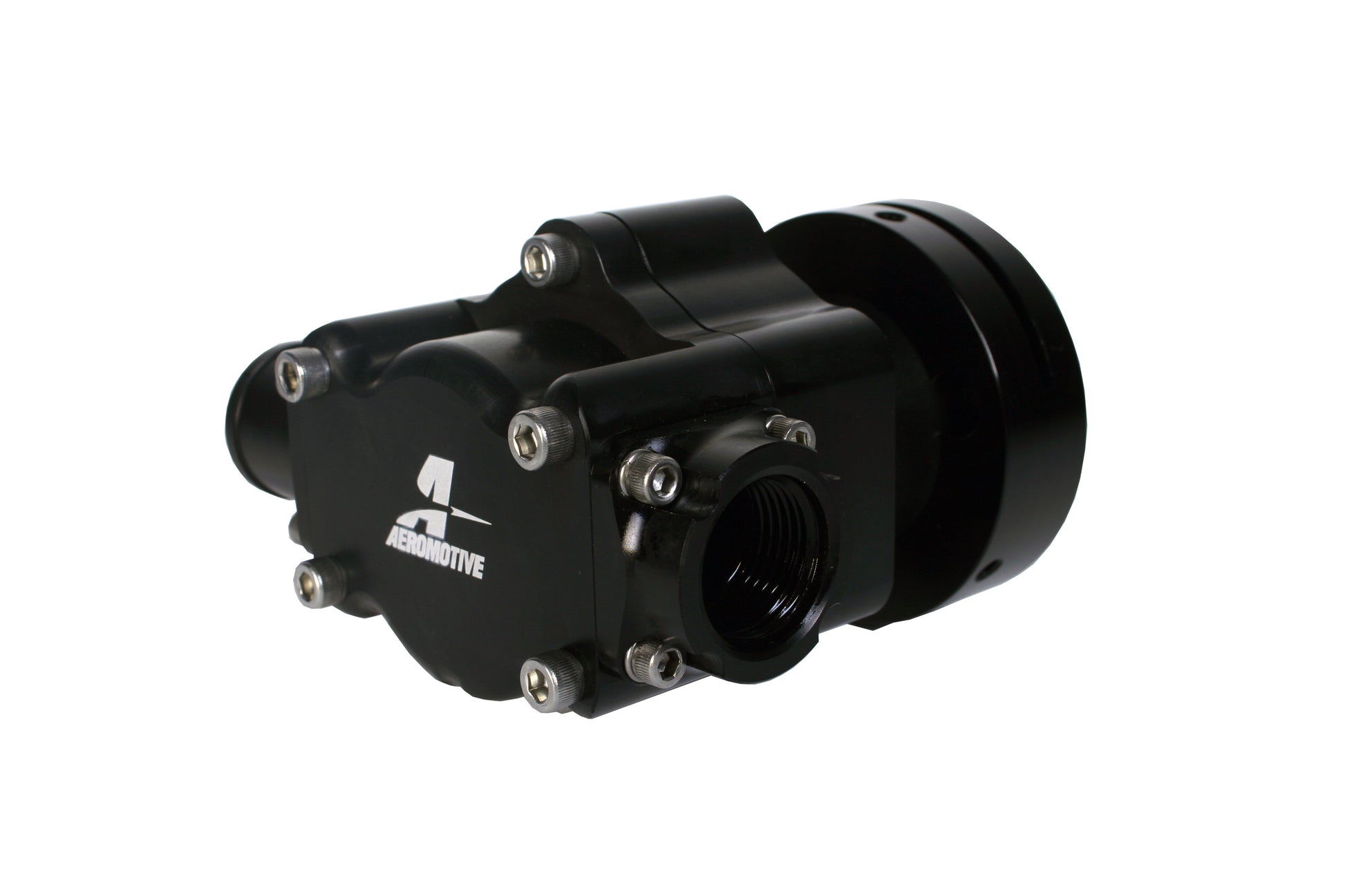

12-Series Hex Drive Mechanical Pump

12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows u p to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators.

Features:

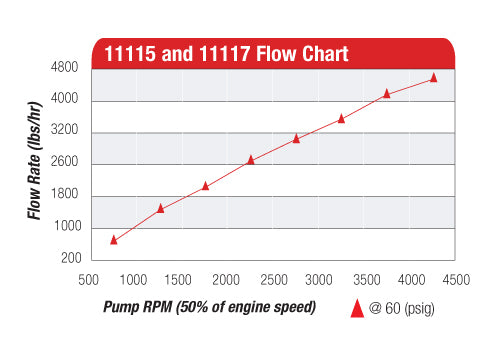

  • Flows up to 12 GPM
  • 5,000+ HP on gas, up to 2500 HP methanol.
  • High efficiency, Gerotor pumping mechanism.
  • Tough, Type III hard coat anodized body.
  • CNC Machined from 6061 T6 aircraft aluminum.
  • Hex Drive Collar with 3-bolt Enderle bolt pattern.
  • Standard male 3/8″ hex driveshaft.

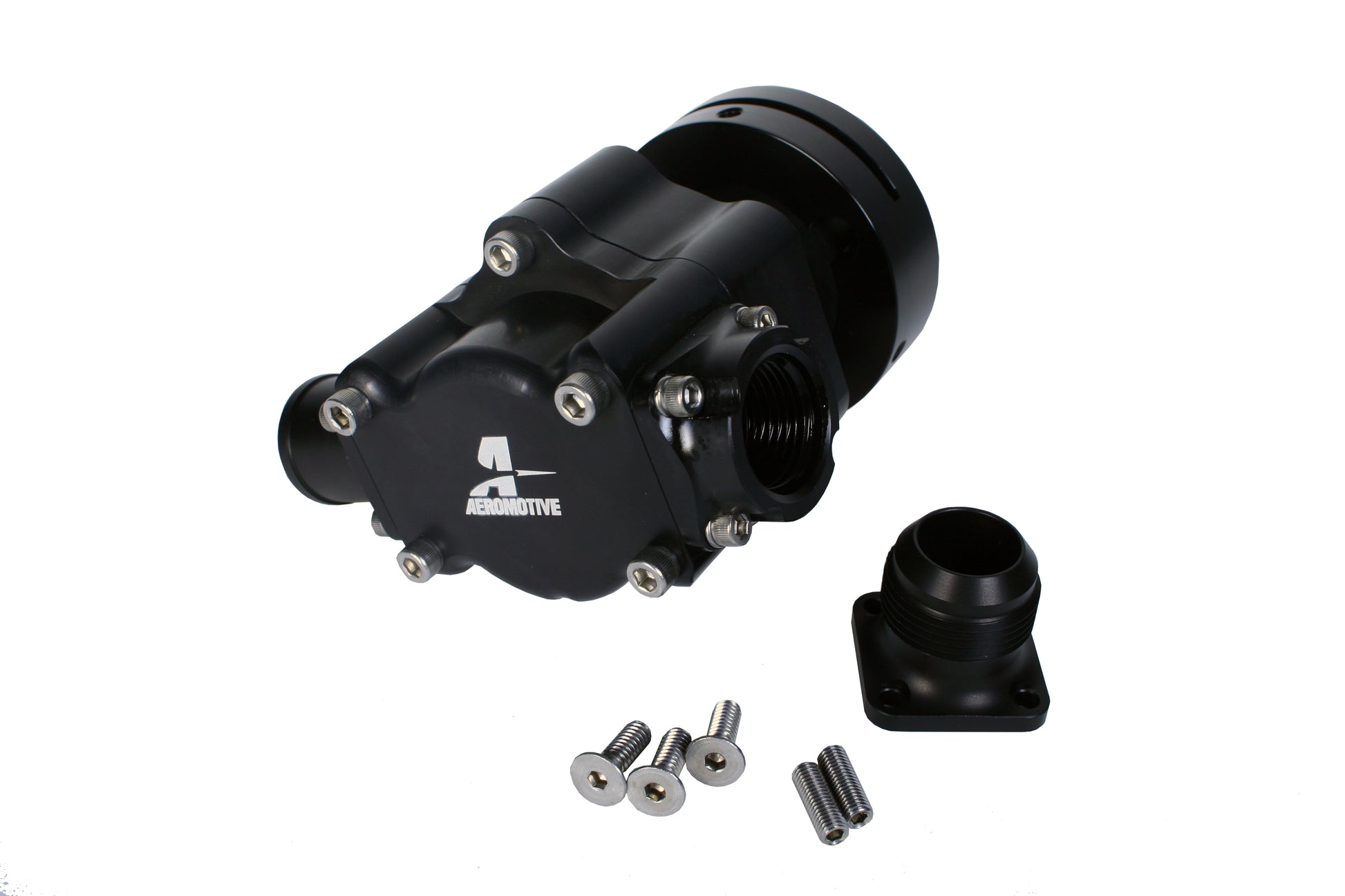

  • Includes both 1.25′ barb and AN-16 Male inlet.
  • ORB-12 female outlet port.
  • EFI applications require high-flow return style regulators: P/N 13132,  13133,  13137 or  13113.
  • Sold Separately: Electric Priming/Starting Kit:  P/N 17301

    • Specs:

  • Brand: Aeromotive Fuel System
  • EFI HP on Gas: 5000
  • Inlet Diameter: 1.25
  • Inlet Outside Diameter: ORB-16
  • Mounting Type: External
  • Outlet Diameter: 0.75
  • Outlet Outside Diameter: ORB - 12
  • Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
  • Prop 65 (C, R or CR): CR
  • Prop 65 Flag: Yes
  • Title: Aeromotive 12-Series Hex Drive Mechanical Pump
  • Part Number: 11117

    • Emissions:

    • This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
