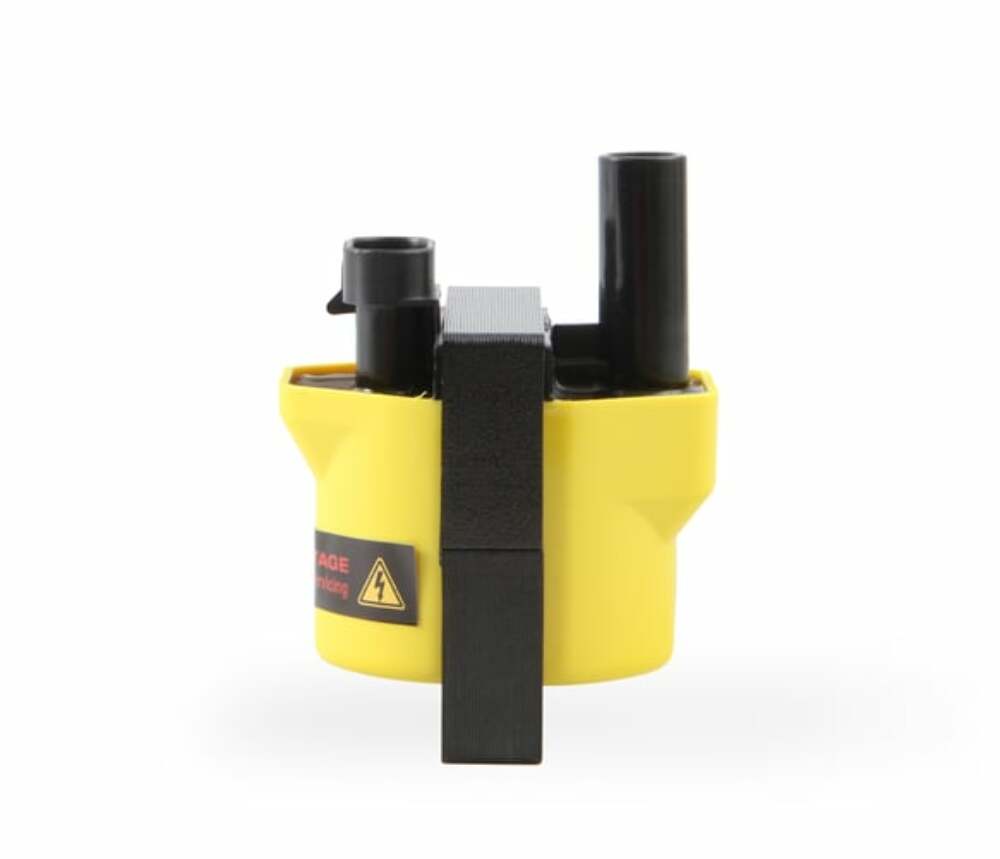

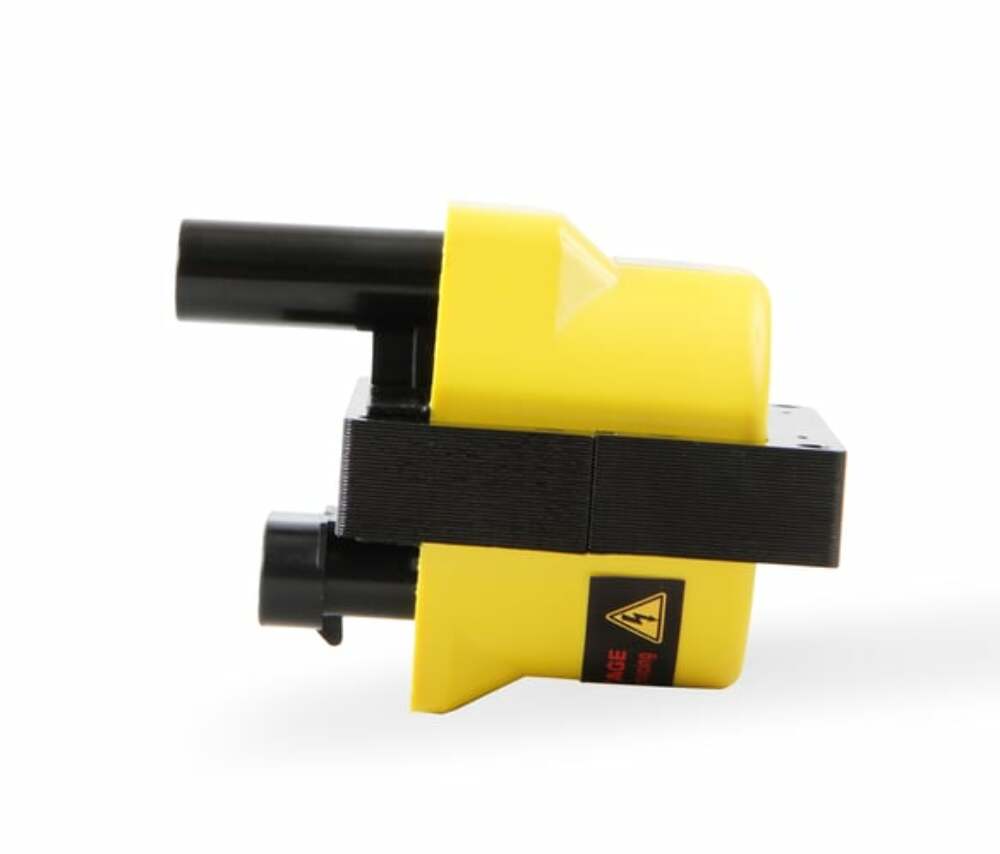

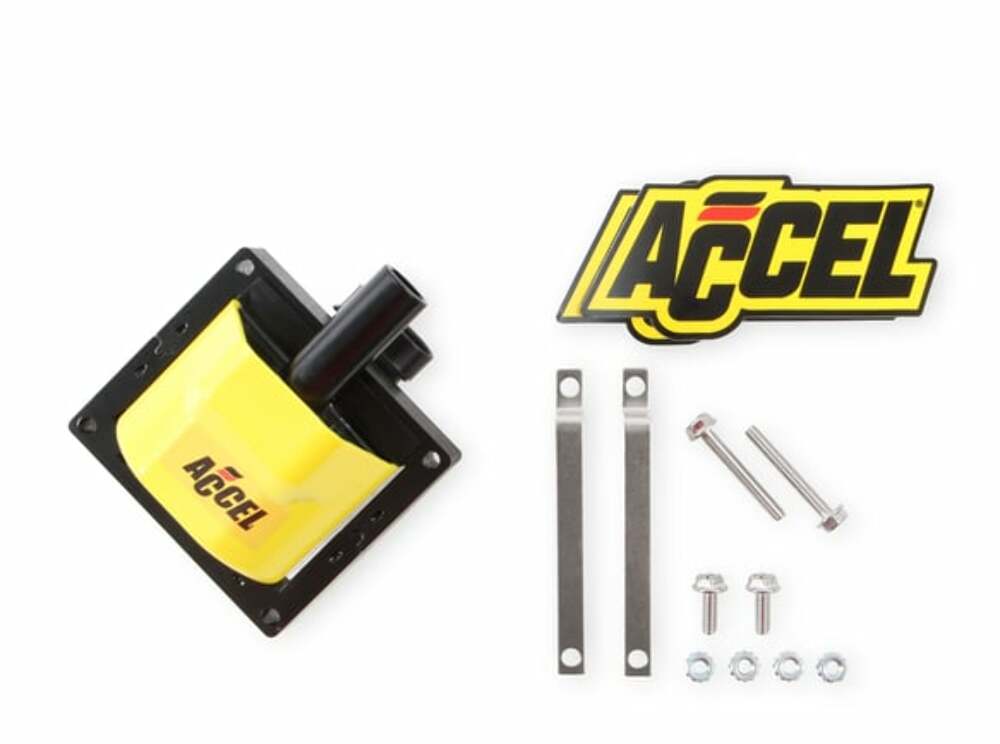

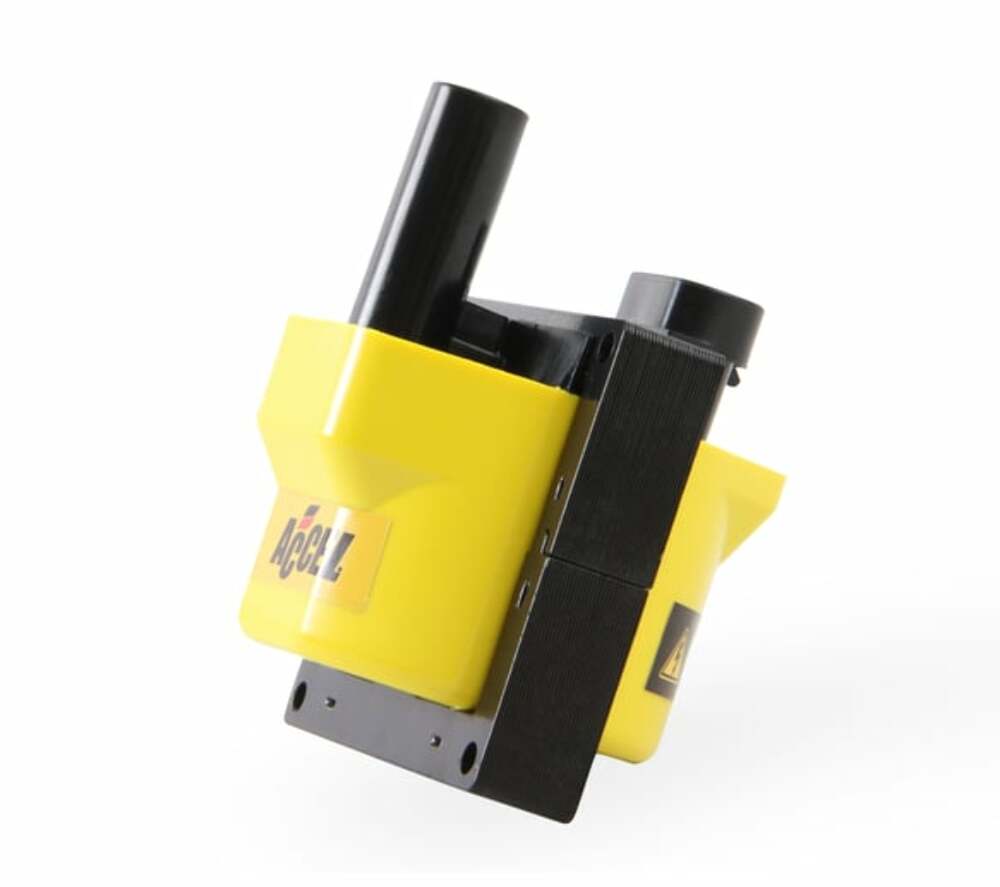

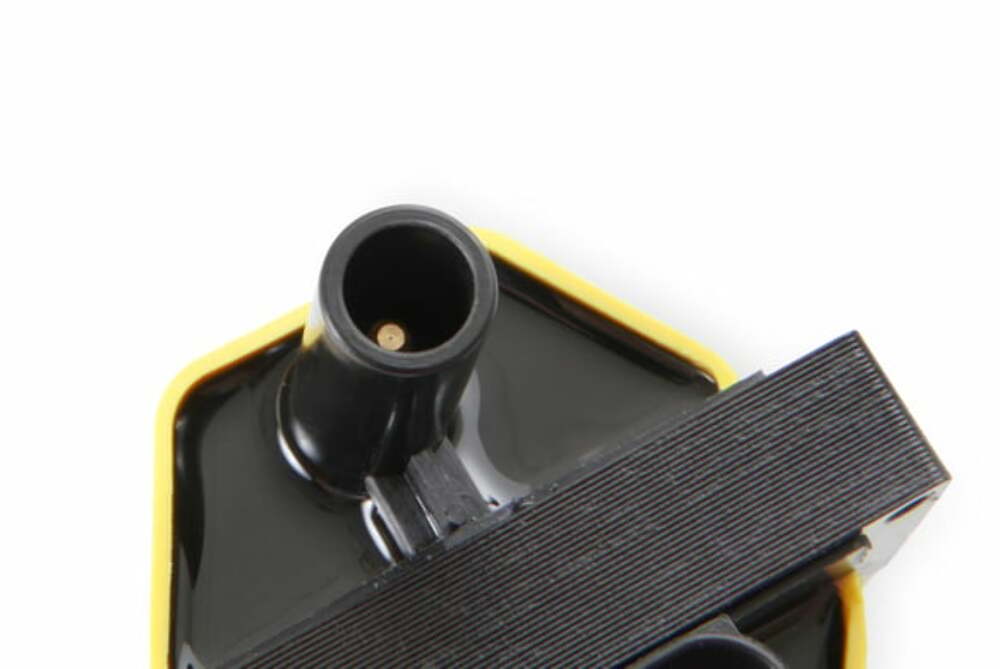

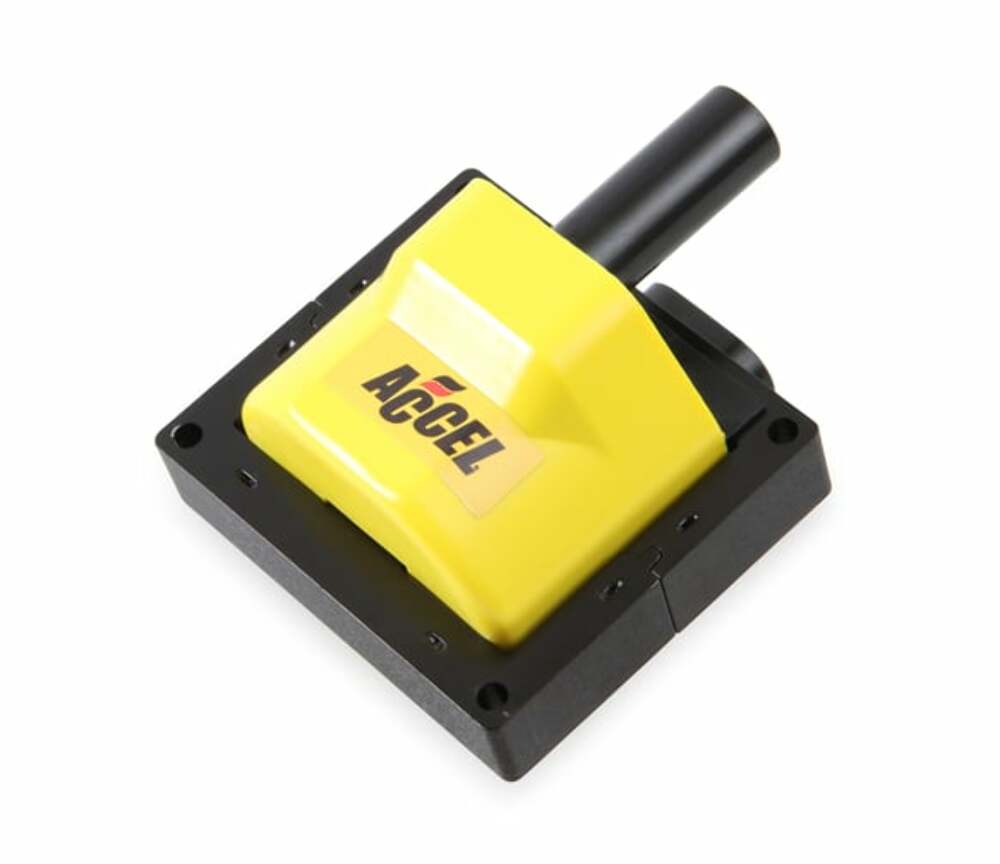

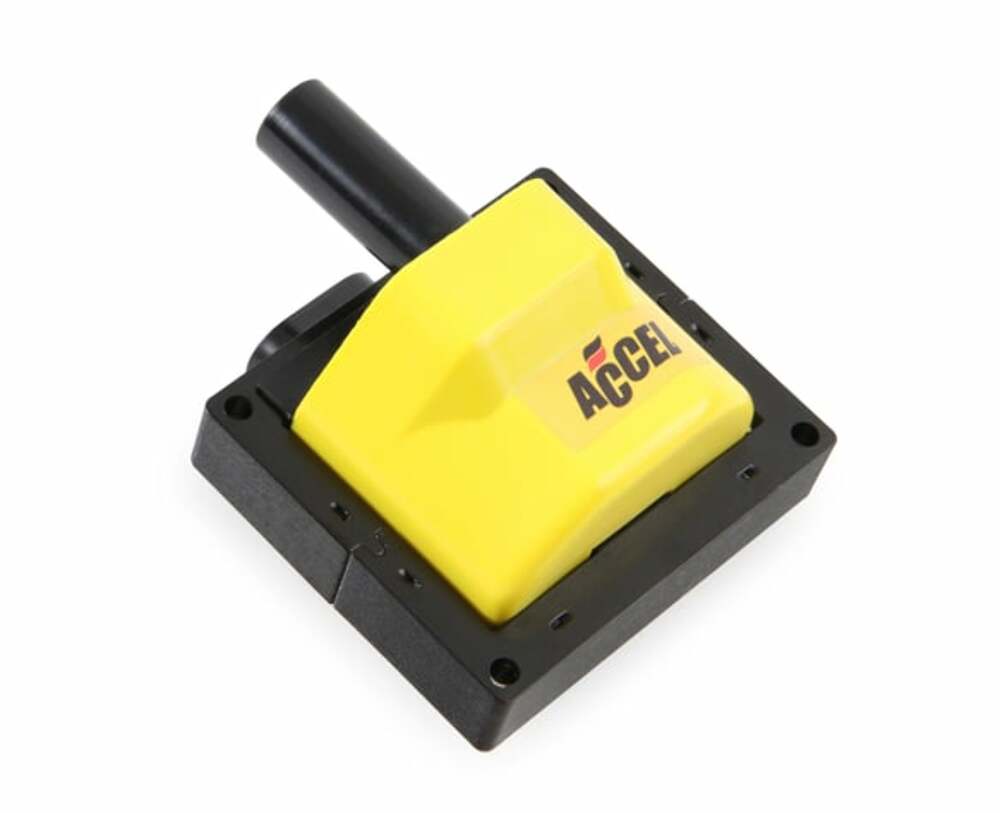

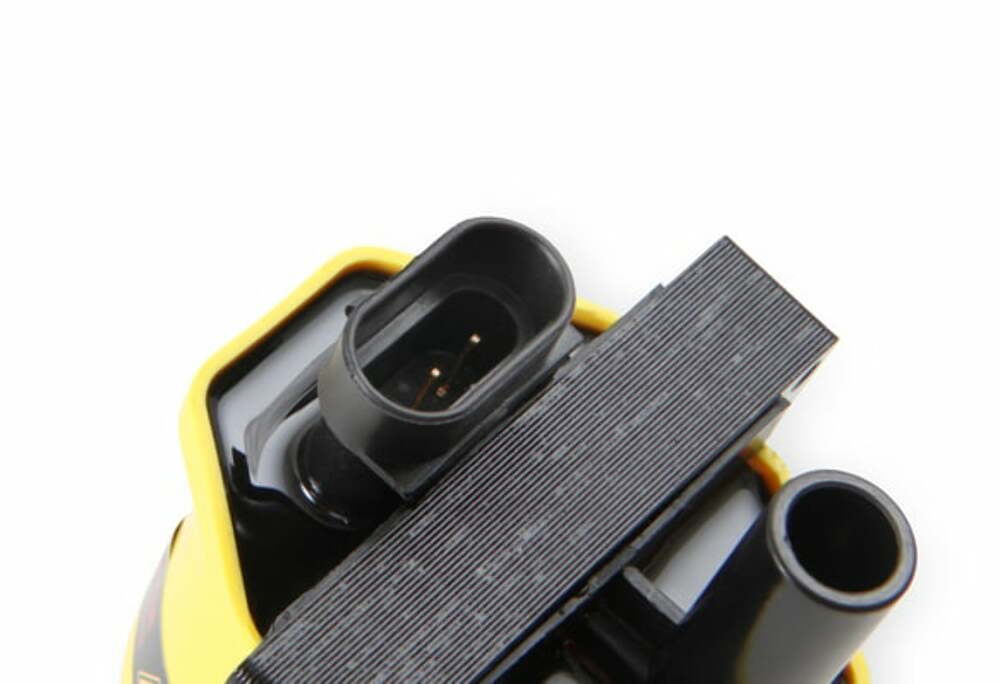

ACCEL Ignition Coil - SuperCoil-GM Vortec engine1996-2001 5.0/5.7/7.4L-140024ACC
ACCEL Ignition Coil - SuperCoil-GM Vortec engine1996-2001 5.0/5.7/7.4L-140024ACC
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Overview:
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.
Features:
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- Standard Motor Products SMP Dr-49
- MSD 8231
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2001 | Chevrolet | C3500HD | 496/8.1 V8 | |
| 2001 | GMC | C3500HD | 496/8.1 V8 | |
| 1996 - 2000 | GMC | Savana 3500 | 454/7.4 V8 | |
| 1996 - 2000 | GMC | K2500 | 454/7.4 V8 | |
| 1996 - 1999 | GMC | K2500 Suburban | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | Express 3500 | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | K2500 | 454/7.4 V8 | |
| 1996 - 1999 | Chevrolet | K2500 Suburban | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | K3500 | 454/7.4 V8 | |
| 1996 - 1999 | Chevrolet | C2500 Suburban | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | C3500 | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | C3500HD | 454/7.4 V8 | |
| 1996 - 2000 | GMC | C3500HD | 454/7.4 V8 | |
| 1996 - 2000 | GMC | K3500 | 454/7.4 V8 | |
| 1996 - 1999 | Chevrolet | P30 | 454/7.4 V8 | |
| 1996 - 2000 | Chevrolet | C2500 | 454/7.4 V8 | |
| 1996 - 2000 | GMC | C2500 | 454/7.4 V8 | |
| 1996 - 1999 | GMC | C2500 Suburban | 454/7.4 V8 | |
| 1996 - 2000 | GMC | C3500 | 454/7.4 V8 | |
| 1996 - 2001 | GMC | Savana 2500 | 350/5.7 V8 | |
| 1996 - 2001 | GMC | Savana 3500 | 350/5.7 V8 | |
| 1996 - 1998 | GMC | K1500 | 350/5.7 V8 | |
| 1996 - 1999 | GMC | K1500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | GMC | K2500 | 350/5.7 V8 | |
| 1996 - 1999 | GMC | K2500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | GMC | K3500 | 350/5.7 V8 | |
| 1996 - 2001 | Chevrolet | Express 2500 | 350/5.7 V8 | |
| 1996 - 2001 | Chevrolet | Express 3500 | 350/5.7 V8 | |
| 1996 - 1998 | Chevrolet | K1500 | 350/5.7 V8 | |
| 1996 - 1999 | Chevrolet | K1500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | Chevrolet | K2500 | 350/5.7 V8 | |
| 1996 - 1999 | Chevrolet | K2500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | Chevrolet | K3500 | 350/5.7 V8 | |
| 1996 - 1999 | Chevrolet | C2500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | Chevrolet | C3500 | 350/5.7 V8 | |
| 1996 | Chevrolet | Corvette | 350/5.7 V8 | |
| 1996 - 1997 | GMC | Yukon | 350/5.7 V8 | |
| 2000 | GMC | Yukon | Denali | 350/5.7 V8 |
| 1996 - 1999 | Chevrolet | P30 | 350/5.7 V8 | |
| 1996 - 1999 | Chevrolet | Tahoe | 350/5.7 V8 | |
| 2000 | Chevrolet | Tahoe | Limited | 350/5.7 V8 |
| 2000 | Chevrolet | Tahoe | Z71 | 350/5.7 V8 |
| 1996 - 1997 | GMC | C1500 | 350/5.7 V8 | |
| 1996 - 1999 | GMC | C1500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | GMC | C2500 | 350/5.7 V8 | |
| 1996 - 1999 | GMC | C2500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | GMC | C3500 | 350/5.7 V8 | |
| 1996 - 1998 | Chevrolet | C1500 | 350/5.7 V8 | |
| 1996 - 1999 | Chevrolet | C1500 Suburban | 350/5.7 V8 | |
| 1996 - 2000 | Chevrolet | C2500 | 350/5.7 V8 | |
| 1996 - 2001 | GMC | Savana 2500 | 305/5 V8 | |
| 1996 - 1998 | GMC | K1500 | 305/5 V8 | |
| 1998 | GMC | K2500 | 305/5 V8 | |
| 1996 - 2001 | Chevrolet | Express 2500 | 305/5 V8 | |
| 1996 - 1998 | Chevrolet | K1500 | 305/5 V8 | |
| 1998 | Chevrolet | K2500 | 305/5 V8 | |
| 1996 - 1999 | Chevrolet | C2500 | 305/5 V8 | |
| 1996 - 1997 | GMC | C1500 | 305/5 V8 | |
| 1996 - 1998 | GMC | C2500 | 305/5 V8 | |
| 1996 - 1998 | Chevrolet | C1500 | 305/5 V8 | |
| 1996 | Chevrolet | Caprice | 265/4.3 V8 | |
| 1996 - 2001 | GMC | Savana 2500 | 262/4.3 V6 | |
| 1996 - 1998 | GMC | K1500 | 262/4.3 V6 | |
| 1996 - 2001 | Chevrolet | Express 2500 | 262/4.3 V6 | |
| 1996 - 1998 | Chevrolet | K1500 | 262/4.3 V6 | |
| 1996 - 2001 | GMC | Sonoma | 262/4.3 V6 | |
| 1999 - 2000 | GMC | Sierra 1500 | 262/4.3 V6 | |
| 2001 | GMC | Sierra 1500 | SL | 262/4.3 V6 |
| 2001 | GMC | Sierra 1500 | SLT | 262/4.3 V6 |
| 2001 | GMC | Sierra 1500 | SLE | 262/4.3 V6 |
| 1996 - 1999 | Chevrolet | P30 | 262/4.3 V6 | |
| 1996 - 2001 | Chevrolet | S10 | 262/4.3 V6 | |
| 1999 - 2001 | Chevrolet | Silverado 1500 | 262/4.3 V6 | |
| 1996 - 1997 | GMC | C1500 | 262/4.3 V6 | |
| 2000 | Isuzu | Hombre | 262/4.3 V6 | |
| 1996 - 1998 | Chevrolet | C1500 | 262/4.3 V6 | |
| 1997 - 1999 | Isuzu | Hombre | 4.3 V6 | |
| 1999 | GMC | K1500 | ||
| 1996 - 2001 | Chevrolet | Express 1500 | ||
| 1999 | Chevrolet | K1500 | ||
| 1996 - 2001 | GMC | Jimmy | ||
| 1996 - 2001 | GMC | Safari | ||
| 1996 - 2001 | GMC | Savana 1500 | ||
| 1998 - 1999 | GMC | Yukon | ||
| 1996 - 2001 | Oldsmobile | Bravada | ||
| 1996 - 2001 | Chevrolet | Blazer | ||
| 1998 - 1999 | GMC | C1500 | ||
| 1999 - 2000 | Cadillac | Escalade | ||
| 1996 - 2001 | Chevrolet | Astro | ||
| 1999 | Chevrolet | C1500 |
Specs:
| Application | GM |
|---|---|
| Brand | ACCEL |
| Color | Yellow |
| Emission Code | 2 |
| Maximum Voltage | 48,000 volts |
| Peak Increase in Energy vs. OE | 0.11 |
| Primary Resistance | 0.2 Ohms |
| Product Type | Ignition Coils |
| Quantity | 1 |
| Quantity Per Pkg. | 1 |
| Secondary Resistance | 6.7 k Ohms |
| Turns Ratio | 3.83402777777778 |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day Warranty |
| Weight | 1.2 |
