2009-2013 Chevrolet Silverado Exhaust System Cat-back 817688

2009-2013 Chevrolet Silverado Exhaust System Cat-back 817688

817688-CP

$1,399.95 USD
$1,399.95 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Overview:

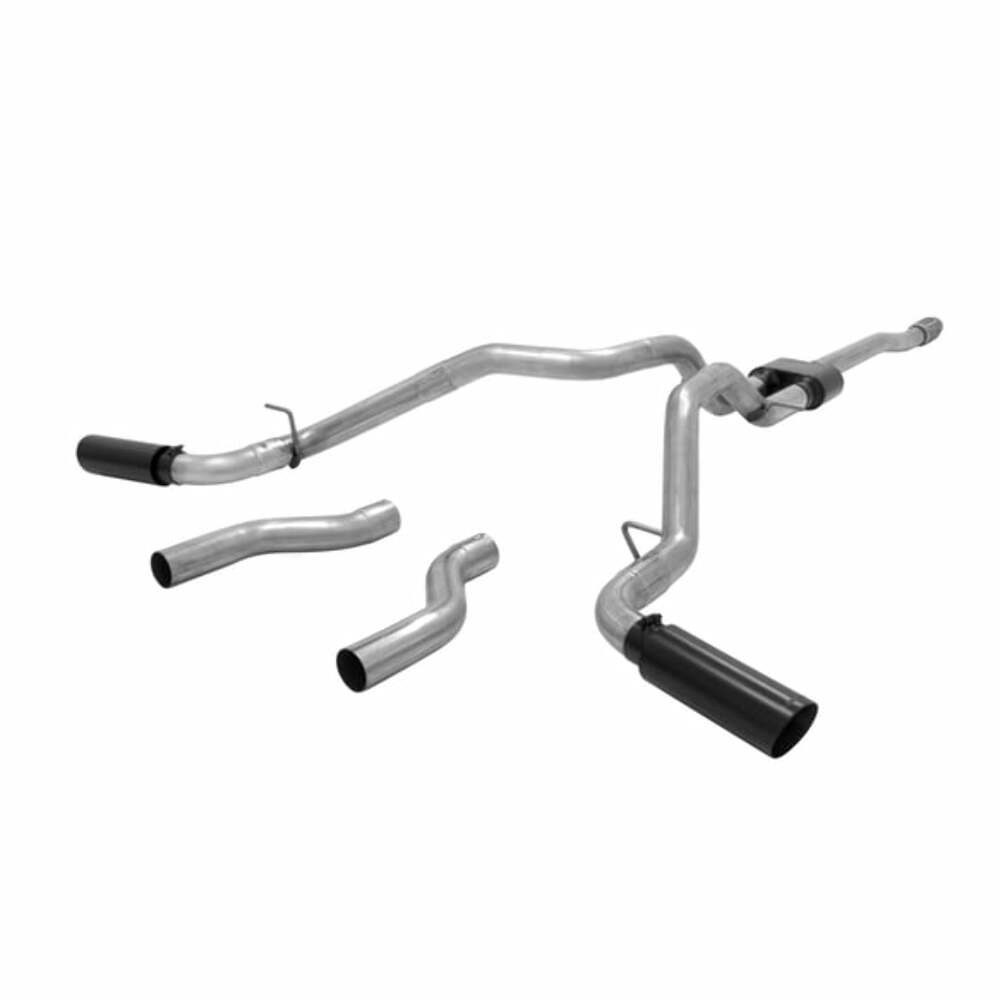

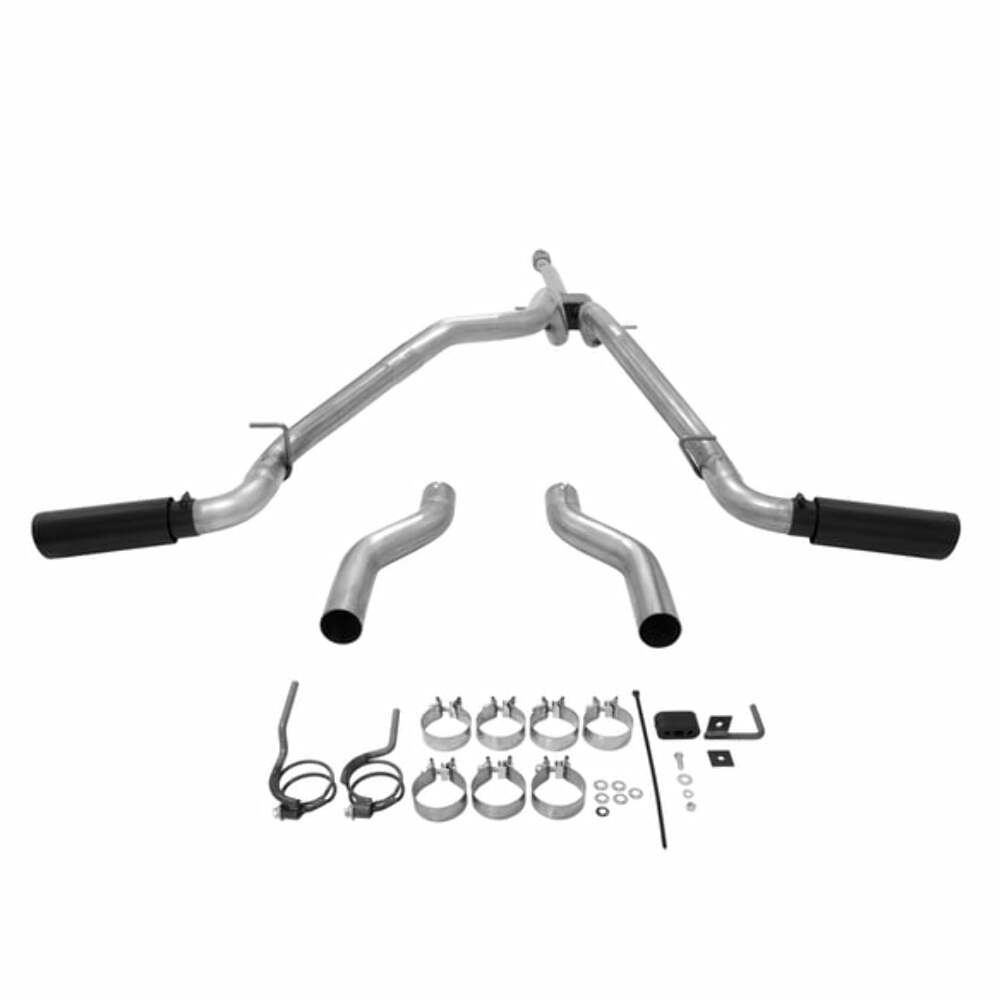

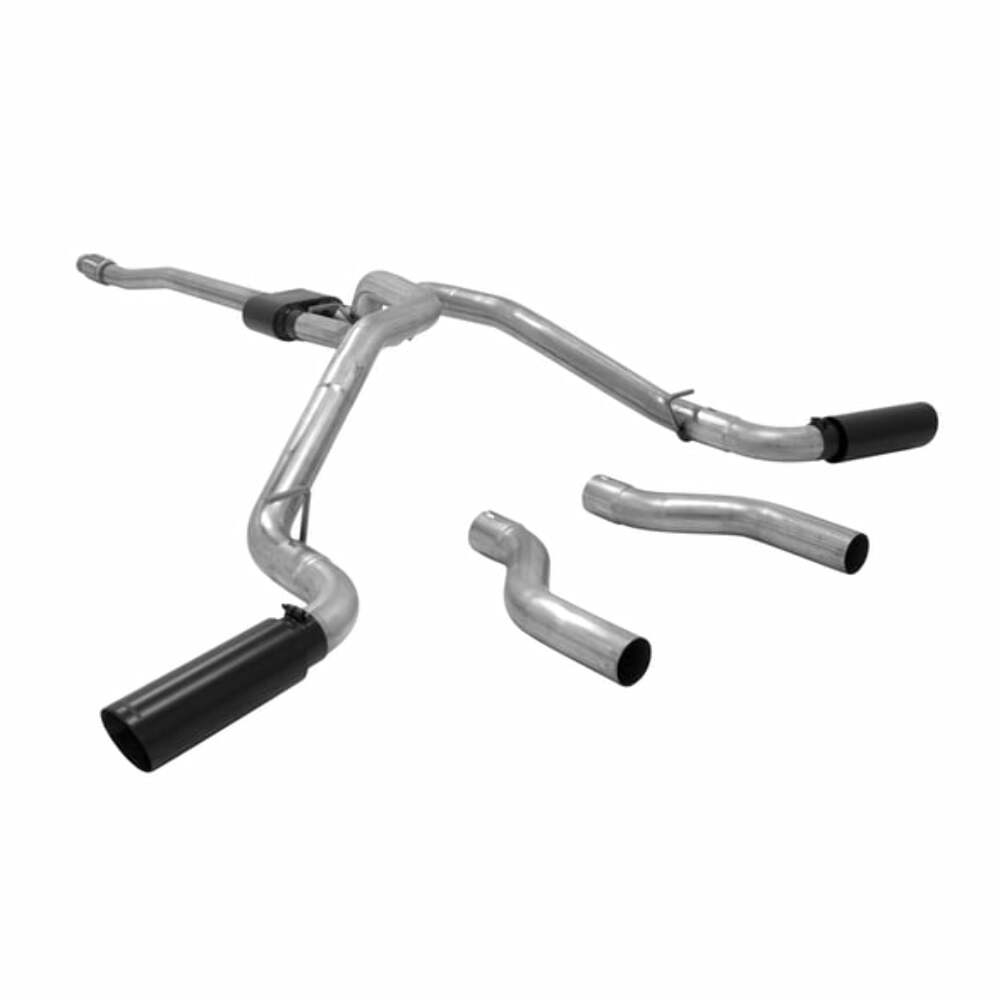

This Outlaw cat-back exhaust system is for 2009-2013 GM Silverado/Sierra 1500 trucks with the 5.3L engine and is perfect for the person looking for an aggressive sound level, both inside and outside of the truck. This bolt-on emissions-legal system features 3.00-inch mandrel-bent stainless steel tubing flowing into a Super 10 Series muffler, for a deep powerful aggressive sound. The large 3.00-inch mandrel-bent stainless steel tailpipes can be configured with your choice of exit locations, either straight out the back under the bumper for a muscular look, or exiting out behind the rear tires on each side of the truck. The side exit tailpipes are the ideal exit location when towing a boat or RV. The tailpipes are finished off with large 4.00-inch black ceramic coated dual-wall stainless steel tips. The system includes all necessary parts and hardware for an easy installation and is covered by our Lifetime Limited Warranty. Notes: Fits all 2/4 wheel drives with 143.5 and 157.5-inch wheelbases.

Features:

  • Specially Tuned 60 Series Performance Mufflers
  • Exclusive Scavenger Series X-pipe Cross-over
  • Dyno Tuned For Maximum Performance
  • All Stainless Steel Construction
  • Lifetime Limited Warranty
  • Delta Flow Technology

    • Specs:

  • Brand: Flowmaster
  • CARB (California) Compliant: Yes
  • Catalytic Converter Included: No
  • Catalytic Converter Quantity: 0
  • Clamping Type: Flat Band
  • Clamps Included: Yes
  • Emission Code: 5
  • Exhaust Series: Outlaw
  • Exhaust Tip Color: Black
  • Exhaust Tip Connection: Clamp-On
  • Exhaust Tip Cut: Angled
  • Exhaust Tip Edge: Angle Cut
  • Exhaust Tip Finish: Black Ceramic Coating
  • Exhaust Tip Material: 304 Stainless Steel
  • Exhaust Tip Quantity: 2
  • Exhaust Tip Shape: Round
  • Exhaust Tip Wall: Double Wall
  • Exit Style: Dual Out Side
  • Finish: Natural
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Hangers Included: Yes
  • Heat Shield Included: No
  • Inlet Diameter: 3
  • Inlet Type: Flanged
  • Main Piping Diameter: 3
  • Mount Type: Flanged
  • Mounting Bracket Included: Yes
  • Muffler Body Height: 4
  • Muffler Body Length: 6.5
  • Muffler Body Material: 409 Stainless Steel
  • Muffler Body Shape: Oval
  • Muffler Body Width: 9.5
  • Muffler Finish: Black High-Temperature Paint Finish
  • Muffler Flanged Inlet: No
  • Muffler Flanged Outlet: No
  • Muffler Included: Yes
  • Muffler Inlet Connection: Slip-Fit
  • Muffler Inlet Inside Diameter: 3
  • Muffler Inlet Outside Diameter: 3
  • Muffler Outlet Connection: Slip-Fit
  • Muffler Outlet Quantity: 2
  • Muffler Part Number: Kit Only
  • Muffler Quantity: 1
  • Muffler Series: Super 10 Series
  • Muffler Type: Reflection
  • Pipe Color: Silver
  • Pipe Material: 409 Stainless Steel
  • Sound Level: Aggressive
  • Spring Bolt Kit Included: No
  • Tail Pipe Outlet Outside Diameter: 3
  • Tail Pipe Quantity: 2
  • Tail Pipe Tapered Outlet: No
  • Tip Logo: Embossed
  • Type: Cat-Back
  • Valve Included: No
  • Valve Type: Not Applicable
  • Part Number: 817688

    • Applications:

    • 2009-2013 Chevrolet Silverado 1500 325 CID
    • 2009-2013 GMC Sierra 1500 325 CID

    Emissions:

    • This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
